ABB Relion 620 Series - Uploading DFR Records

GUID-884BA4F7-E528-4E33-A4AD-FFBCFA6D46F0-ANSI V1 EN

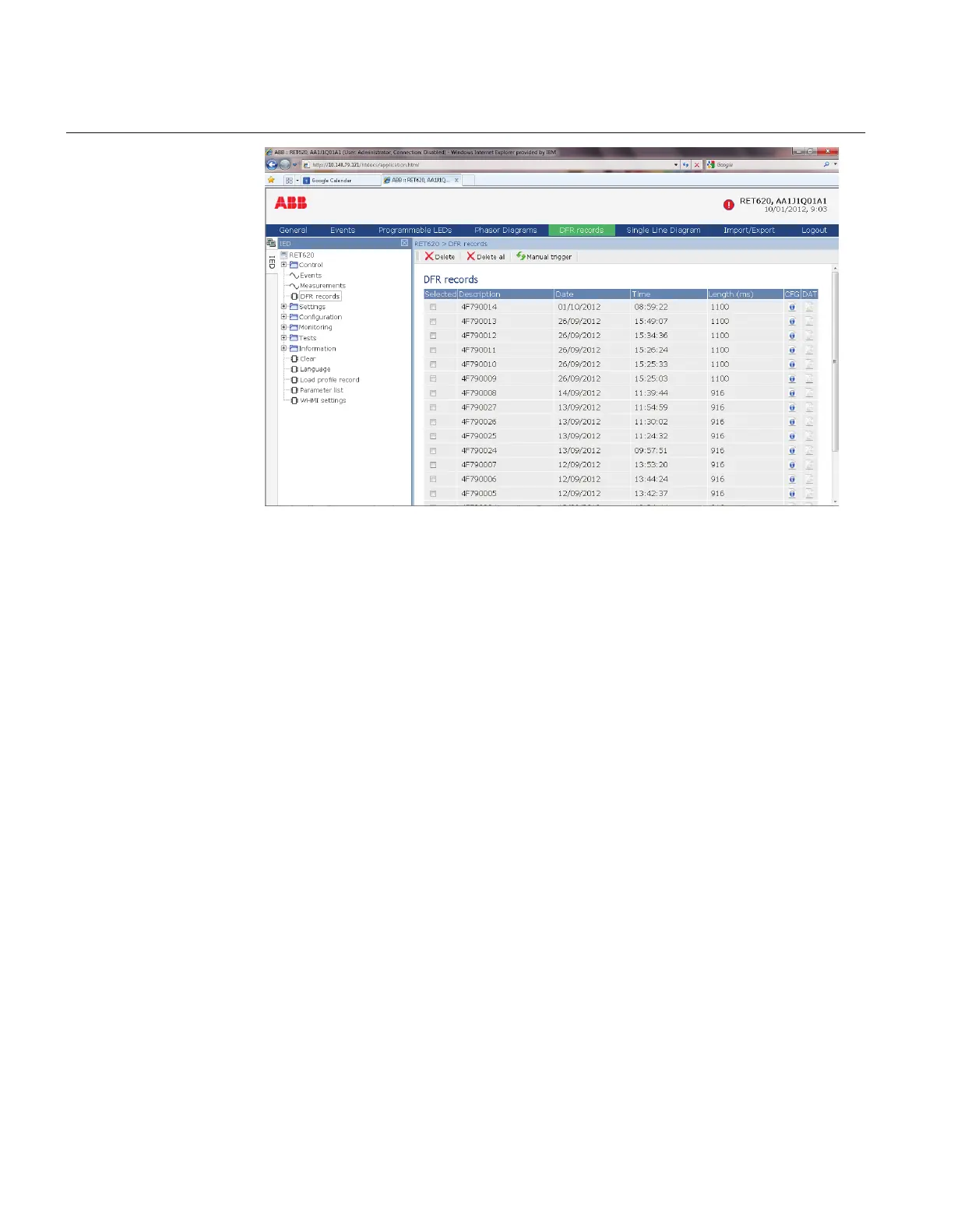

Figure 46: Selecting DFR records view
4.2.12.1 Uploading DFR records
1. Click DFR records on the menu bar.
2. To upload a DFR record, click the icons in the CFG and DAT columns of the record.
Section 4 1MAC456939-IB D
Using the HMI
68 620 series ANSI
Operation Manual
