5.3 Identifying device
The Information menu includes detailed information about the device, for example,
revision and serial number.
1. Select Device on the menu bar.
2. Select Information.
3. Click a submenu to see the data.

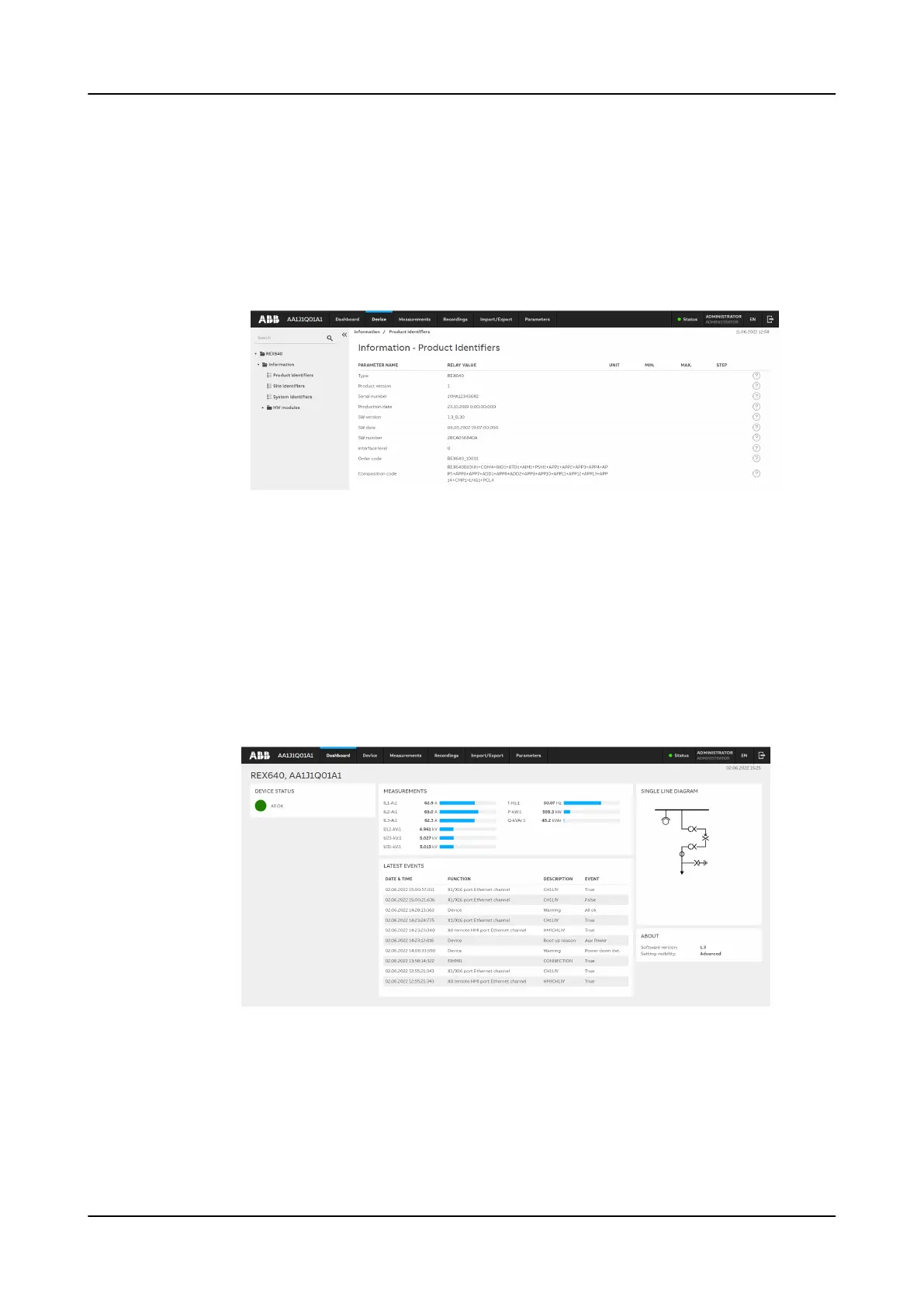

Figure 44: Viewing device information
5.4 Viewing dashboard
The Dashboard view is active automatically after logging in to WHMI and provides
an overview of the protection relay including, for example, the device status,
measurements, single-line diagram and latest events.
• Select Dashboard on the menu bar to view the dashboard.
Figure 45: Viewing dashboard
5.5 Viewing self-supervision
1. Select Device on the menu bar.
