5. In the Custom dialog, select the phasors to be monitored and click Close.

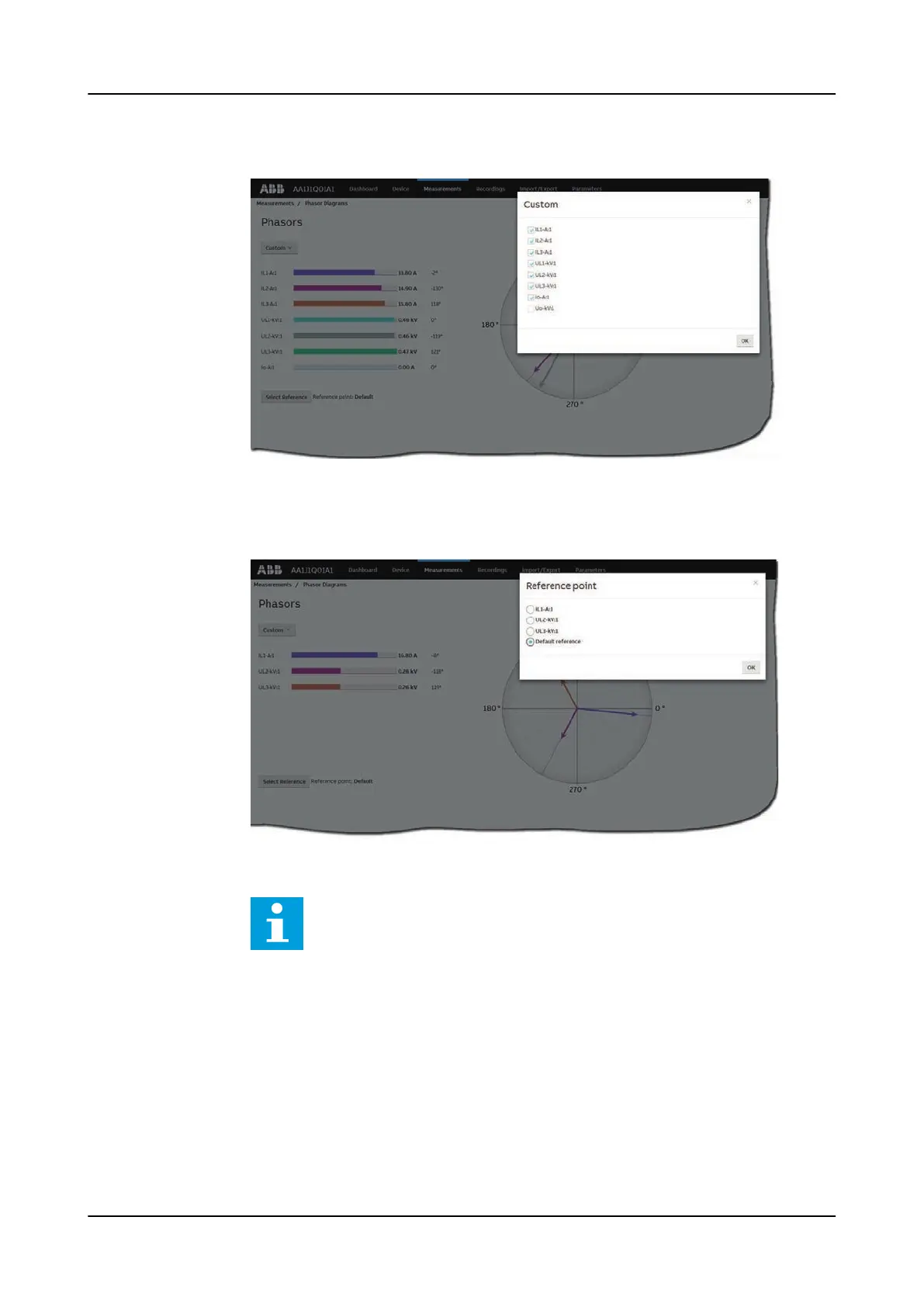

Figure 56: Editing custom phasor list
6. Click the Select reference button to select a reference phasor and then click
Close.
Figure 57: Selecting the reference phasor
WHMI measurements and phasor diagrams follow LHMI definitions
and can be edited with Graphical Display Editor in PCM600.
5.9 Viewing monitoring
1. Select Device on the menu bar.
2. Select Monitoring from the drop-down list.
1MRS759118 D
Using Web HMI
REX640
Operation Manual
69
