10.3 Interfaces
10.3.1 Service interface
Ethernet for SynView
Bridgeable distance 100 m
10.3.2 Interface for time synchronization
Time synchronization RS232
Pin assignment 2: TXD (not connected)
3: RXD
5: GND

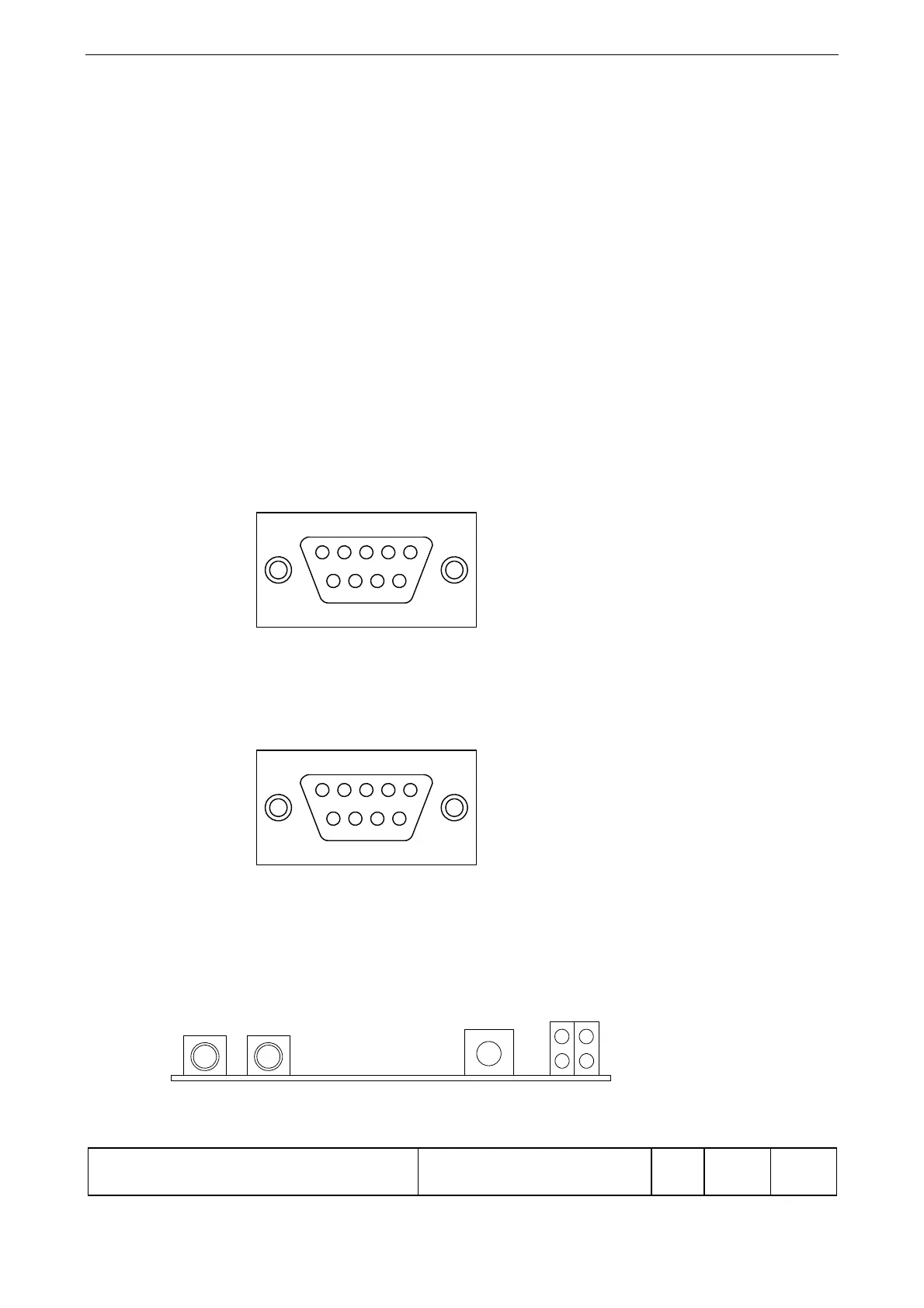

10.3.3 Operating interface
Modbus RTU
Pin assignment:
The transmission medium for the Modbus RTU connection
is a two-wire twisted copper cable.
1: DE [RS485]
2: RS232-RX
3: RS232-TX
4: +5 V bus
5: Ground bus
6: RS485 A-line
7: RS485 B-line
8: Not used
9: Not used
PE: Shield
Profibus DP
Pin assignment:
The transmission medium for the Profibus DP connection is
a two-wire twisted copper cable.
1: Not used
2: Not used
3: B-line
4: RTS (Request to send)
5: Isolated Ground bus
6: Isolated +5 V bus
7: Not used
8: A-line
9: Not used
PE: Shield
Lon-Bus
The optical fibre connection is made using the following
pair of connectors:
HFBR-2412 and
HFBR-1414
1432
6
5
987
1432
6
5
987
LEDsLWL-Anschluss Service-Taster
