4.3.9 Configuration IEC 61850

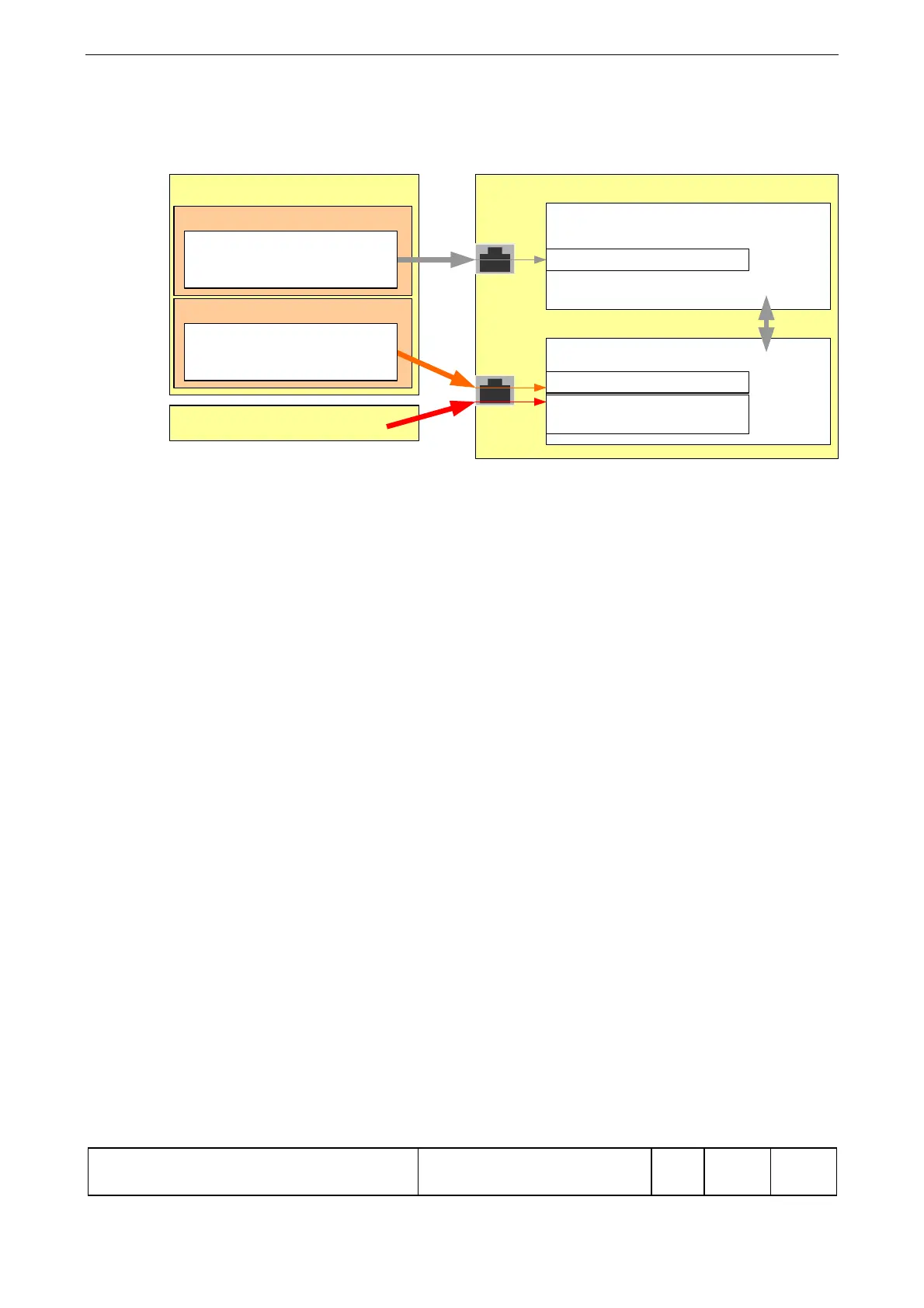

The IEC 61850–Interface has two IP-addresses, the Service IP-address for the
configuration and the operating IP-address for the actual IEC 61850-Application.
Service PC
SYN61850Config-Tool
SynView
SYNCHROTACT 5
IEC 61850 Communication
Synchronizing process
Synchronizing parameters, actual
values, event recorder, transient
recorder
SynView
IEC 61850
IEC 61850 network
Stack configuration SCD => CCF
IP address handling
PEC80 FW handling
Service IP-address
Operating IP-address (IEC 61850)
defined by the SCD file
S10001
IP-address
The Service IP-address is used for the configuration of the IEC 61850-Application, resp.
downloading of the SCD-file.
The service IP-address can be read out by means of the scan function of the
SYN61850Config-Tool (see chapter 7.4.3).
If necessary, the address can be adapted by means of the SYN61850Config-Tool.
The Factory Default Service IP-address is configured as follows:
IP-address: 10.10.10.11
Subnet Mask 255.255.255.0
Each change requires a restart (Power up)
The Service IP-address must not be re-used in the connected subnet. If there are two or
more SYNCHROTACT 5 devices in the same subnet, the IP-addresses must be
different.
The operating IP-address for IEC 61850 is application-specific and is defined in the
SCD-File.
