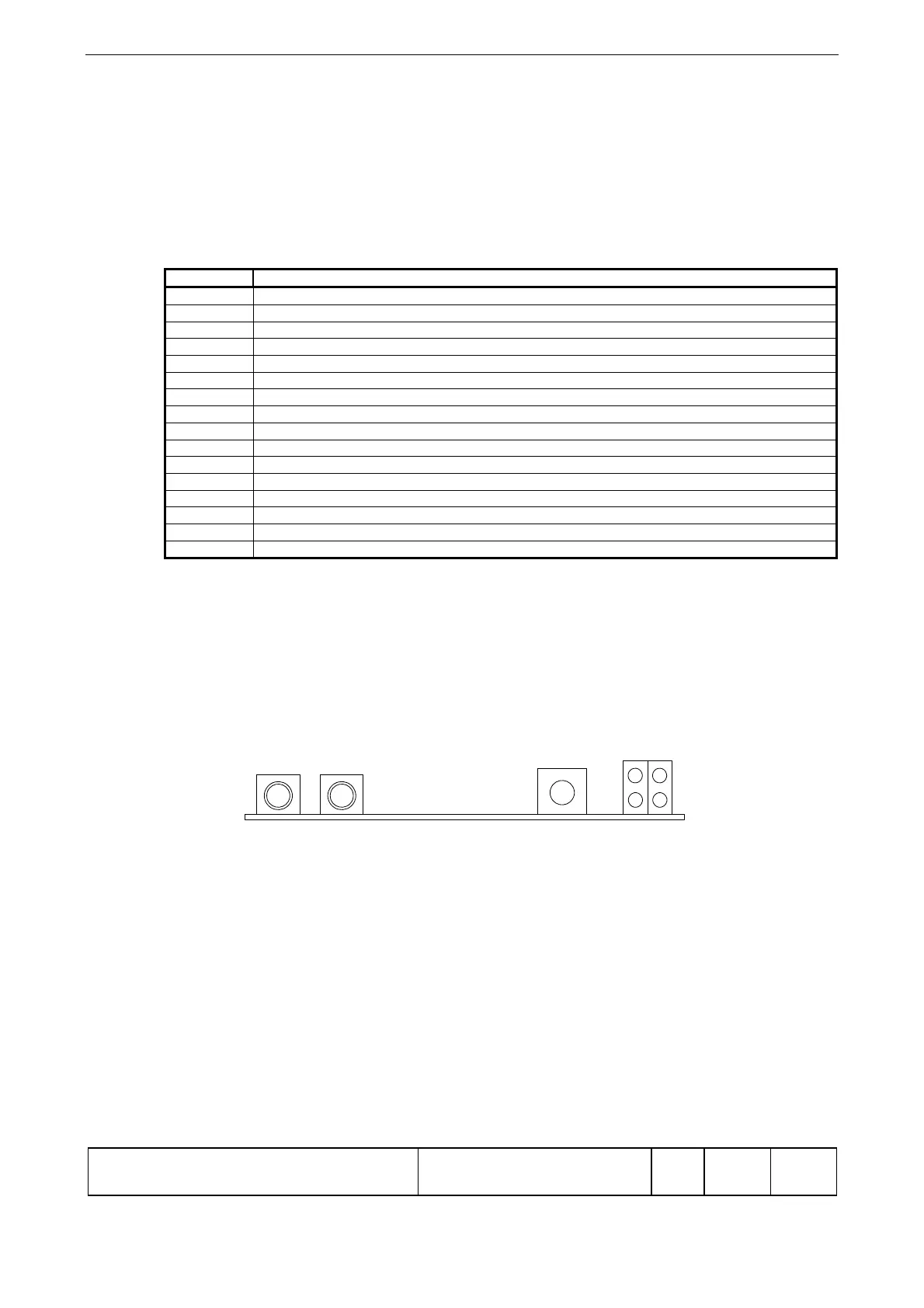

Operating Instructions SYN 5201/SYN 5202
Document No Art Part Language Revision page
abb
ABB Switzerland Ltd
3BHS109762 E01
en D 58
Template: CHIND Techn doc stand, A4 P de, R1.DOT; Filename: 3BHS109762E01 D.doc; Print: 12/6/2011 5:48:00 PM; Save: 12/1/2011 2:37:00 PM; CHIND No. 3BHS109763 ZAB D14 Rev. -; I-Q
It is practical to read the signals for the addresses 4 to 11 by polling, since otherwise the
insufficient steadying of the measured values places a heavy load on the fieldbus (worst
case: a telegram every 20 ms). The measured value in Operating status is of the
greatest interest.
Address 13: The information is not generally of importance for transmission via the
fieldbus, since the software in the device does not change.
Address 29 (Index 28):
Bit Binary signal
0 Start
1 Stop
2 Release DB
3 Reset (cancel fault and set to "READY")
4 --
5 --
6 --
7 --
8 configurable digital input 1 (only if SYN 5014 is used)
9 configurable digital input 2 (only if SYN 5014 is used)
10 configurable digital input 3 (only if SYN 5014 is used)
11 configurable digital input 4 (only if SYN 5014 is used)
12 configurable digital input 5 (only if SYN 5014 is used)
13 configurable digital input 6 (only if SYN 5014 is used)
14 configurable digital input 7 (only if SYN 5014 is used)
15 --
4.3.6 Configuring Lon-Bus
The transmission rate is 1.5 MBaud.
Service key
The Service key is required for configuration. By pressing the key, the request for the
configuration data is sent to the master. The latter then sends the corresponding data to
the SYNCHROTACT slave.
The Service key is not required during normal operation.
Note
Note
LEDsLWL-Anschluss Service-Taster
