Operating Instructions SYN 5201/SYN 5202
Document No Art Part Language Revision page
abb
ABB Switzerland Ltd
3BHS109762 E01
en D 18
Template: CHIND Techn doc stand, A4 P de, R1.DOT; Filename: 3BHS109762E01 D.doc; Print: 12/6/2011 5:48:00 PM; Save: 12/1/2011 2:37:00 PM; CHIND No. 3BHS109763 ZAB D14 Rev. -; I-Q
2.4 Operating statuses, operating modes and sequences of the
synchronization process
2.4.1 Operating statuses
No. Status LED Remarks
1
Blocked with
error
BLOCKED &
ERROR
There is a fault, the device is blocked
2
Blocked
without error
BLOCKED
The device is in setting mode or in test mode, i.e.
in safe condition for commissioning and
maintenance:
Setting mode: no commands are given
Test mode :
TEST mode (configurable by means of digital
inputs and outputs): Test run of
synchronization in which synchronization takes
place normally by means of adjusting
commands, but the paralleling command is
sent via a configurable relay rather than the
command relay.
TEST t on (parameter): paralleling command
is deliberately given
TEST U-Match (parameter): voltage adjusting
commands are deliberately given
TEST f-Match (parameter): frequency adjusting
commands are deliberately given.
3
Ready
READY
Ready for operation
4
Operating
OPERATING
Synchronizing process is running

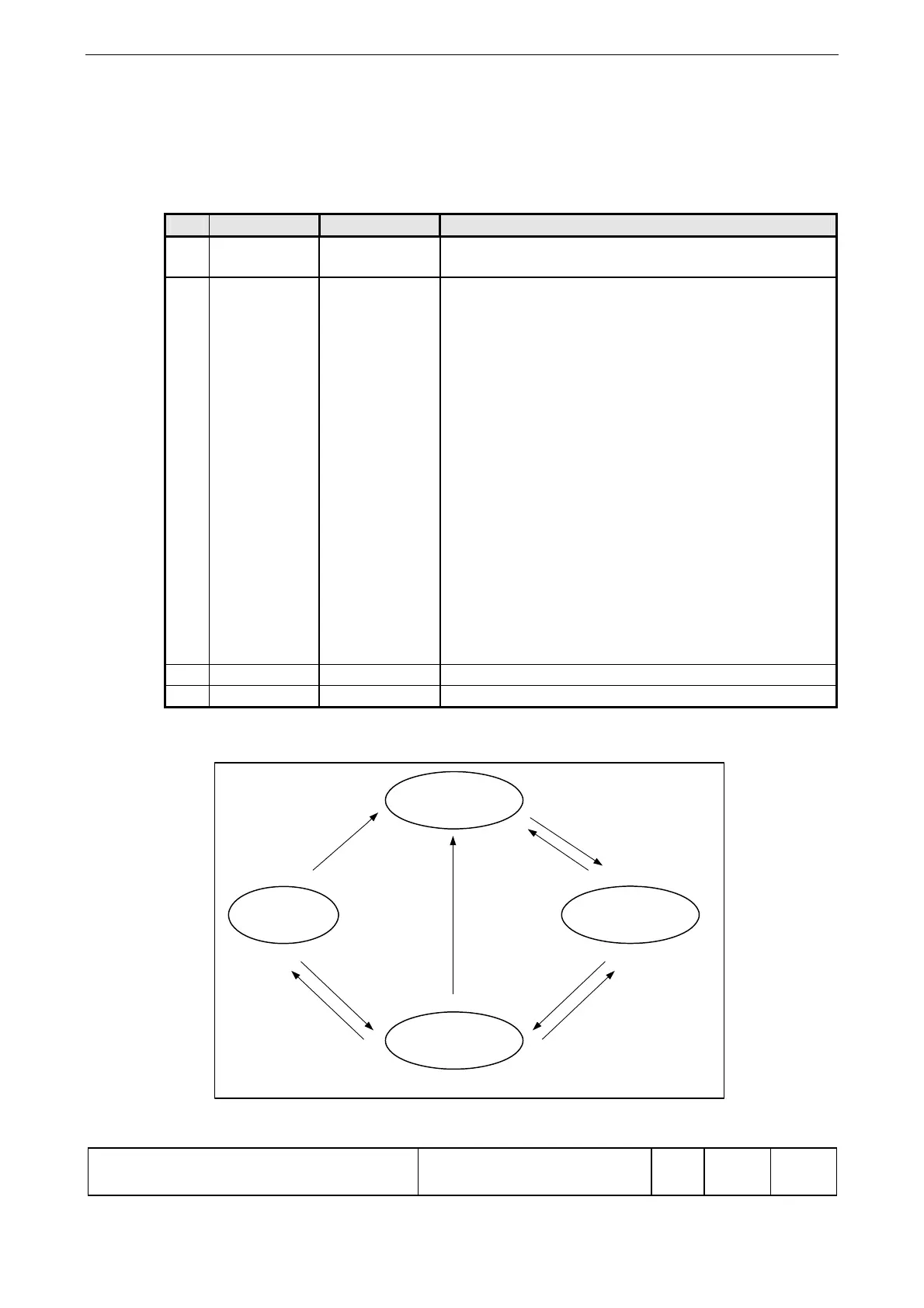

The four operating statuses can be regarded as levels. It is only possible to change from
one level to another through the following events/manipulations:
1
S00009
2
3
Blocked without fault
BLOCKED
READY
Acknowledge
fault
Stop
Detection of
a fault
'Start'
Synchronization
process
Command
’Ready’ or
stop the operating
mode TEST
Parameter change
Select operation
mode TEST
Detection of
a fault
Detection of
a fault
OPERATING
4
1
Blocked with fault
BLOCKED & ERROR
