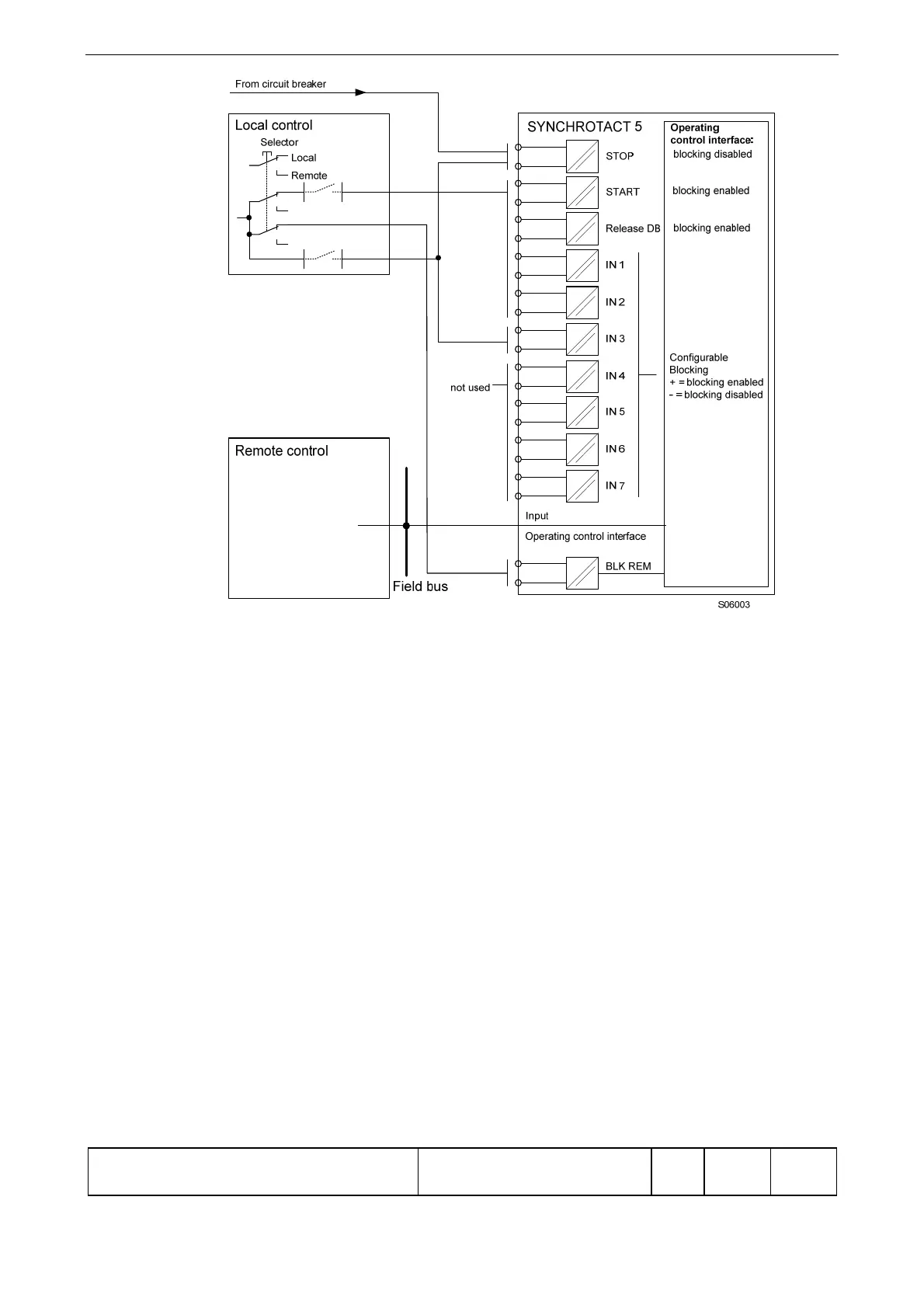

With the conventional control, a configurable input can be used for external reset
function. As a condition, a device with 7 parameter sets has to be used and as a result,
a maximum of 6 parameter sets can be used only. With the operating interface, no
physical input is required, i.e., a device with one parameter set is enough for the
external reset and in case of 7 parameter sets there are no restrictions.
Note
