Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Disassembly and assembly
8
Dismantling and installing the turbine
diffuser and nozzle ring
8.6
Page 102
© Copyright 2016 ABB.
All rights reserved.
December 2016 HZTL2481_EN Revision B


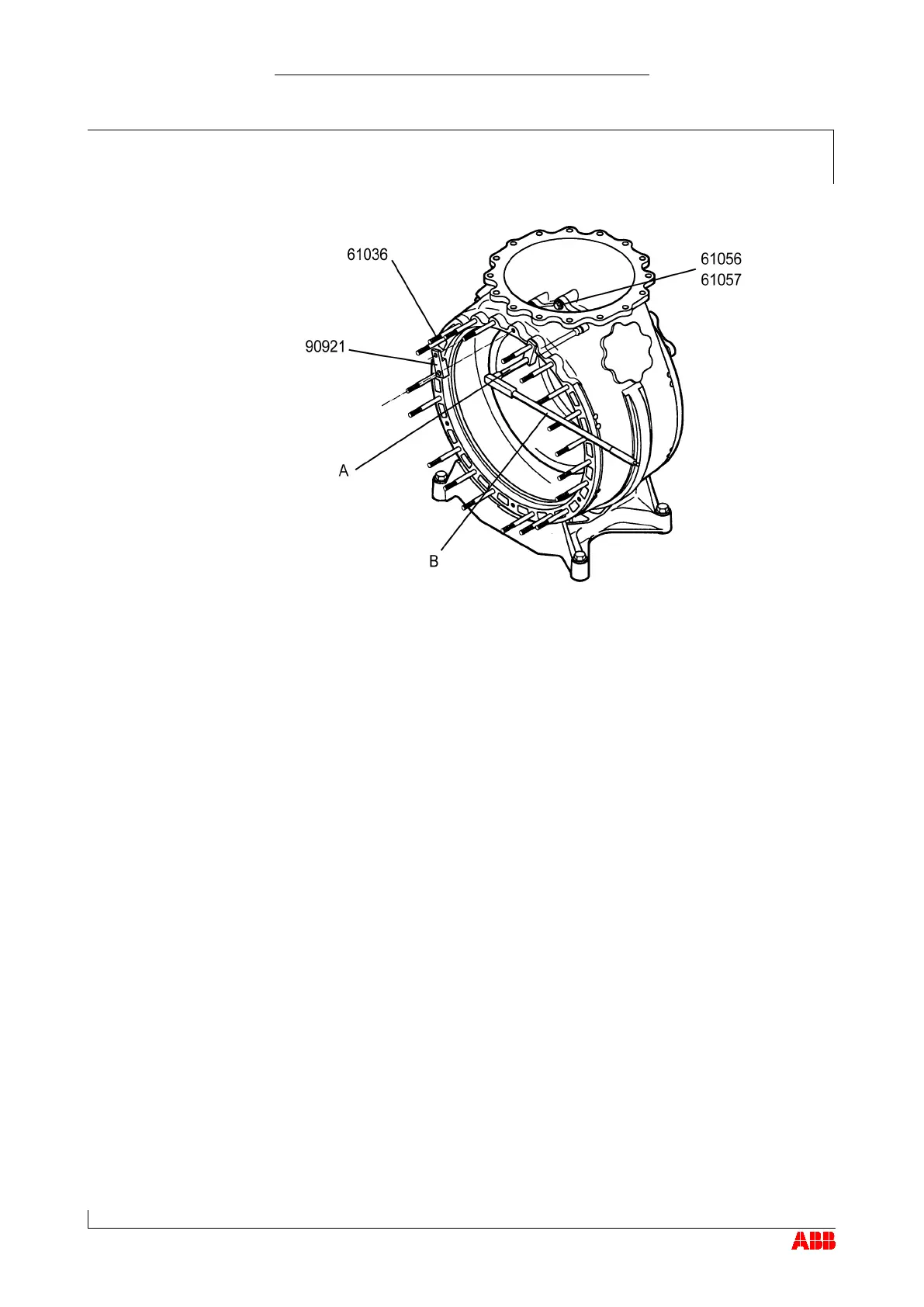

Position clamp (90921) over stud (61036) until it lies flat against inner
radius of gas outlet casing.
 Insert extension (A) of torque spanner (B) through hole in clamp and
loosen screws (61056) (61057) one after other.
 Do not yet remove the screws (61056) and Verbus Ripp® washers
(61057).
