ABB TPL73-A30 - Fit Cover Plate

Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Taking out of operation at short notice
9

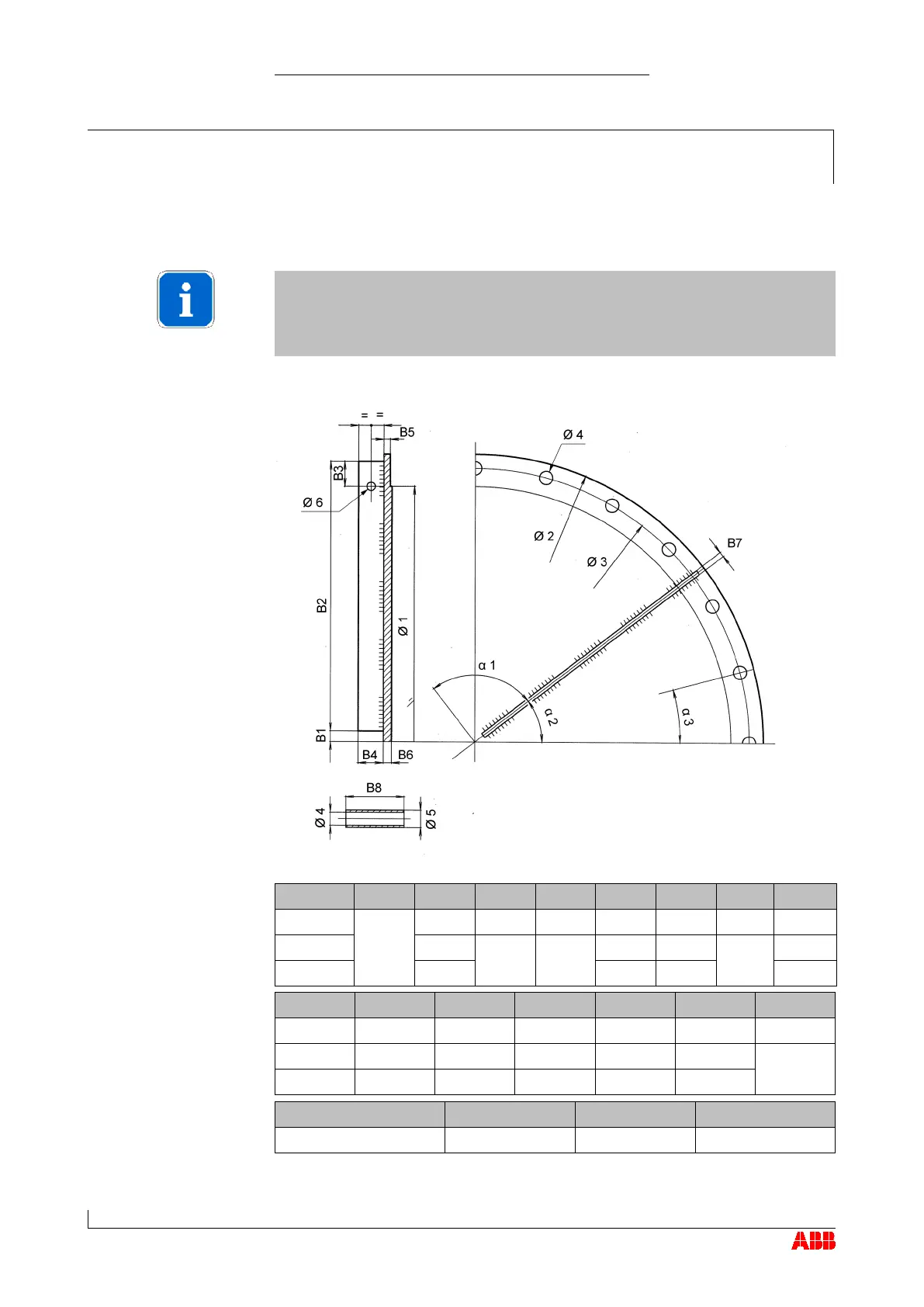

Fit cover plate
9.3
Page 129
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B
Fit cover plate
9.3
NOTICE
The cover plate (material: General structural steel, in accordance with
DIN EN 10025-2) must be manufactured in-house according to the
drawing.
Product
B1
B2
B3
B4
B5
B6
B7
B8
TPL69-A
13
385
30
30
8
10
6
84
TPL73-A 450 50 50 9 12 8 94
TPL77-A
535
9
12
107
Product
Ø 1
Ø 2
Ø 3
Ø 4
Ø 5
Ø 6
TPL69-A 726 818 779 18 25 15
TPL73-A 844 948 905 20 28 20
TPL77-A 1003 1124 1075 22 30
Product
α 1
α 2
α 3
TPL69-A … TPL77-A 4 x 90° 37.5° 24 x 15°
9.3
Cover plate dimensions
[mm]
