ABB TPL73-A30 - Cleaning the filter silencer

Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Maintenance
5
Cleaning the filter silencer
5.2
Page 48
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B
Cleaning the filter silencer
5.2

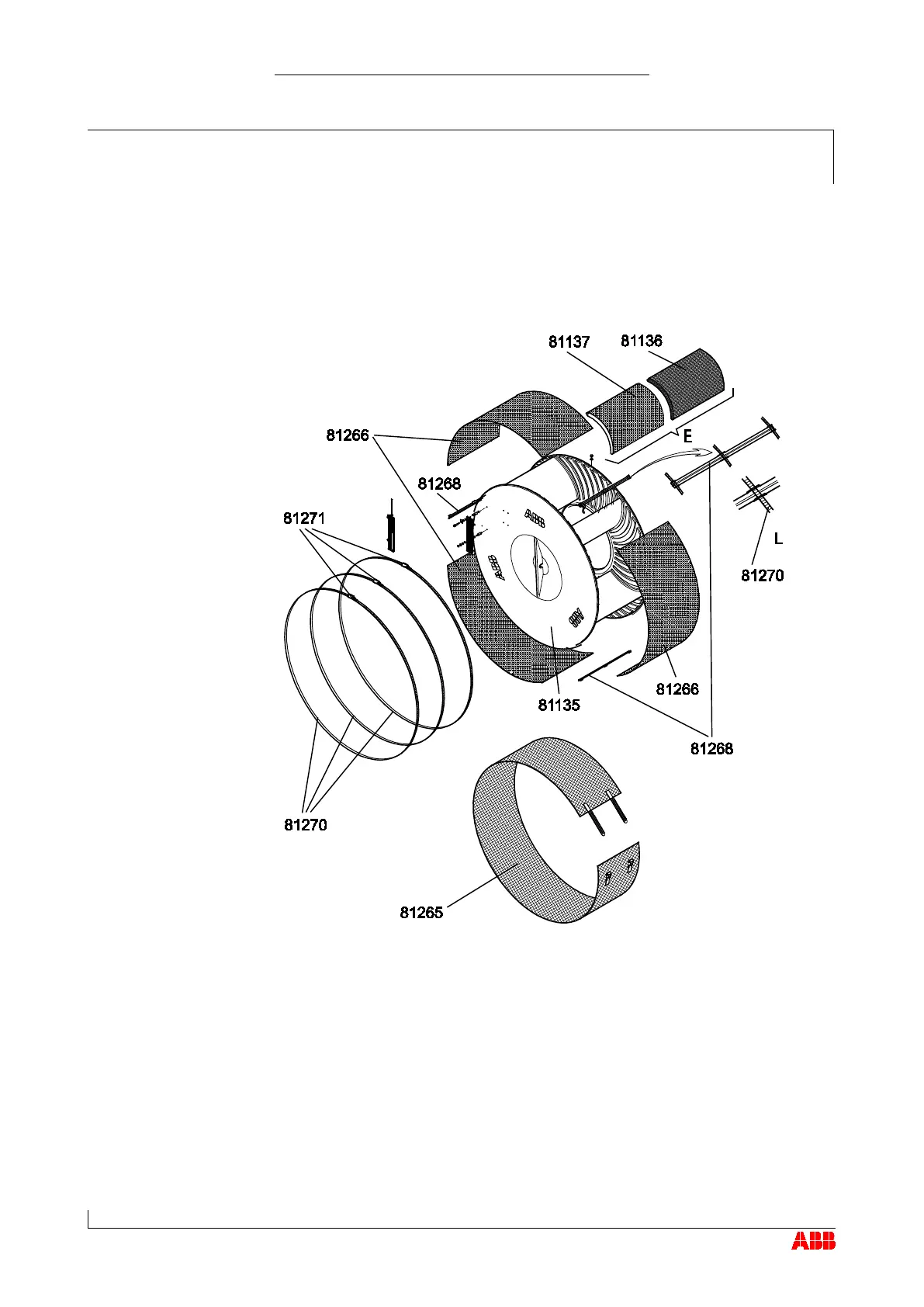

Filter silencer with tension band
81265 Filter ring (if provided) 81266 Cover grid
81270
Tension band 81136 Absorption segment
81271
Lock 81137 Sheet-metal covering
81268
Connecting strip 81135 Filter silencer body
E
Insert unit = absorption segment + sheet-metal covering fitted
5.2
5.2.1
