ABB TPL73-A30 - Removing and Fitting Filter Silencer or Air Suction Branch

Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Disassembly and assembly
8
Removing and fitting filter silencer or air
suction branch
8.3
Page 91
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B
Removing and fitting filter silencer or air suc-
tion branch
8.3
 Disconnect all air lines / ducts in accordance with engine builder’s in-
structions.
 Remove insulation where necessary.


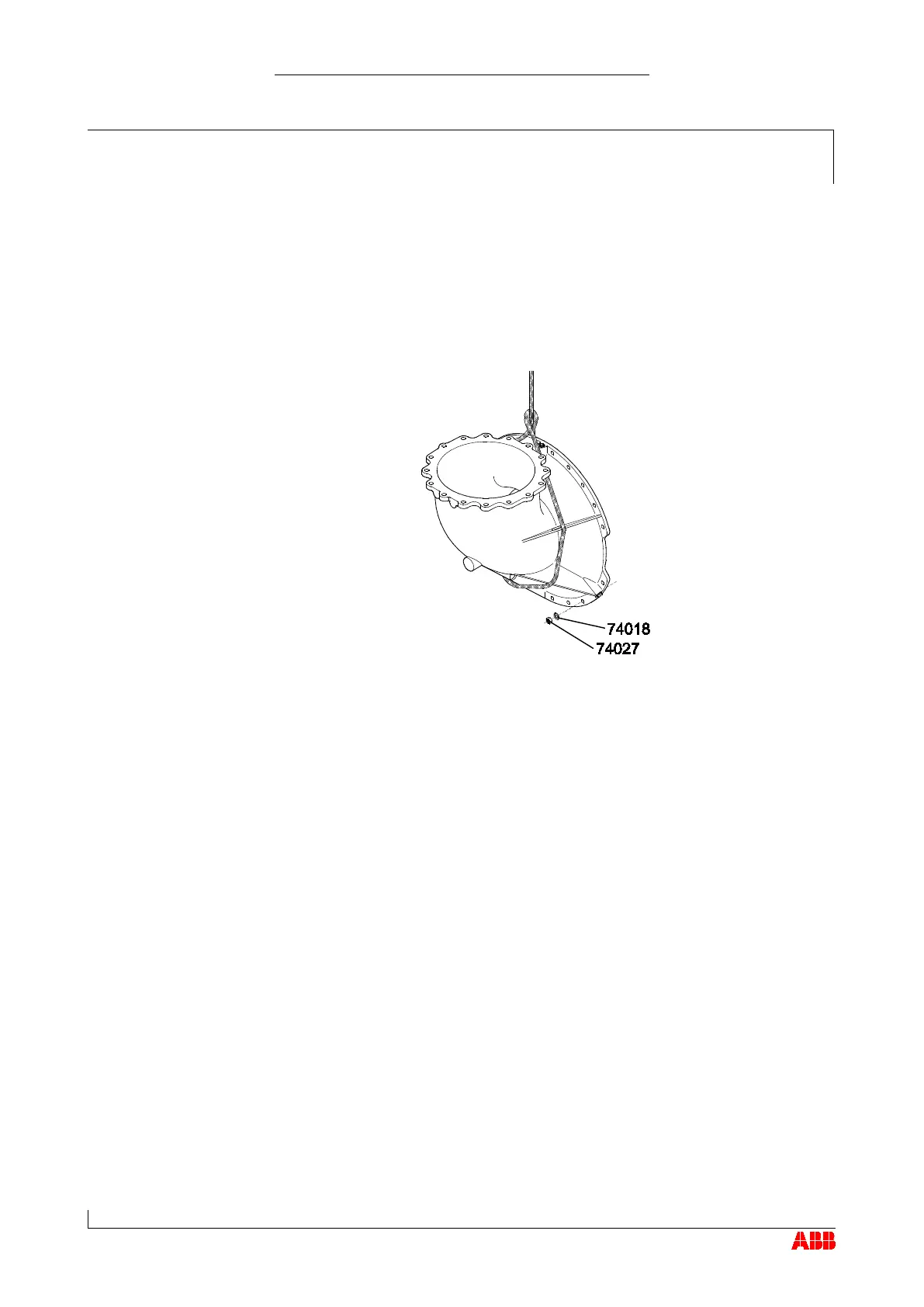

Loop lifting gear around air suction branch. Pass lifting gear through
possibly provided holes in ribs to improve stability.
 Unscrew nuts (74027) and remove together with washers (74018).
 Remove air suction branch and set down to one side.
 Install air suction branch in reverse order.
8.3
Install air suction branch
