Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Disassembly and assembly
8

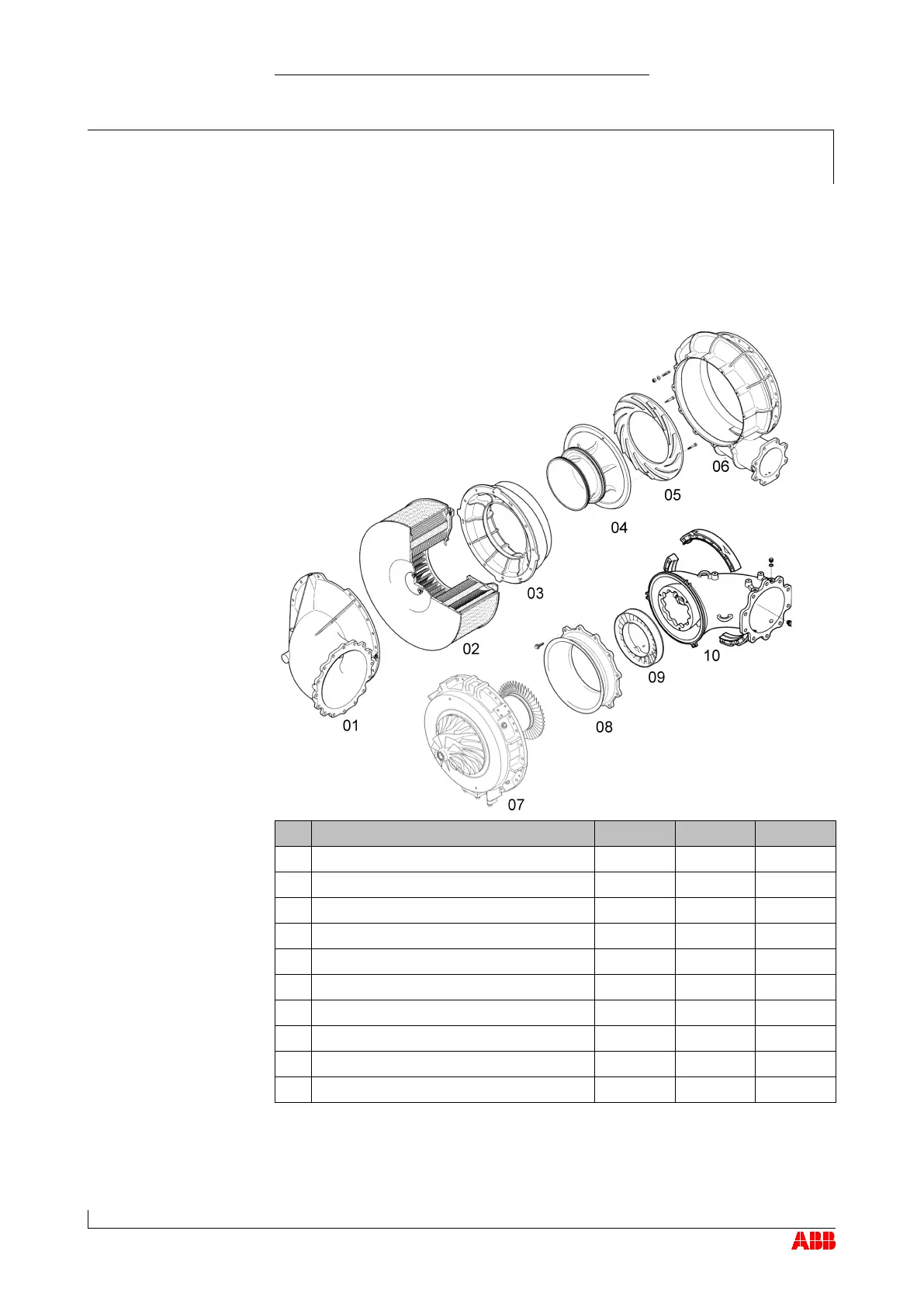

Module weights
8.2
Page 89
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B
Module weights
8.2
The specified weights of individual parts or assemblies are guides round-
ed off to the next highest value.
Description
TPL69-A
TPL73-A
TPL77-A
01 Radial air suction branch 80 140 160
02 Filter silencer 140 250 410
03 Compressor casing internal part 85 150 260
04 Wall insert 85 140 280
05 Diffuser 40 60 80
06 Compressor casing external part 180 290 480
07 Cartridge group 360 550 950
08 Turbine diffuser 50 75 150
09 Nozzle ring 17 25 45
10 Gas inlet casing, radial 55 150 250
8.2
Assemblies
Weights [kg]
