Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Disassembly and assembly
8
Removing and fitting filter silencer or air
suction branch
8.3
Page 92
© Copyright 2016 ABB.
All rights reserved.
December 2016 HZTL2481_EN Revision B
 Remove insulation where necessary.


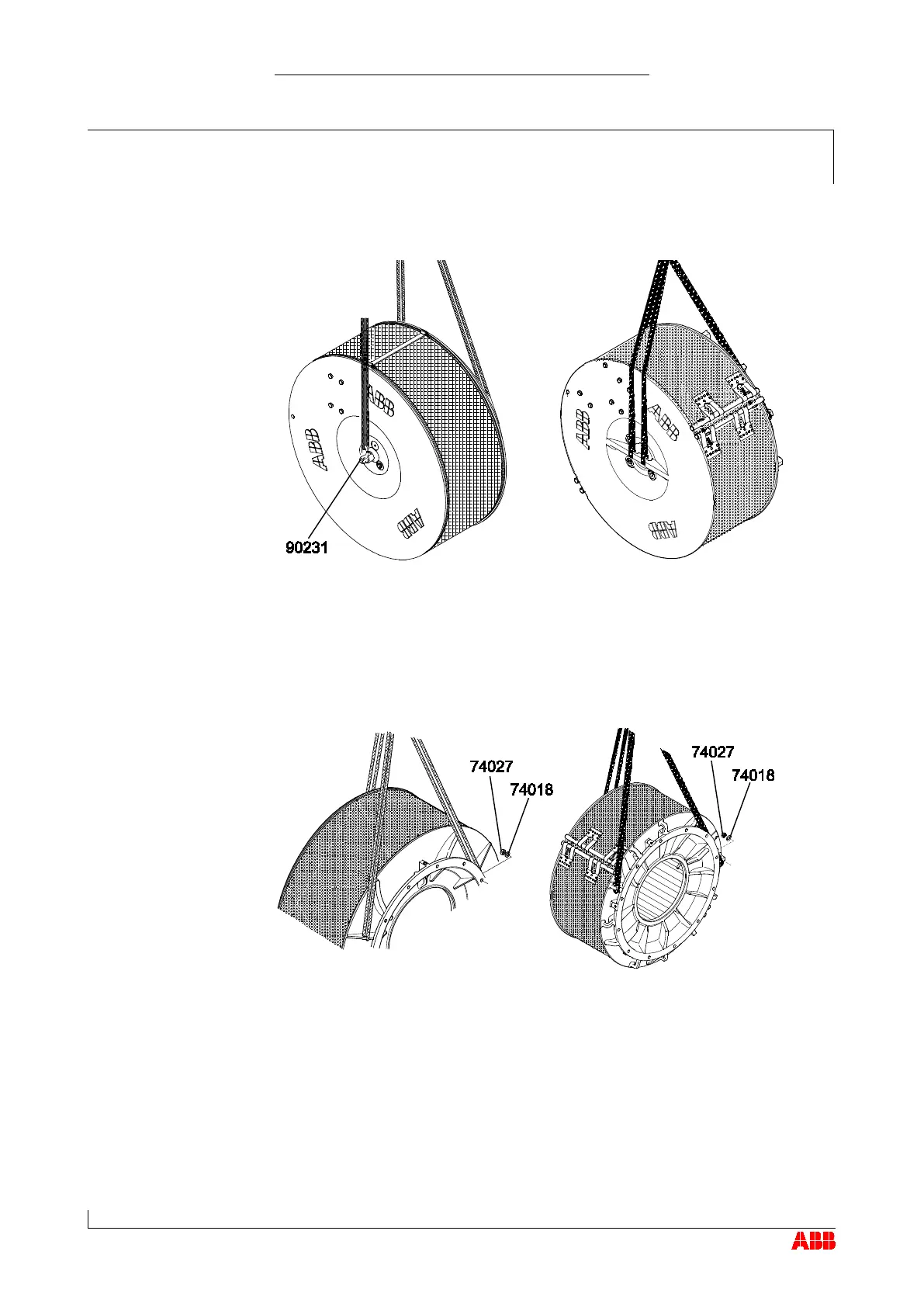

Fit swivel lifting eye (90231) to filter silencer.
Or
 Pass lifting gear through rib on filter silencer.

Pass lifting gear through lugs at back.
 Unscrew nuts (74027) and remove them together with their washers
(74018).
 Remove filter silencer and set down to one side.
 Fit filter silencer in reverse order.
Removing filter silencer
Fitting filter silencer
