Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Dismantling and installing the turbine
diffuser and nozzle ring
Page 104
All rights reserved.
December 2016 HZTL2481_EN Revision B

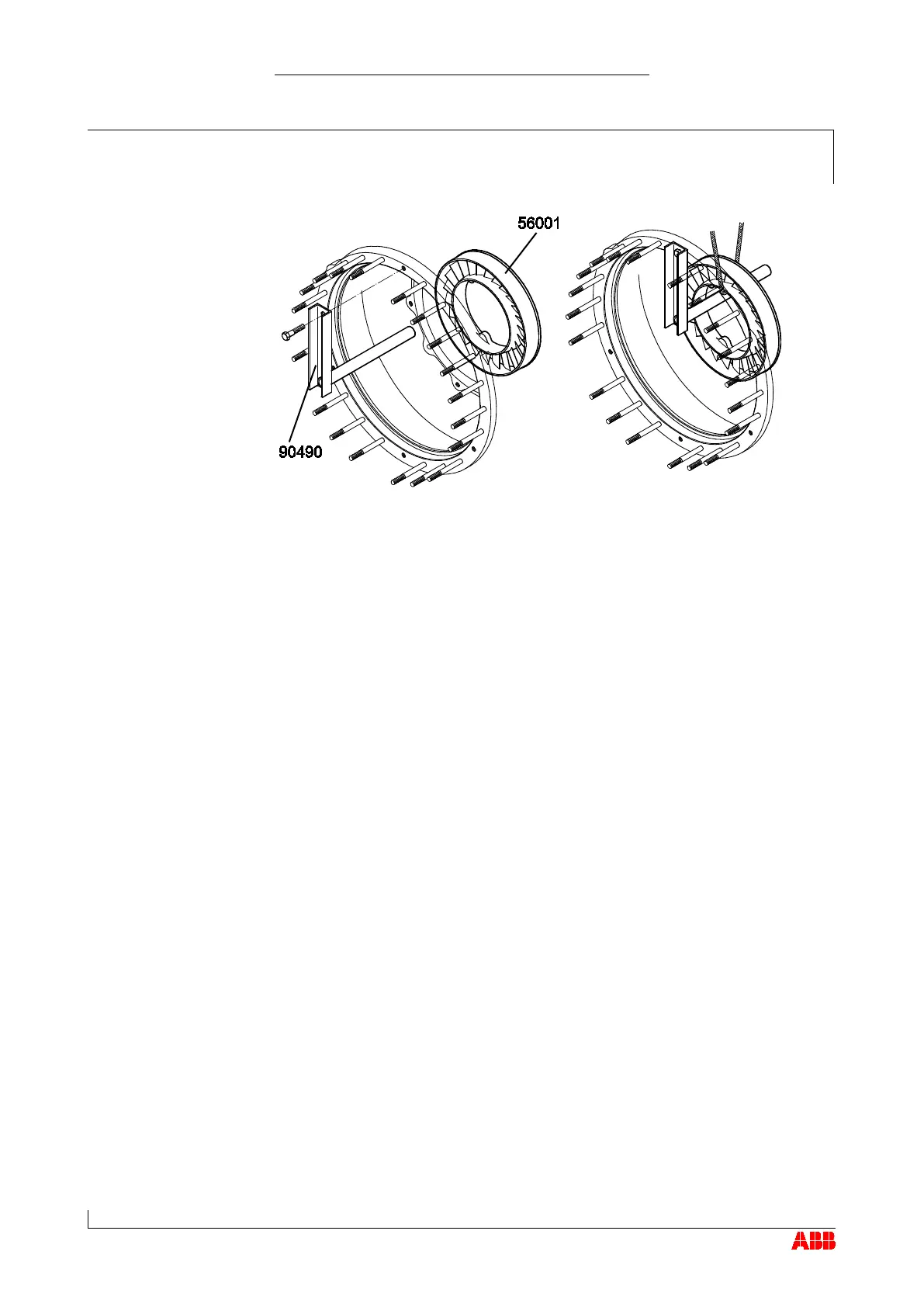

Fasten the holder (90490) to the gas outlet casing.
Pull the nozzle ring (56001) in the forward direction, fasten it to the lift-
ing gear and remove it.
Installing the turbine diffuser and nozzle ring
Install the nozzle ring and turbine diffuser in the reverse order of re-
moval.
Coat the screw threads with high-temperature grease.
Align nozzle ring with holes or cams in gas inlet casing.
