Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Op
eration
4
Noise emissions
4.1
Page 36
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B

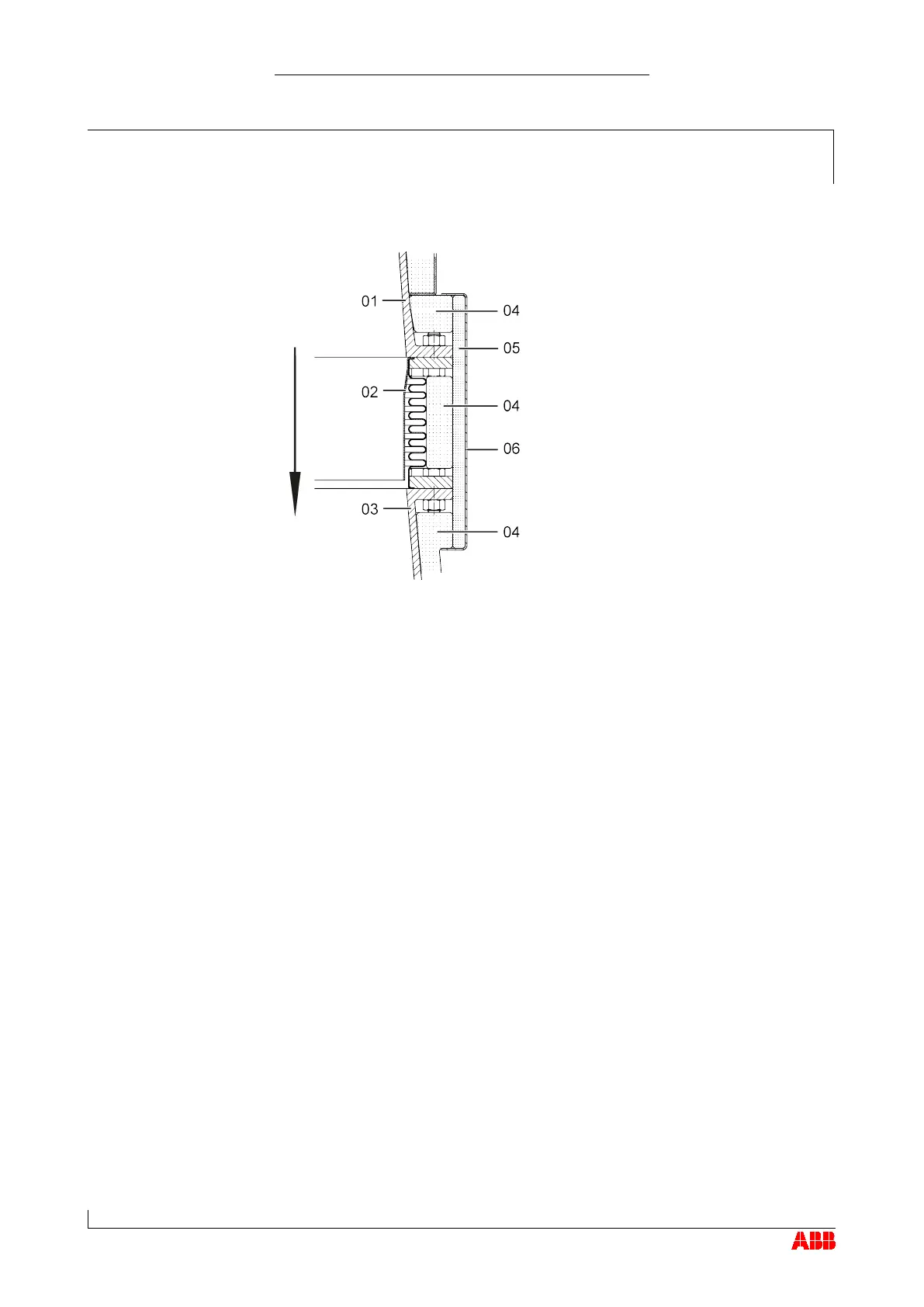

Suggestion for noise insulation of the bellows
01 Compressor casing 04 Insulation pads
02
Bellows
05
Insulation mat (at least 15 mm)
03
Charge air duct / scavenging
air line
06
Sheet metal cover
