Removing the turbocharger
Page 85
© Copyright 2016 ABB. All rights rese
rved.
December 2016 HZTL2481_EN Revision B

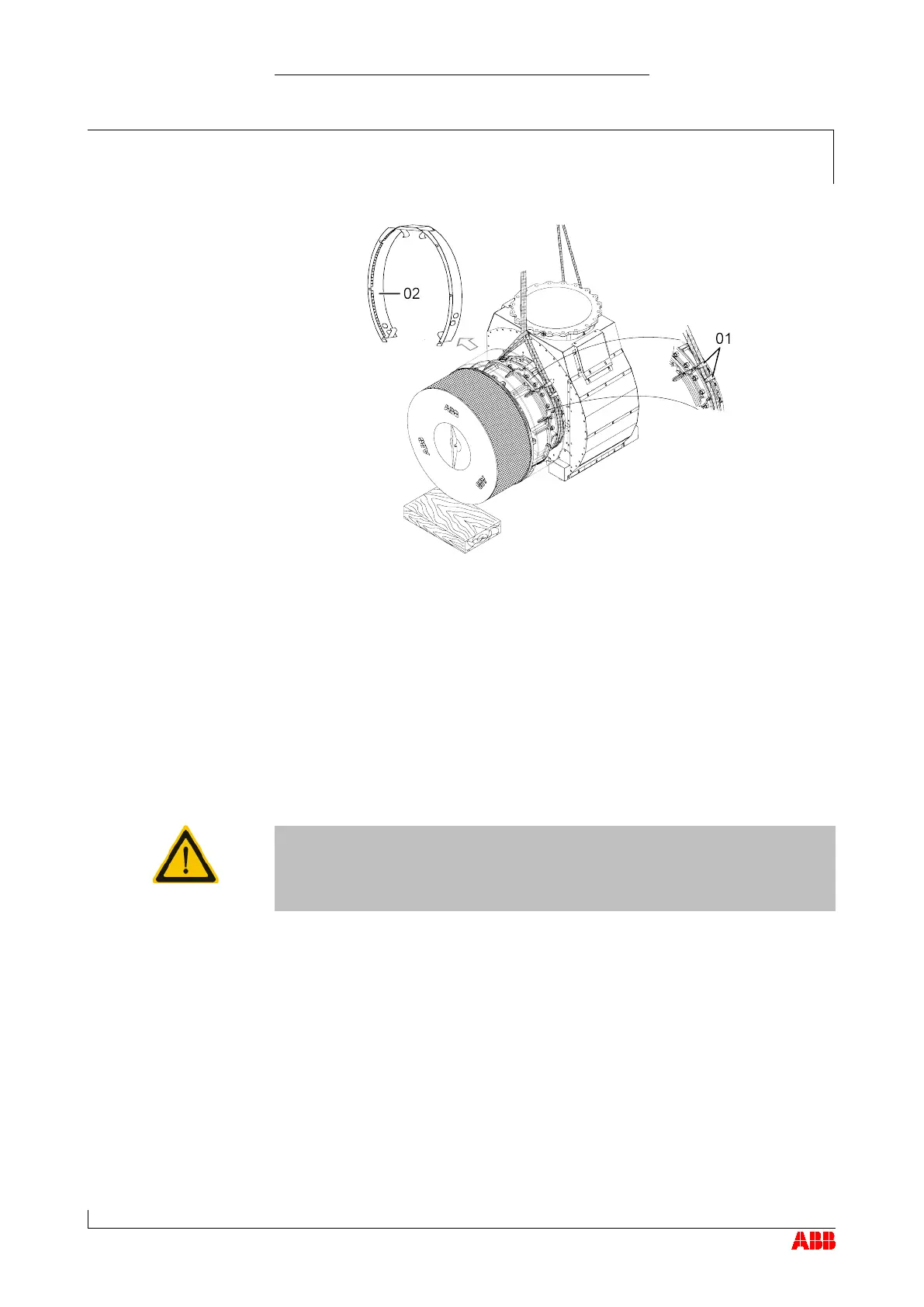

Ribs (01) not in the middle at the top:
Completely remove the bearing casing insulation (02) and place a
sling around the bearing casing.
Attach one lifting gear each to the two fins of the bearing casing pro-
vided for this purpose.
Loosen the fixing screws at the foot.
Lift the turbocharger off the engine and set it down to one side.
If support for the turbocharger is missing or defective, the turbocharger
can tip over during installation and removal and cause serious injuries
or even fatal accidents.
Support the turbocharger at a suitable point.
Cover the oil connection.
