Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Disassembly and assembly
8
Removing cartridge group
8.5
Page 97
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B


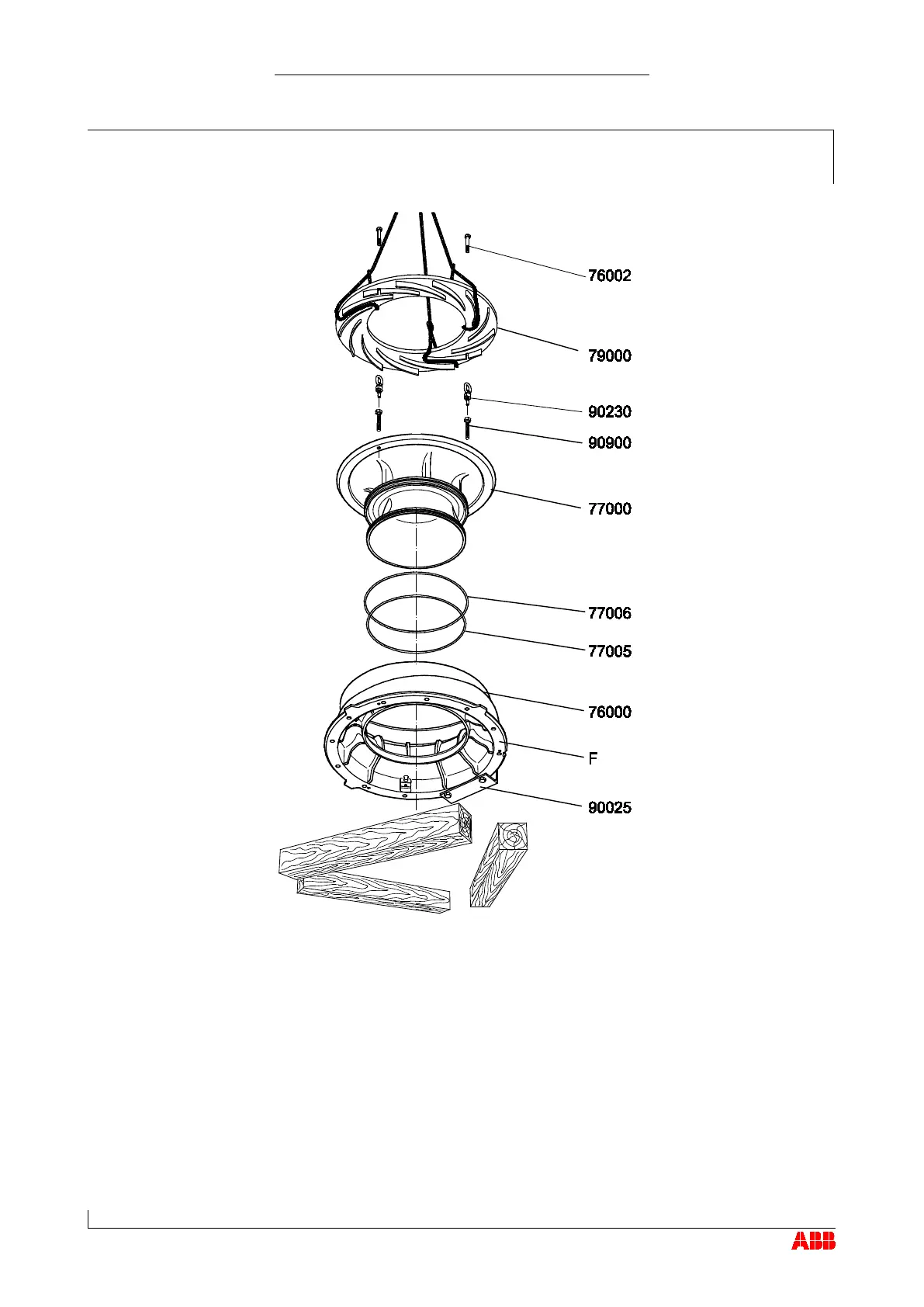

Remove screws (76002).
 Loop lifting gear around diffuser (79000) and remove diffuser.
 Carefully press off the wall insert (77000) using the press-off screws
(90900) and remove it using the swivel lifting eye (90230).
 Remove O-rings (77005 and 77006).
