ABB TRIO-5.8-TL-OUTD-S

- 16 -
000317CG
2 - Characteristics

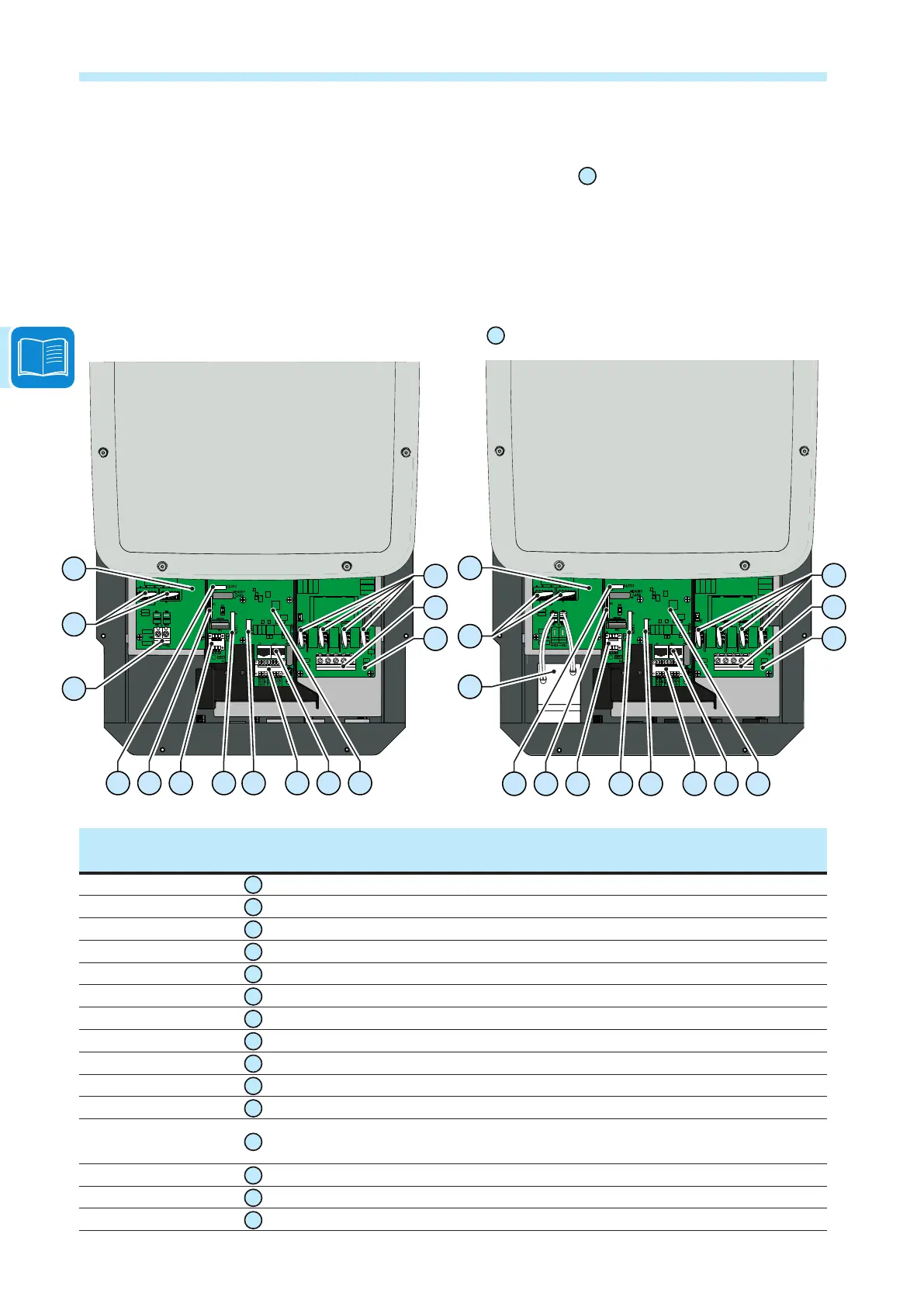

Inverter Composition
For each power size of the inverter
10
(5.8 / 7.5 / 8.5kW) 2 versions are
available with different set-ups.
5.8kW Standard / -S Version
TRIO-5.8-TL-OUTD: Standard inverter version
TRIO-5.8-TL-OUTD-S
: -S inverter version, as standard version but with
DC disconnect switch
08
Table: TRIO-5.8kW main inverter components
Ref.
Inverter
Ref.
manual.
Description
-
05
AC output board
-
06
communication and control board
-
07
DC input board
-
08
DC disconnect switch
J1-J2
21
input varistors
J3
23
DC input terminal block
J14
24
SLOT 3 - Connector for WIFI modules installation (NOT ACTIVE)
A1
25
SD CARD housing
J2
26
Connection to the multi-function relay
J9
27
SLOT 1 - Connector for Radio module or Ethernet card installation
J3
28
SLOT 2 - Connector for PMU card installation
J4
29
Connection of the RS485 (PC) line, remote ON/OFF and Tachometer
signal (WIND version)
J7-J11
30
RS485 (PC) line connection on RJ45 connector
J1
31
AC output terminal block
J7-J8-J9-J10
32
AC output varistors
Standard Version
1
R S T N G
21
07
23
24 25
32
05
31
27 28
29 30 0626
-S Version
1
R S T N G
21
07
08
24 25
32
05
31
27 28
29 30 0626
