5 - Installation

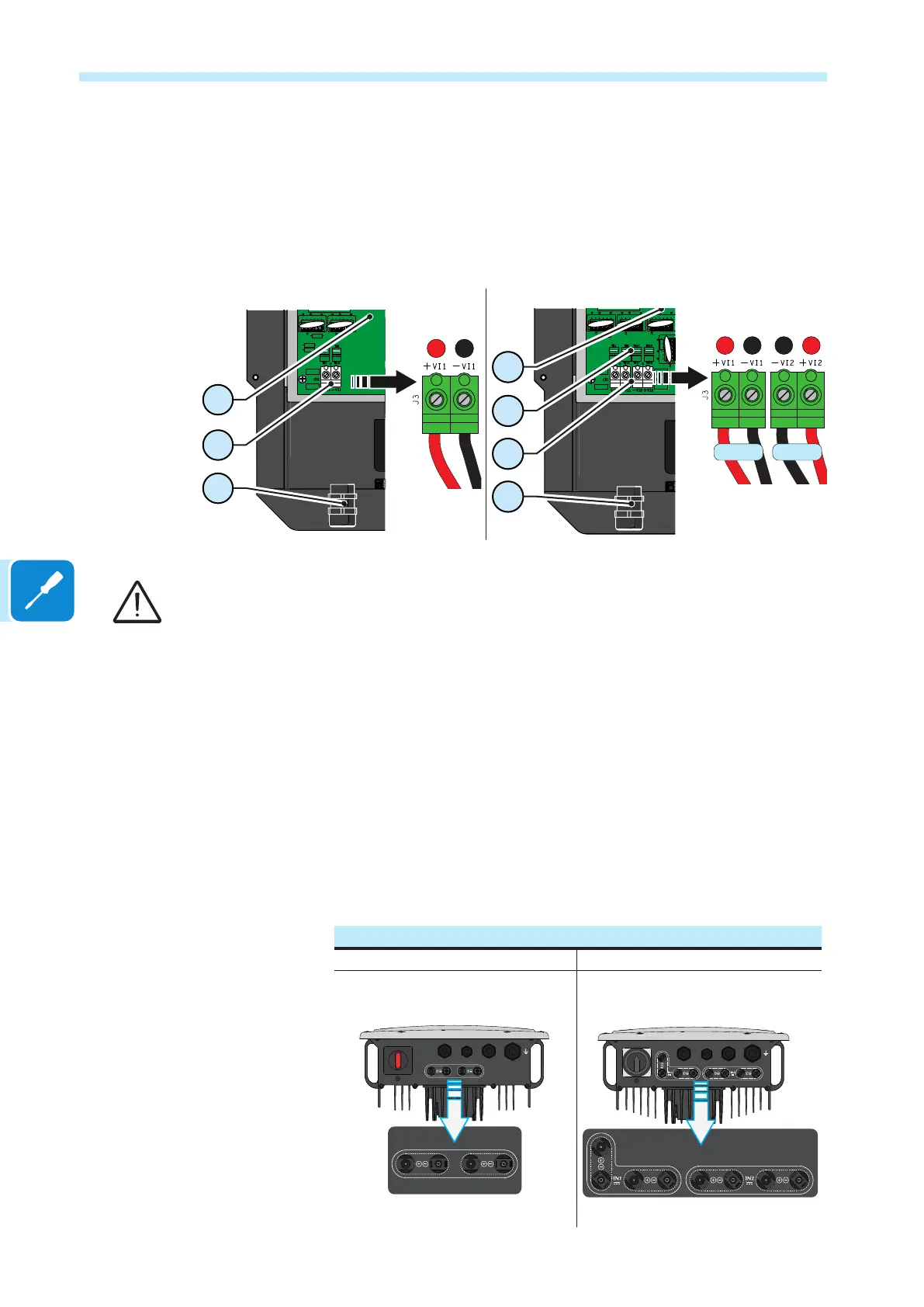

DC cables installation:
• Unscrew the cable clamp and remove the cover
• Enter the appropriate section cable through the DC cable gland and
through the 3 holed gasket, where required.
• Connect the cables on to the DC input terminal block.
• Once connection to the terminal block has been completed, retighten
the cable gland rmly and check seal.
07
23
18
+ −
TRIO 5.8kW (1 MPPT)
07
23
22
18
+ − − +
MPPT1 MPPT2
TRIO 7.5/8.5kW (2 MPPT)
According to the system conguration, check the correct setting of the channels to indepen-
dent or in parallel mode. An incorrect setting of the input channels can lead to loss of energy
production.
Connection of inputs - Models with disconnect switch (-S)
To connect the strings in versions with DC disconnect switch, you will
need the quick t connectors (Weidmüller or Multi-Contact) located on
the lower part of the mechanics.
The number of quick t connectors varies in accordance with the number
of input channels. In general, there are two pairs of connectors for each
input channel, to which two strings may be connected.
TRIO-5.8 TRIO-7.5 TRIO-8.5
No. of input channels: 1 No. of input channels: 2
No. of quick t connectors:
4 (2 couple)
I ON
0 OFF
MPPT1 MPPT2
No. of quick t connectors:
4 + 4 (2 couple per MPPT)
I ON
0 OFF
MPPT1 MPPT2
