5 - Installation

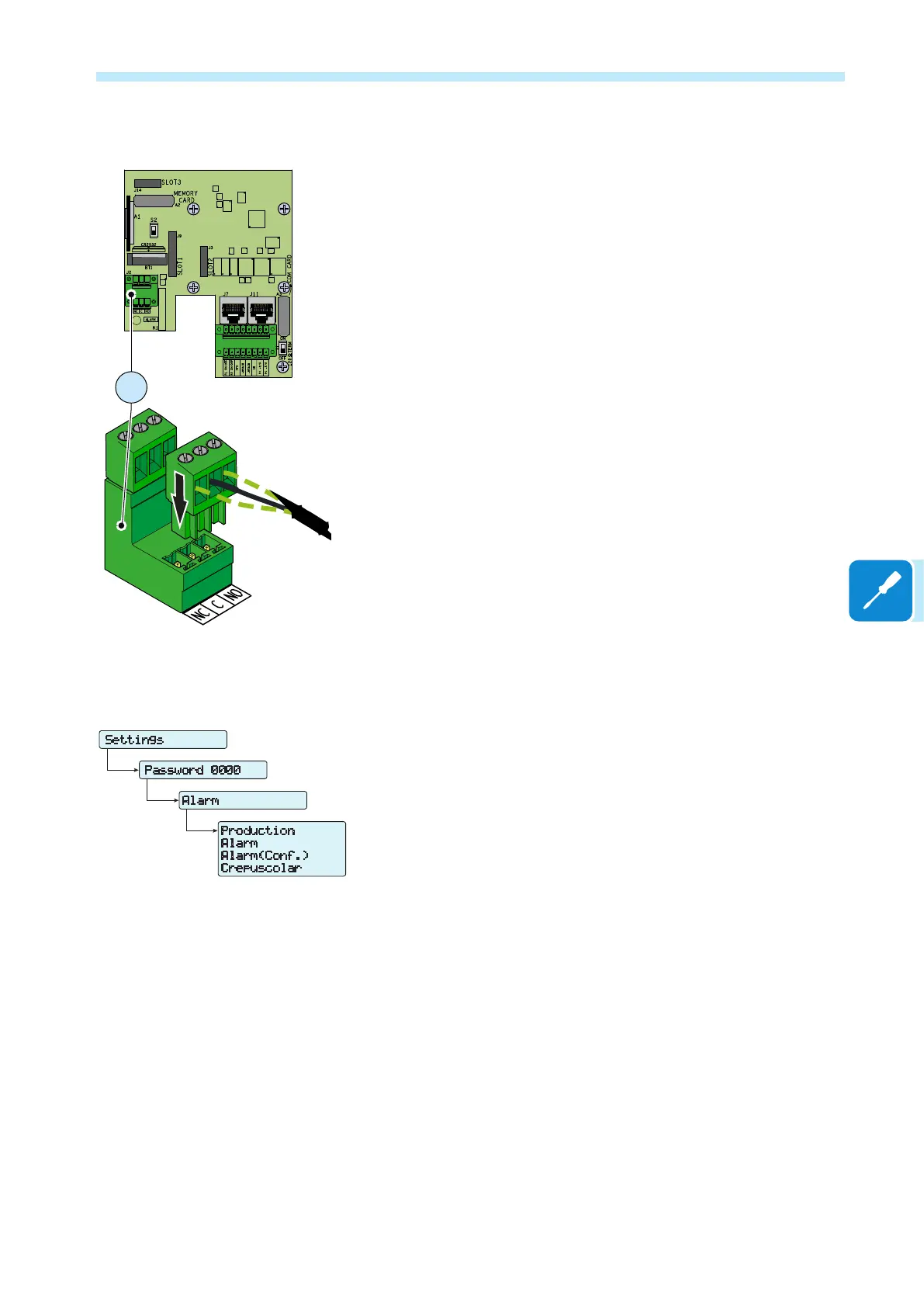

Configurable Relay connection (ALARM)
The inverter is equipped with a multifunction relay with congurable acti-
vation. It can be connected with normally open contact (being connected
between the NO terminal and the common contact C) and with normally
closed contact (being connected between the NC terminal and the com-
mon contact C).
Different types of devices (light, sound, etc.) can be connected to the
relay, provided they comply with the following requirements:
Alternating current
Maximum Voltage: 240 V AC Maximum Current: 1 A
Direct current
Maximum Voltage: 30 V DC Maximum Current: 0.8 A
Cable requirements
External diameter: from 5 to 17 mm
Conductor cross-section: from 0.14 to 1.5 mm
2
This contact can be used in different operating congurations that can be
selected by accessing the "SETTINGS → Alarms" menu.
1
26
Production
Alarm
Alarm(Conf.)
Crepuscolar
ENTER
Settings
Alarm
ENTER
Password 0000
ENTER
To Next Page
