5 - Installation
Closing the front cover
At the end of the stage of connecting and conguring the inverter and
before proceeding with the commissioning, the inverter's cover must be
closed.
During the installation of the cover, the installation sequence must be respected as well as
the tightening torque of the 8 screws (set out in the paragraph on technical data) in order to
keep the IP level of the inverter unchanged

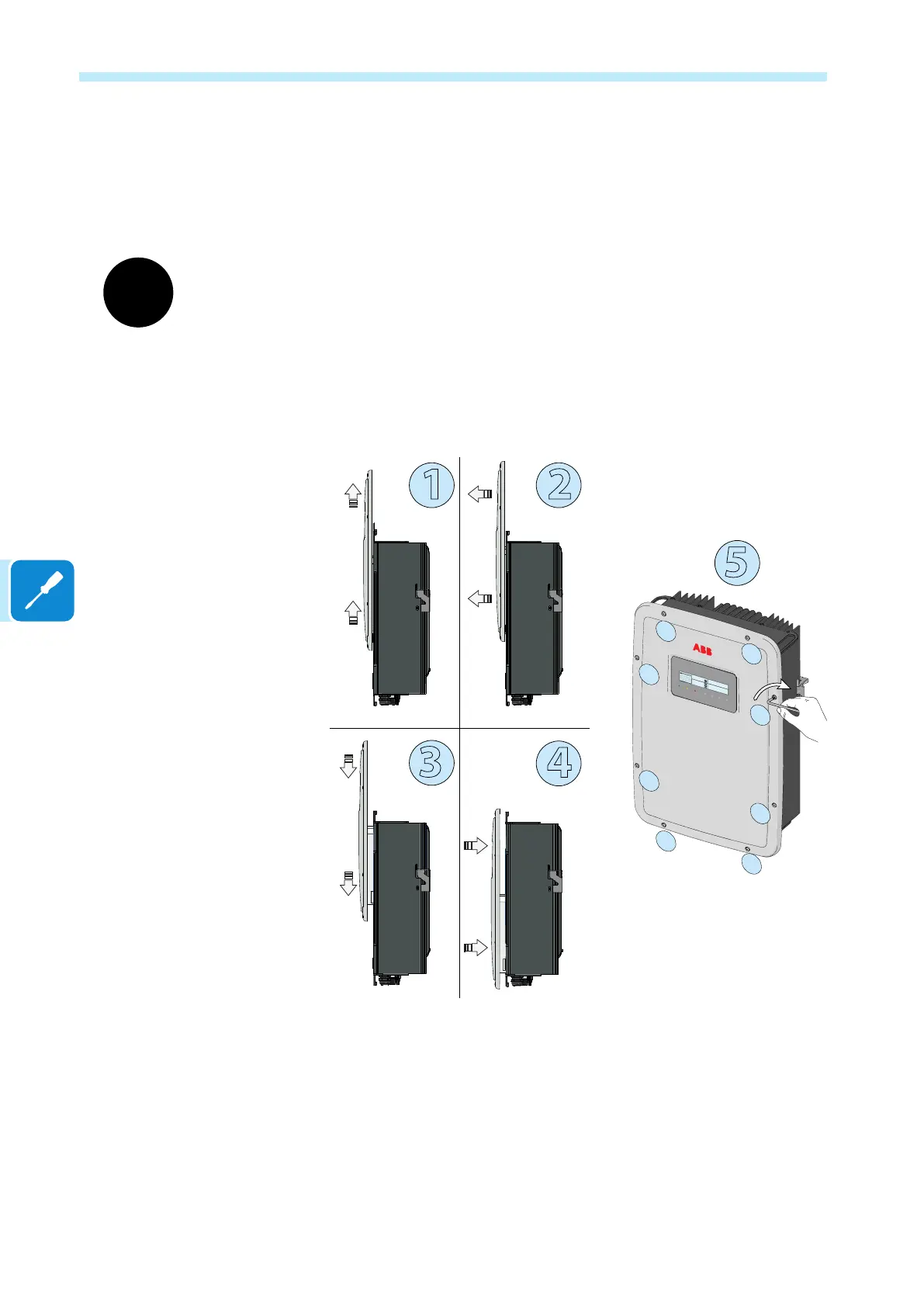

• Close the cover following the rst 4 steps set out in the diagram.
• Insert and screw in the 8 xing screws.
• Tighten the screws respecting the sequence and the tightening torque.
At the end of the stage of installing the front cover, it is possible to pro-
ceed with the commissioning of the inverter.
