2 - Characteristics

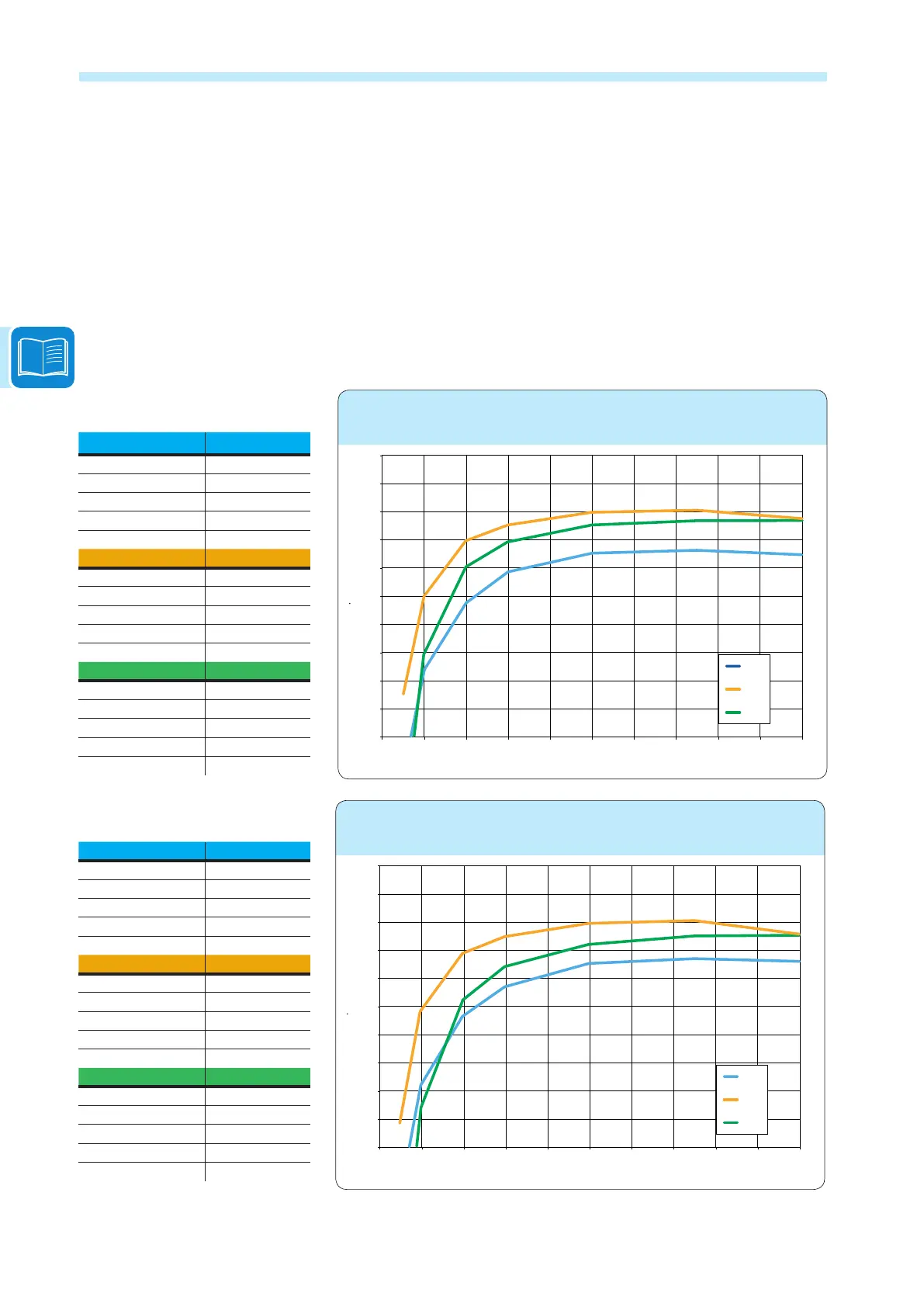

Efficiency curves
The equipment was designed in consideration of current energy conser-
vation standards, to avoid waste and unnecessary leakage.
Graphs of the efciency curves of all models of inverter described in this
manual are shown below.
The efciency curves are linked to technical parameters that are continually being developed
and improved and should therefore be considered approximate.
TRIO-5.8-TL-OUTD
TRIO-5.8-TL-OUTD-S
Pout% (320Vdc) Eff. (320Vdc)
20 94.7
30 95.8
50 96.5
75 96.6
100 96.5
Pout% (620Vdc) Eff. (620Vdc)
20 97.0
30 97.5
50 98.0
75 98.0
100 97.7
Pout% (800Vdc) Eff. (800Vdc)
20 96.0
30 96.9
50 97.5
75 97.7
100 97.6
TRIO-7.5-TL-OUTD
TRIO-7.5-TL-OUTD-S
Pout% (320Vdc) Eff. (320Vdc)
20 94.7
30 95.7
50 96.5
75 96.7
100 96.6
Pout% (620Vdc) Eff. (620Vdc)
20 96.9
30 97.5
50 98.0
75 98.0
100 97.5
Pout% (800Vdc) Eff. (800Vdc)
20 95.2
30 96.4
50 97.2
75 97.5
100 97.5
90
91
92
93
94
95
96
97
98
99
100
Eciency, %
% of Rated Output Power
320 Vdc
620 Vdc
800 Vdc
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Efciency curves
90
91
92
93
94
95
96
97
98
99
100
Eciency, %
% of Rated Output Power
320 Vdc
620 Vdc
800 Vdc
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Efciency curves
