ABB TRIO-5.8-TL-OUTD-S

- 40 -
000323CG
4 - Lifting and transport

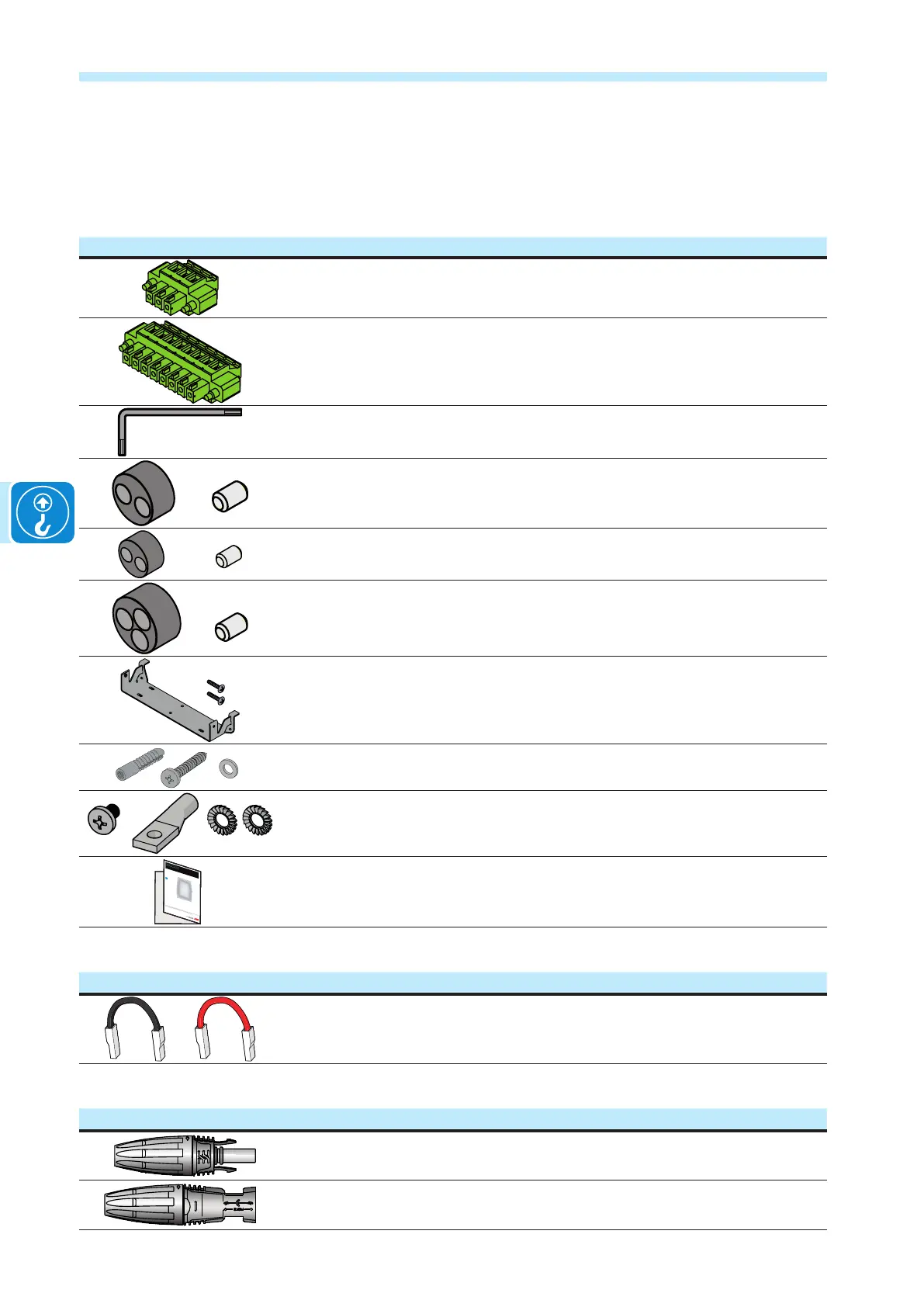

List of components supplied
Supplied with the inverter are all the components required to correctly
install and connect the inverter
Components available for all models Qty
Connector for connecting the congurable relay 2
Connector for connecting the communication and control
signals
2
Male key TORX TX25 1
Two-hole gasket for M25 signal cable glands and cap 2 + 2
Two-hole gasket for M20 signal cable glands and cap 1 + 1
Three-holed gasket for M25 DC cable glands + caps (use
only for models without DC disconnect switch)
2 + 4
Bracket for wall fastening + locking screws 1 + 2
Plugs and screws for wall mounting 4 + 4
Screw + cable lug + washers for installation of the second
protective earthing cable
1 + 1 + 2
In addition to what is explained in this guide, the safety and installation information provided in the installation manual must be read and followed.
The technical documentation and the interface and management software for the product are available at the website.
XXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXX
ABB solar inverters
Technical documentation 1
Additional components for 7.5/8.5kW models Qty
Jumpers for conguration of the parallel input channels 1 + 1
Additional components models with disconnect switch(-S) Qty
Quick t connectors (female)
2(5.8 kW)
4(7.5/8.5 kW)
Quick t connectors (male)
2(5.8 kW)
4(7.5/8.5 kW)
