ABB TRIO-5.8-TL-OUTD-S

- 52 -
000326BG
5 - Installation
TRIO-7.5-TL-OUTD e TRIO-8.5-TL-OUTD - Models with DC disconnect switch

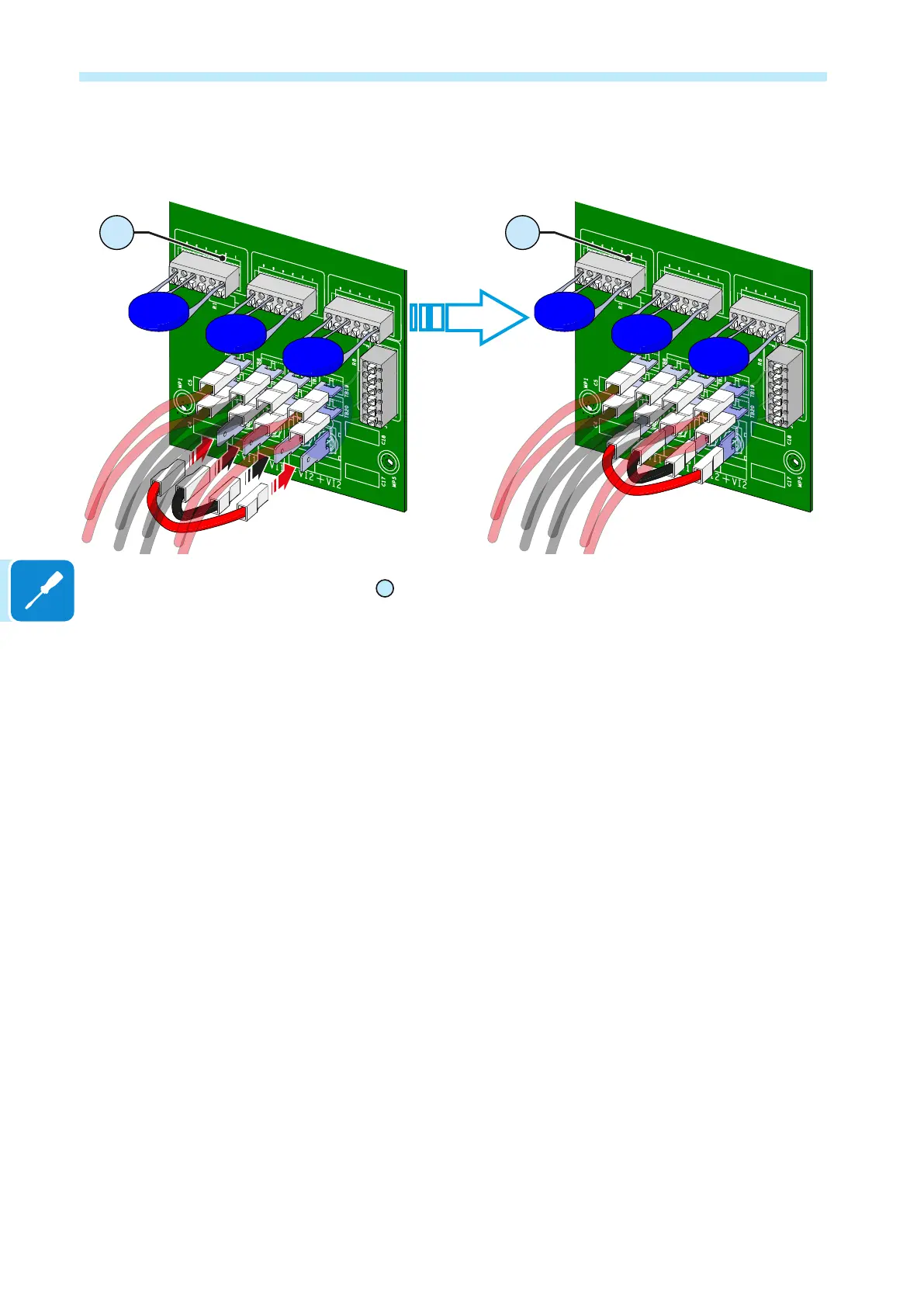

Install the jumpers for the positive poles between terminal TB5 and TB18 and that of the negative poles
between TB9 and TB16
The terminals for connection of the jumpers are positioned below the connection cables of
the DC disconnect switch
08
07 07
