ABB TTR200 - Zone 2

Electrical connection
22 TTR200 OI/TTR200-EN
5.5.5 Zone 2
Transmitter design: II 3G EEx nA II T6
Explosion-protection zone 2 Safety area

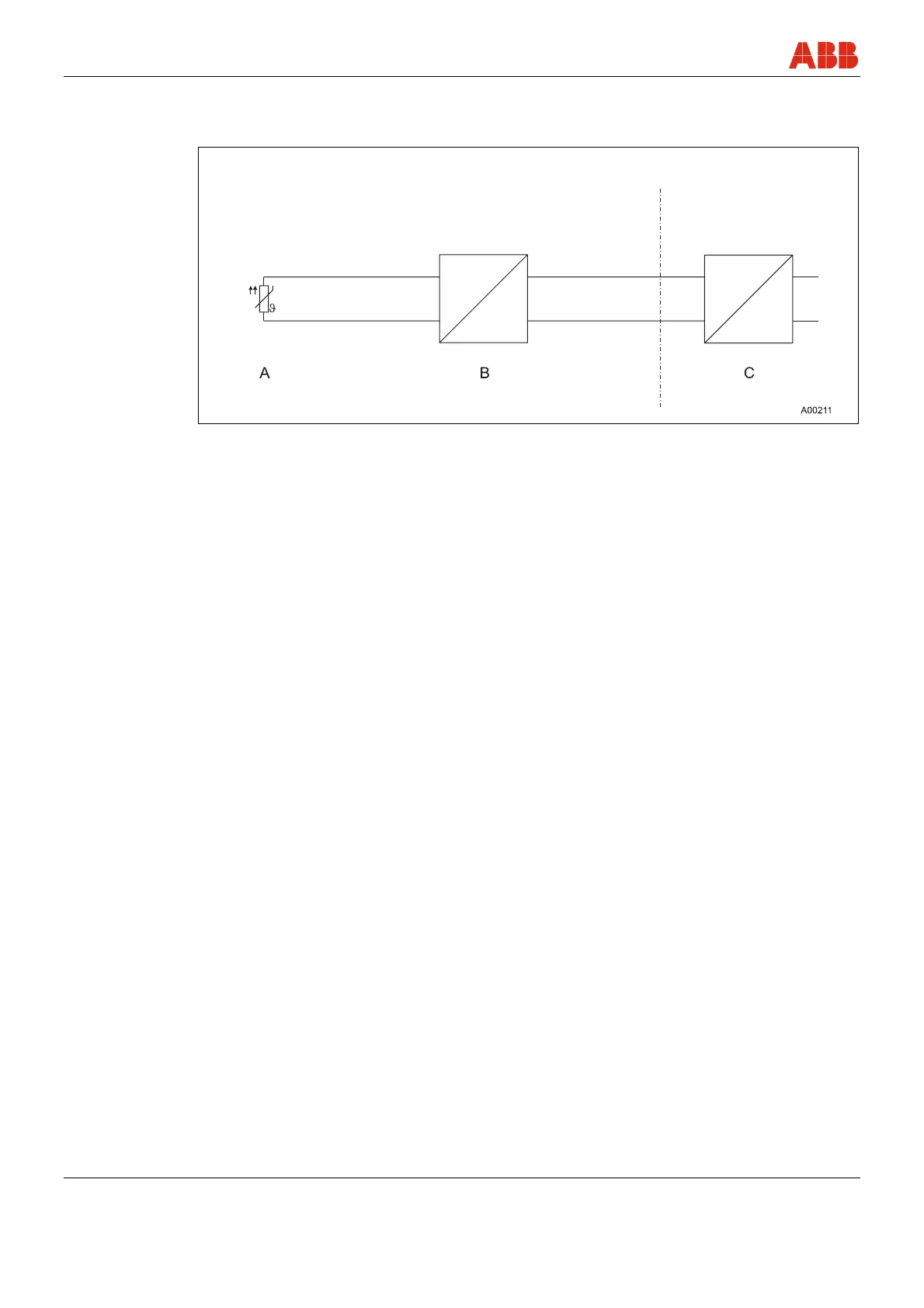

Fig. 11
A Sensor
B Transmitter in housing with IP 54 level of
protection
C Transmitter power supply
For instruments in zone 2, the transmitter must be installed in its own housing with a minimum
of IP 54 level of protection.
Ensure that in case of a disturbance the supply voltage cannot exceed 40 % of the normal
voltage.
