1.5.2 Name plate
Pos: 4.14 /Sicher heit/Temperatur/TTR/ Typenschild (Standard) @ 21\mod_1215777718469_3 101.doc @ 205933

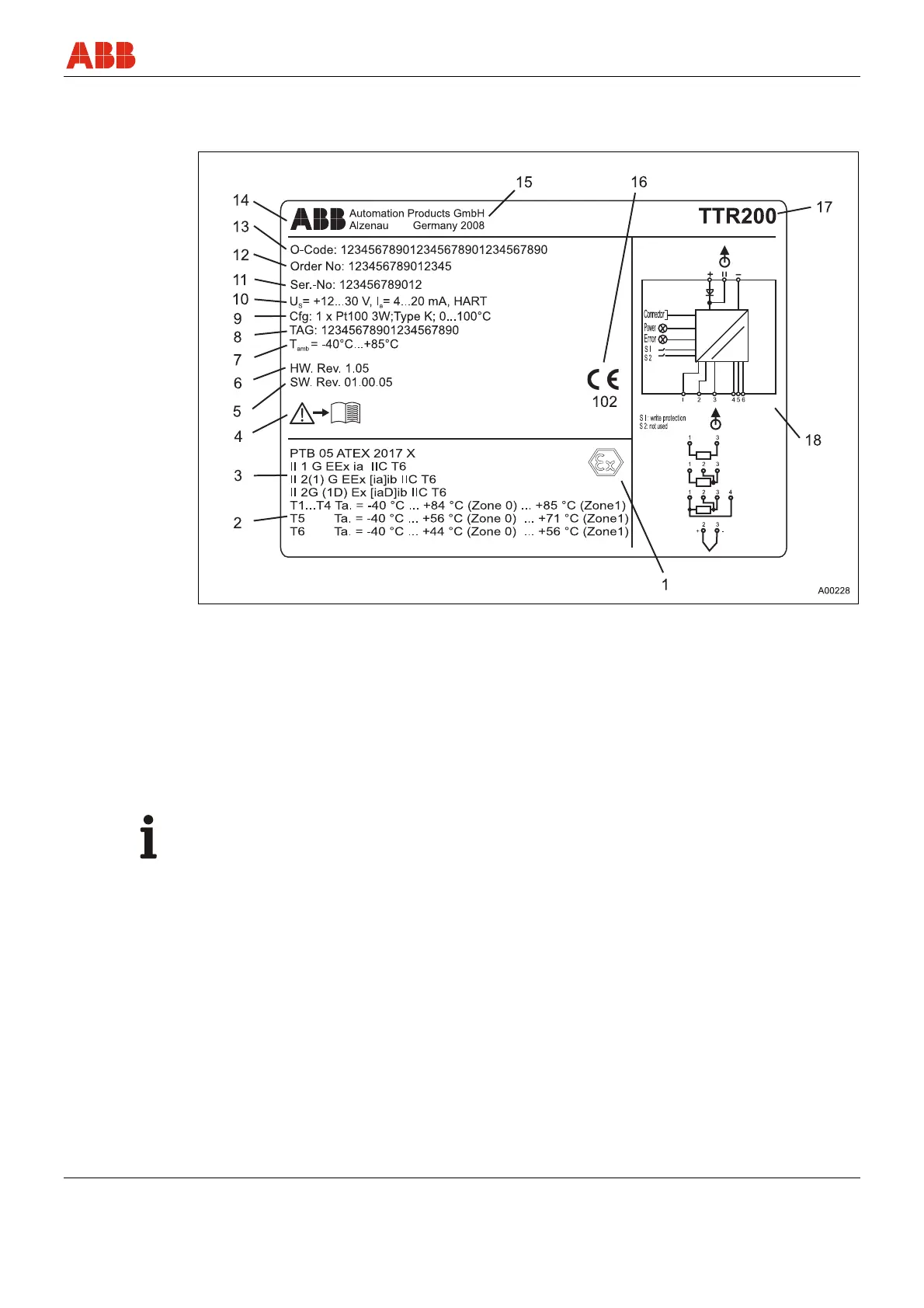

The name plate is located on the transmitter housing.
Fig. 1
1 Ex designation (option)
2 Temperature classes Ex design (option)
3 Protection class Ex design (option)
4 Refer to product documentation
5 Software revision number
6 Hardware revision number
7 Ambient temperature
8 TAG number
9 Sensor configuration
10 Technical data
11 Serial number
12 Order no.
13 Order code
14 Manufacturer of transmitter
15 Country and year of manufacture
16 CE mark (EC conformity)
17 Model name
18 Terminal connection diagram
Important
The temperature range on the name plate (7) refers only to the permissible ambient
temperature range for the transmitter and not to the measuring element used in the measuring
inset.
