Mounting
16 TZIDC, TZIDC-110, TZIDC-120 42/18-84-EN
M00410
12
3
4
+30°
+60°
-60°
-30°
+100°
+100°
0°
0°
TZID-C

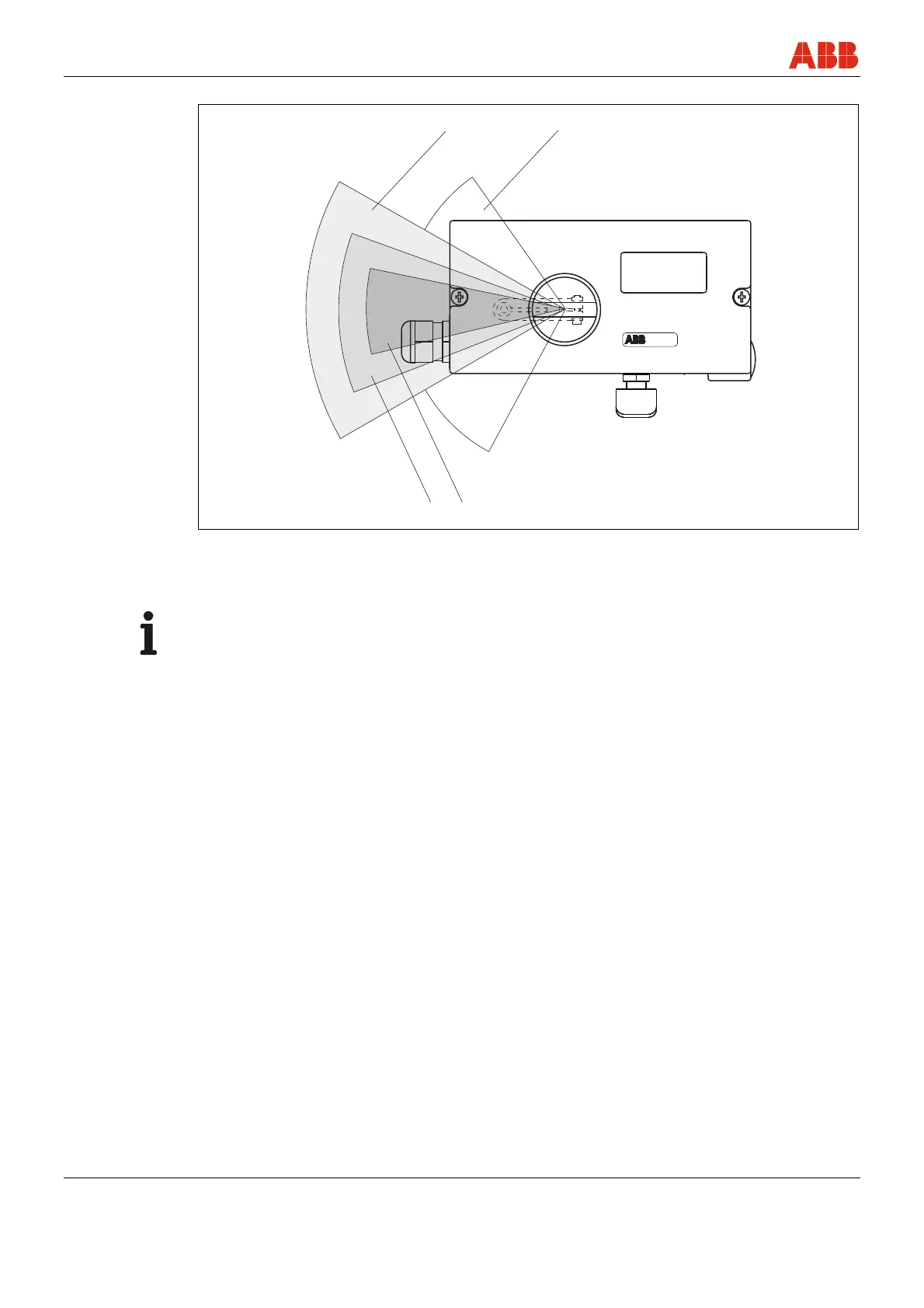

Fig. 4: Positioner range
1 Sensor range for linear actuators
2 Sensor range for rotary actuators
3 Operating range for linear actuators
4 Operating range for rotary actuators
IMPORTANT (NOTE)
During installation make sure that the actuator travel or rotation angle for position feedback is
implemented correctly.
The maximum rotation angle for position feedback is 60° when installed on linear actuators and
120° on rotary actuators. The minimum angle is always 25°.
