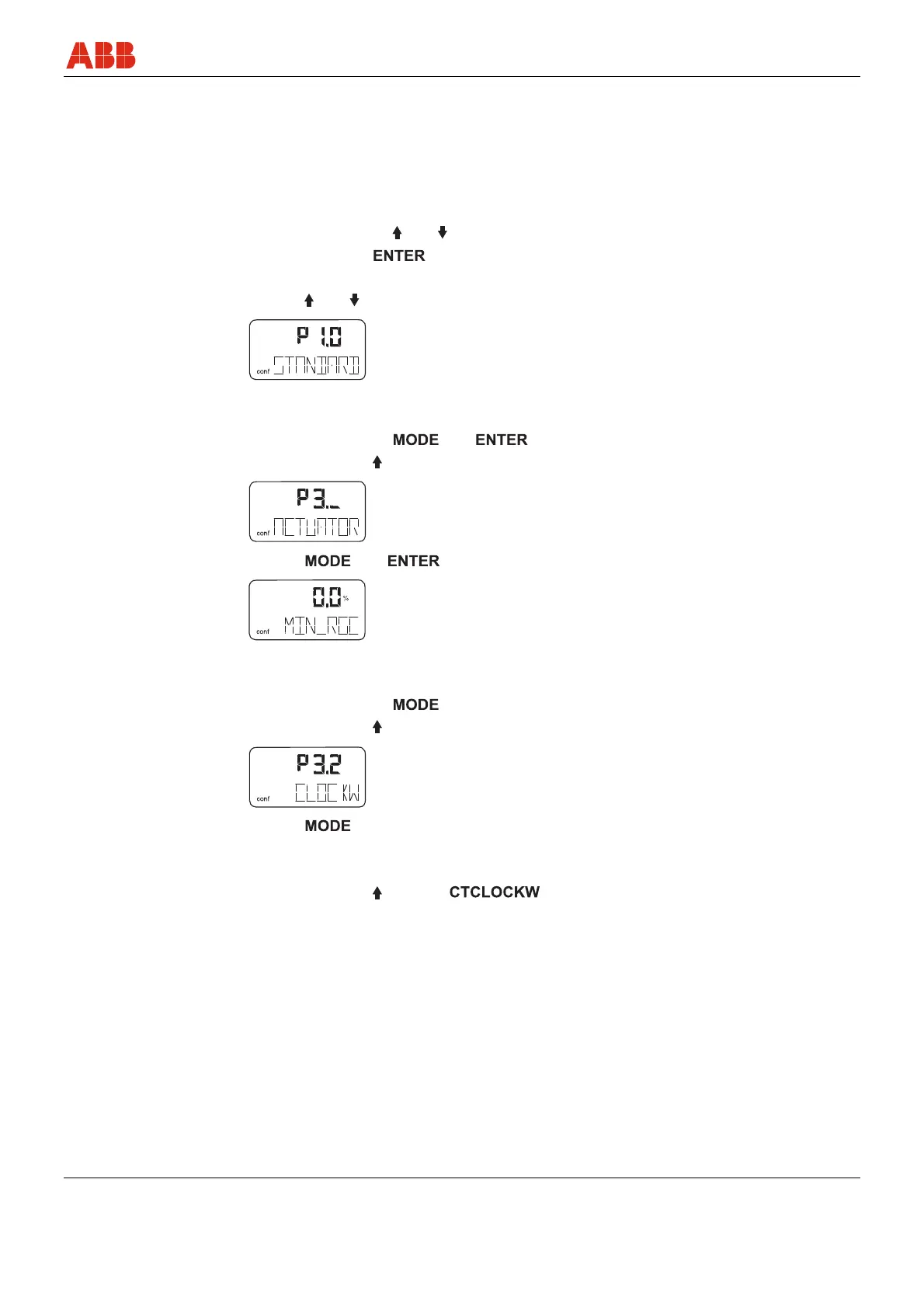

7.2.2 Sample parameters
"Change the zero position of the LCD screen from clockwise (CLOCKW) to counter-
clockwise stop (CTCLOCKW)"
Starting position: The positioner is in bus operation on the operating level
1. Switch to the configuration level:
• Press and hold down
and simultaneously
• Press and release
• Wait for the countdown to go from 3 to 0
• Release
and ,
is displayed
2. Switch to parameter group 3._:
• Press and hold down
and simultaneously
• Press and release
twice,
is displayed
• Release
and ,
is displayed
3. Select parameter 3.2:
• Press and hold down
• Press and release
twice,
is displayed
• Release
4. Change parameter settings:
• Press and release
to select
