Mounting
42/18-84-EN TZIDC, TZIDC-110, TZIDC-120 21
4.2.3 Mounting on rotary actuators
For mounting on rotary actuators in accordance with VDI / VDE 3845, the following mounting kit
is available:

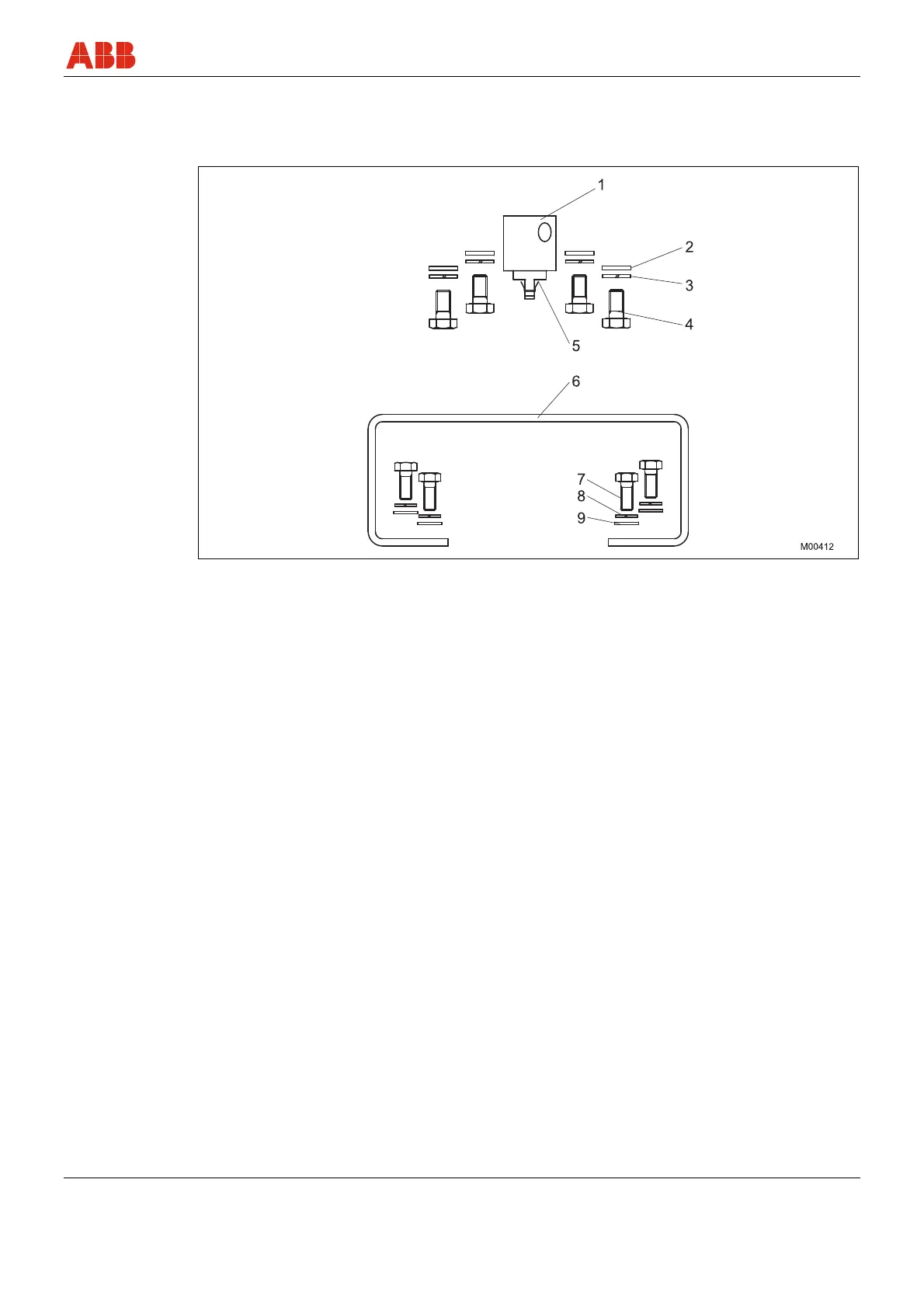

Fig. 11
• Adapter (1) with spring (5)
• each four screws M6 (4), spring washers (3) and shim (2) to attach the mounting bracket (6)
on the positioner
• each four screws M5 (7), spring washers (8) and shim (9) to attach the mounting bracket on
the actuator
Required tools:
- Wrench, size 10 / 13
- Allen key, size 3
