Safety
42/18-84-EN TZIDC, TZIDC-110, TZIDC-120 9
1.5.2 Name plate
M00406
Type:
Softw.-Rev.:
Serial no./Seriennr.:
NL-No.:
Year/Baujahr:
Supplypress: 20 ... 90 psi
Input: analog4-20mA
Eingang:
V18345 -
Zuluftdruck: 1,4 ... 6 bar
TZIDC
Output / Ausgang:
Loss of electr. supply/ Stromlos:
Options/ Optionen
ABB Automation
D - 32425 Minden
Made in Germany
0032
analog feedback
electr. limit switch
mech. limit switch
FSK
position indicator
safety shut down
1
2
3
4
5
8
9
10
6
7

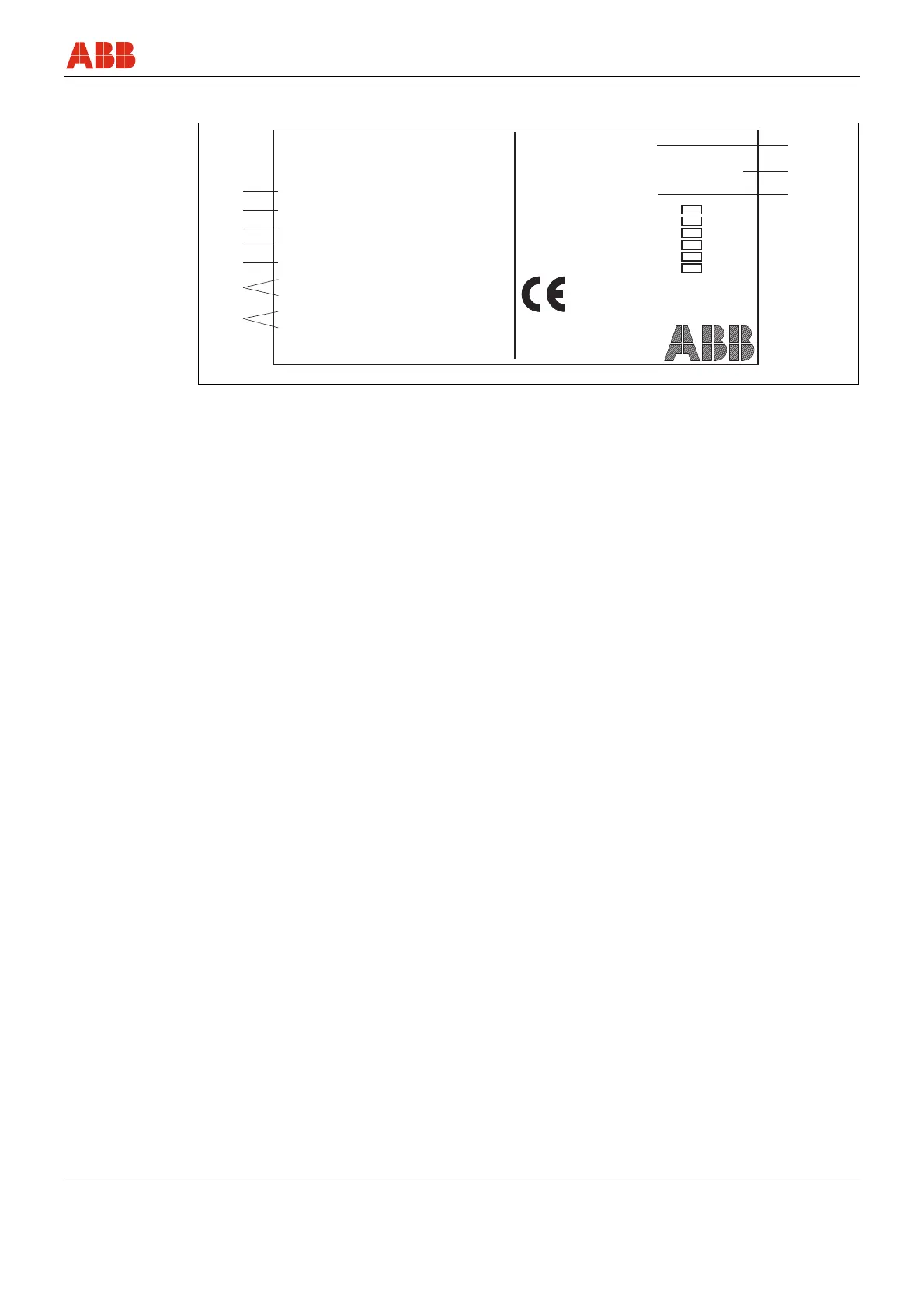

Fig. 1: Name plate
1 Complete model name
2 Software version
3 Serial number
4 NL number
5 Year
6 Supply pressure
7 Input
8 Output
9 Dead
10Options
1.6 Transport safety information
Check the devices for possible damage that may have occurred during transport. Damages in
transit must be recorded on the transport documents. All claims for damages must be claimed
without delay against the shipper and before the installation.
1.7 Storage conditions
The unit must be stored in dry and dust-free conditions. The unit is also protected by a
dessicant in the packaging.
The storage temperature should be between -40 ... 85 °C (-40 ... 185 °F).
The storage time is basically indefinite. However, the warranty conditions stipulated in the order
confirmation of the supplier are valid.
