Seite / Page 34 ABB Turbocharger VTC..4
Demontage und Montage Kap. / Chap. 5 Disassembly amd assembly
HZTL 10104
ABB Turbo Systems Ltd
- D -
ABB

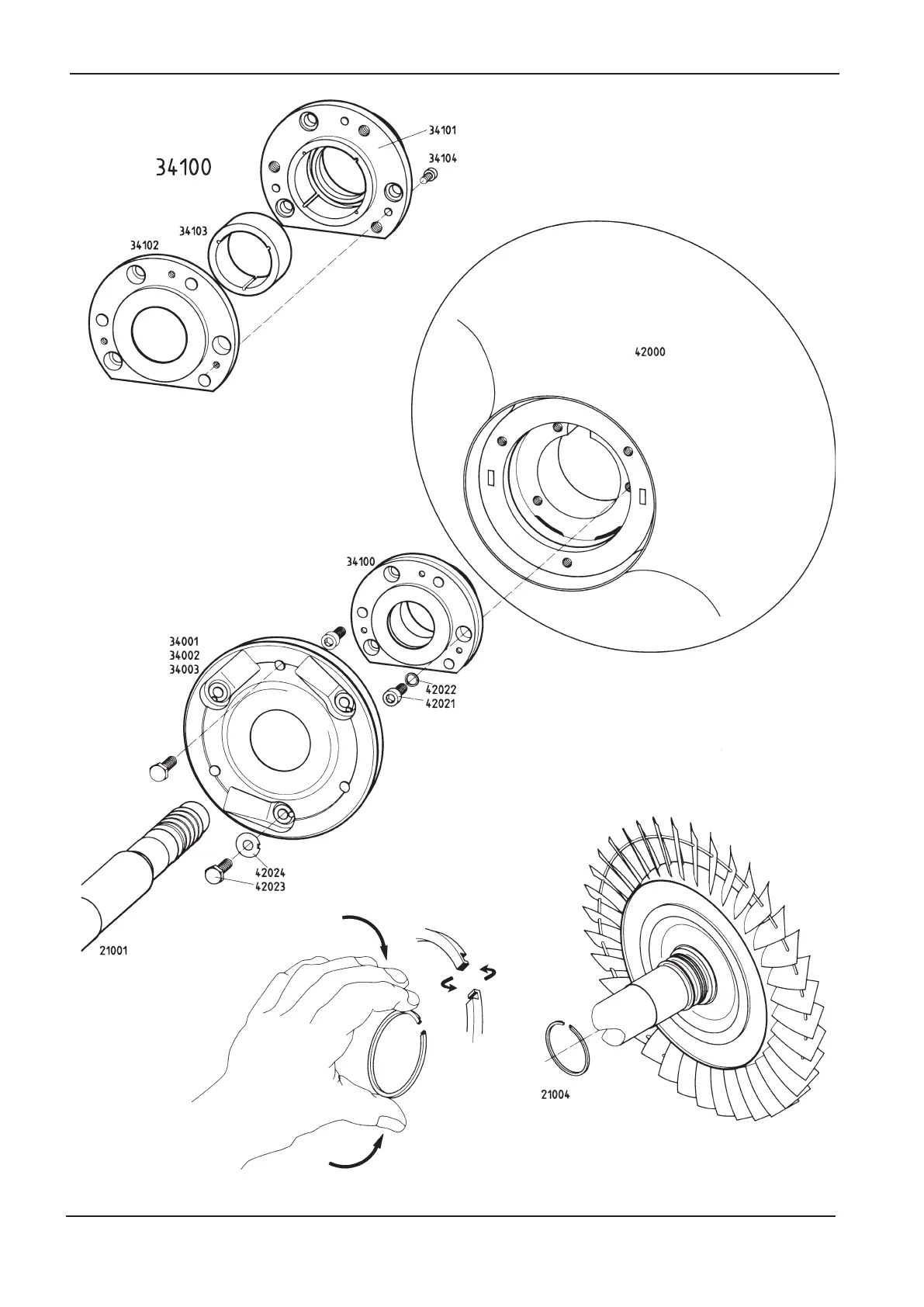

Fig. 5-13
Turbinenseitiges Lager einbauen
Installing the turbine end bearing
1
2
3
