XIO USER MANUAL | 2106424MNAB | 141

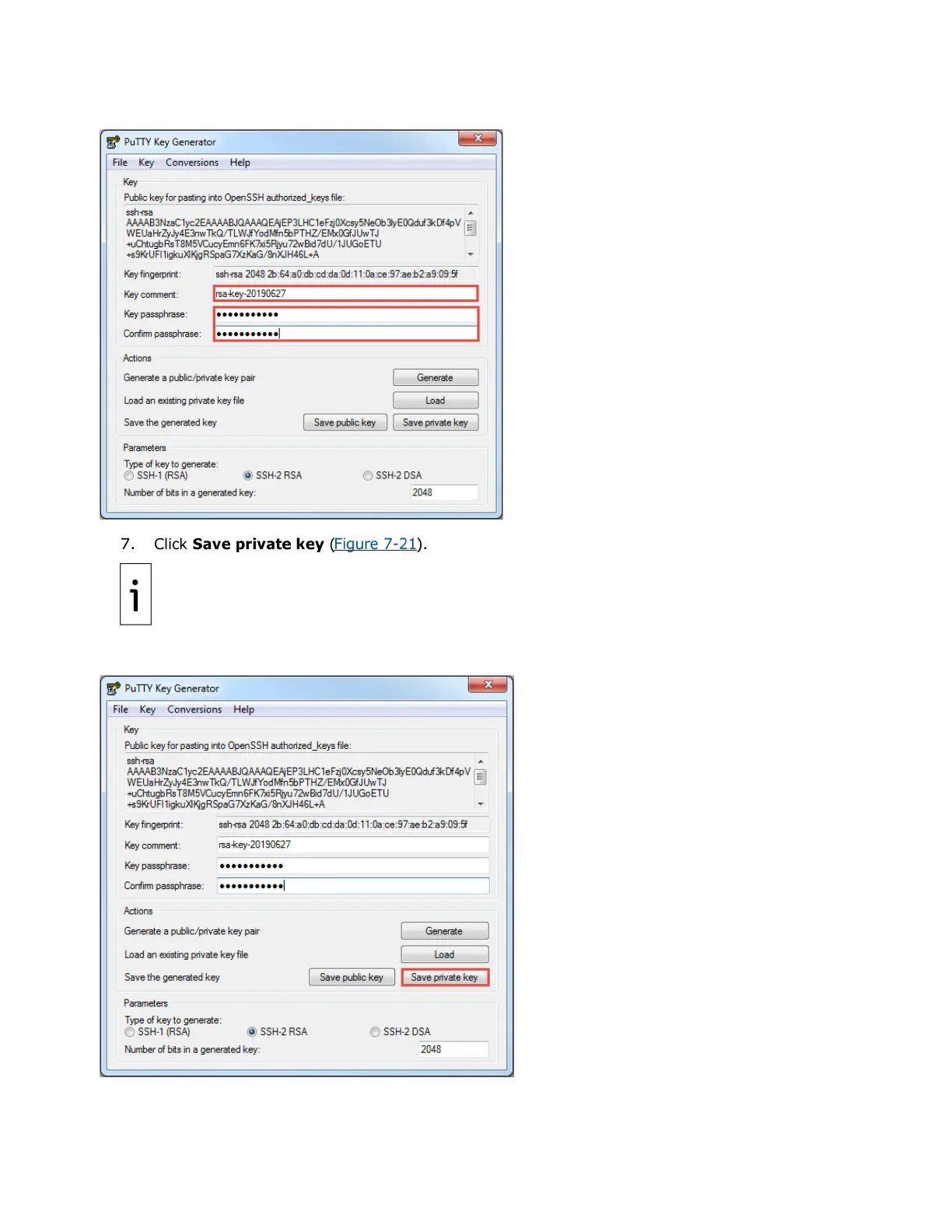

Figure 7-20: New private key comment and and passphrase

IMPORTANT NOTE:

The PuTTY Key Generator generates the private key but does not display it on

the

screen.

Figure 7-21: Save private key and passphrase
