EN - 8
3 Product description CAT 3
Load 24 VDC / max. 100 mA
Tab. 4 Micro switch

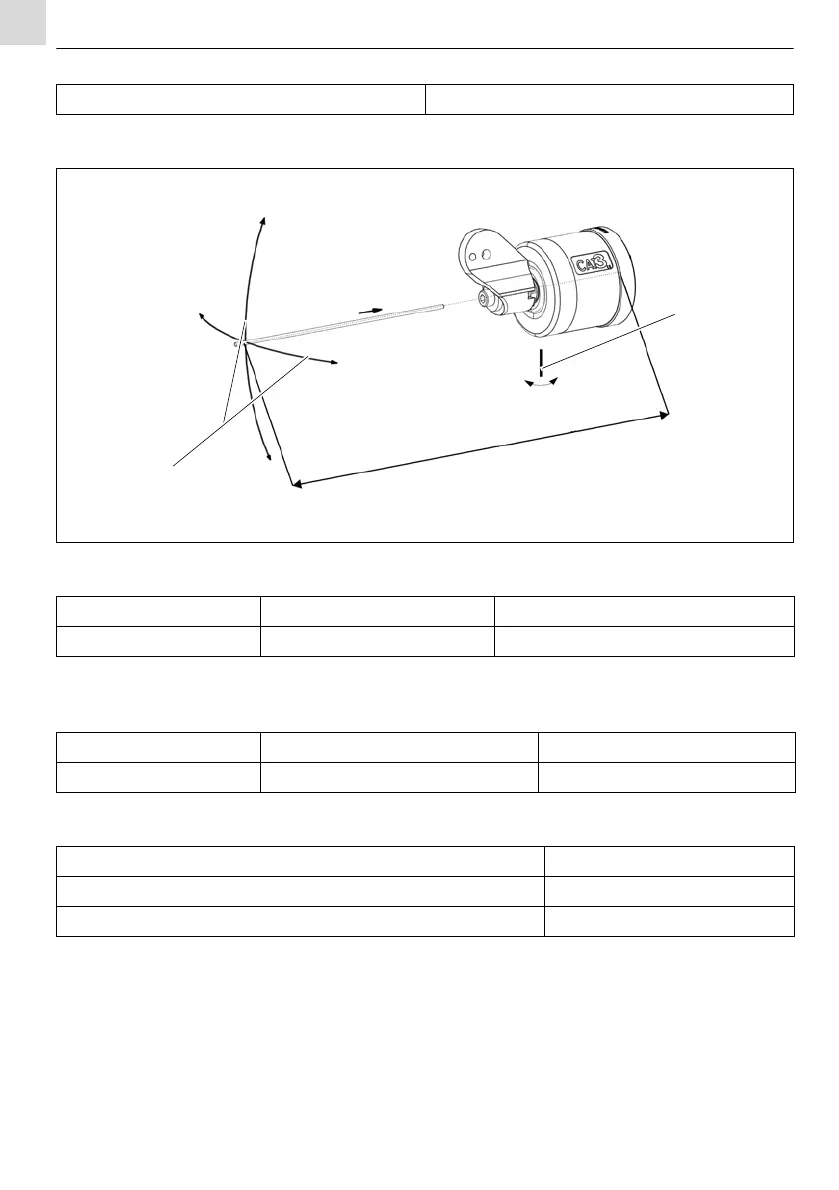

1 Triggering moment 2 Triggering force X, Y
Fig. 3 Technical data
Switching point Deflection in X and Y direction Approx. 9-11 mm (Approx. 1.4-1.7°)
1
Deflection in Z direction Approx. 1.3-1.6 mm
Tab. 5 Triggering the emergency stop switch
1With a distance of 400 mm
In direction of the X axis and Y axis 7° (45 mm)
Z axis 5.0 mm
Tab. 6 Maximum possible deflection
With pressure spring "M" 32 N
With pressure "L" 44 N
With pressure "XL" 71 N
Tab. 7 Triggering force, 400 mm
