Abicor Binzel CAT 3 - Page 29

EN - 9
CAT 3 3 Product description
With pressure spring "M" 11 N m
With pressure "L" 15 Nm
With pressure "XL" 25 Nm
Tab. 8 Triggering moment
1 CAT 3 XL 2 CAT 3 L 3 CAT 3 M

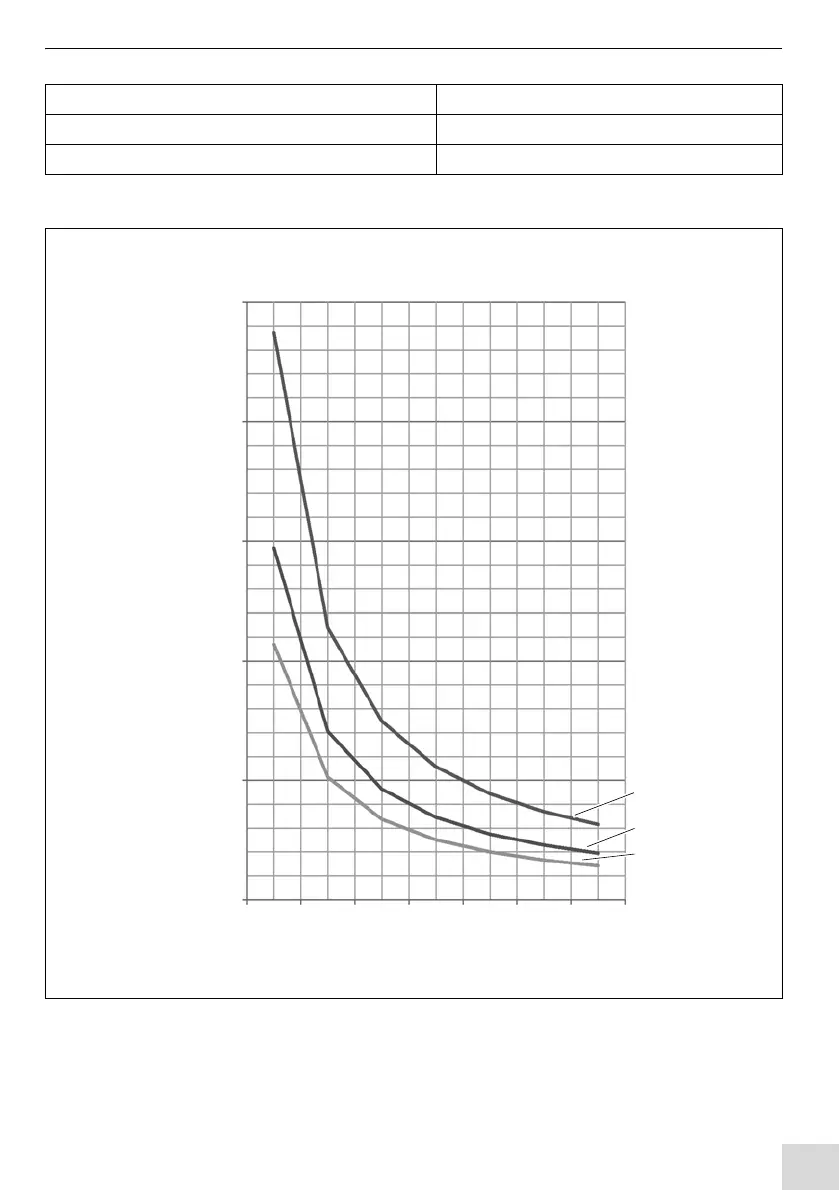

Fig. 4 Diagram
Triggering weight with a maximum robot
acceleration of 5m/s
2
Triggering weight [kg]
Distance from the robot flange [mm]
0.00
5.00
10.00
15.00
20.00
25.00
100
200
300
400
1
2
3
