| Installation – Electrical connection of the wallbox
12

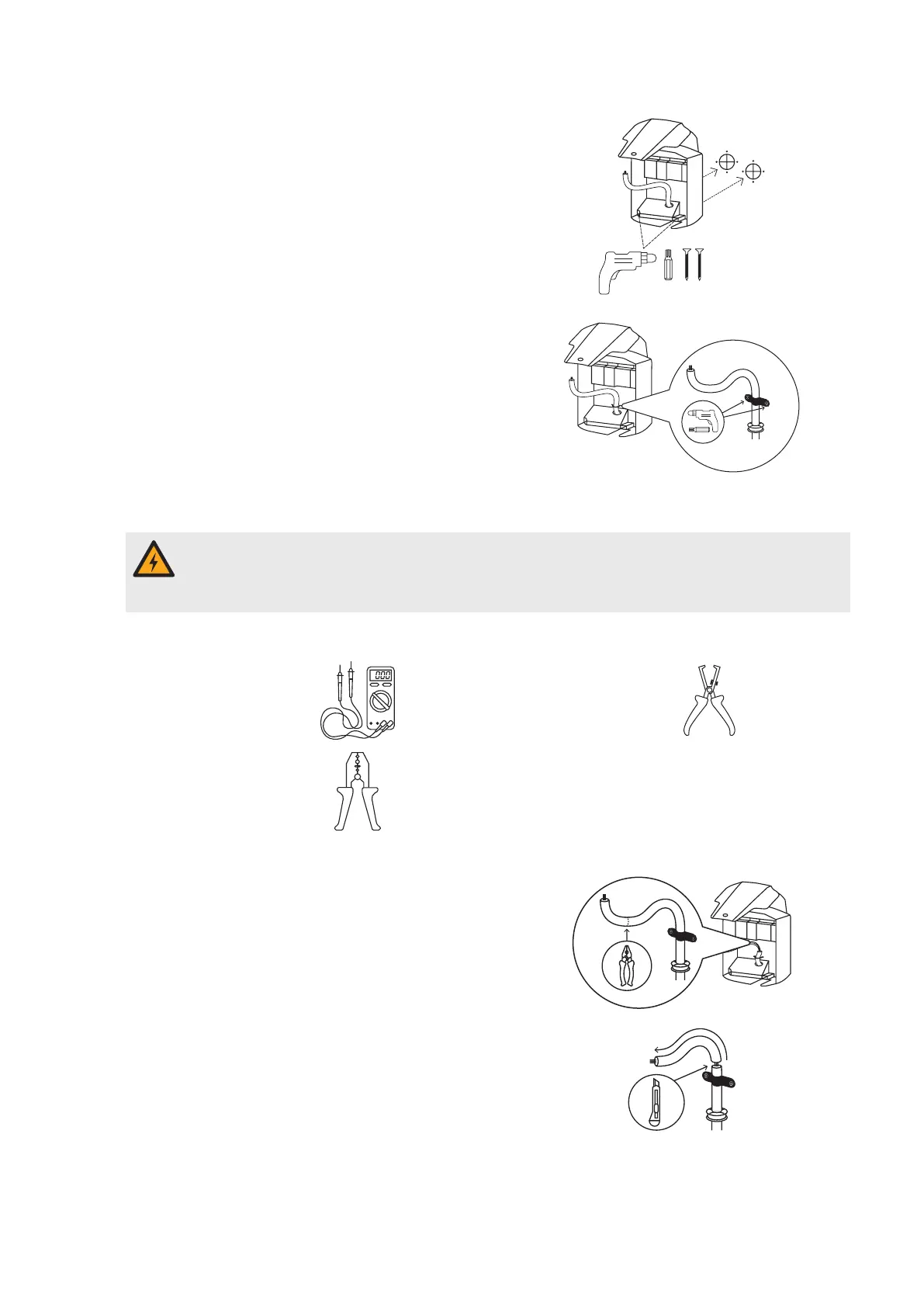

15 Using the power drill and bit, fix the housing base
to the two lower mounting points with the two
countersunk screws.
y Select a torque that will not distort the housing
base.
16 Using the electric drill and suitable bit, secure the
power supply cable in the internal strain relief.
Electrical connection of the wallbox
Electrical connection must be carried out by a qualified specialist electrical contractor.
Ensure that the power supply cable remains disconnected from the electricity grid.
Deactivate the RCCB in the wallbox and/or in the domestic power supply.
For electrical installation, you will need the following additional tools:
Voltmeter Wire stripper
Crimp tool
Proceed as follows to connect the wallbox to the power supply cable:
1 Cut the supply cable to the required length with
the pliers.
2 Make an incision into the oversheath and screen
of the power supply cable with the utility knife
and strip back the insulation.
