| Charging procedure – Charging an electric vehicle
16
Charging procedure
After installation and configuration, the eMH1 is ready for operation immediately, and can now be used to charge an
electric vehicle.
Charging an electric vehicle
To charge an electric vehicle, proceed as follows:
1 Park your electric vehicle so that its charging inlet can be easily reached with the charging cable's charging
connector:

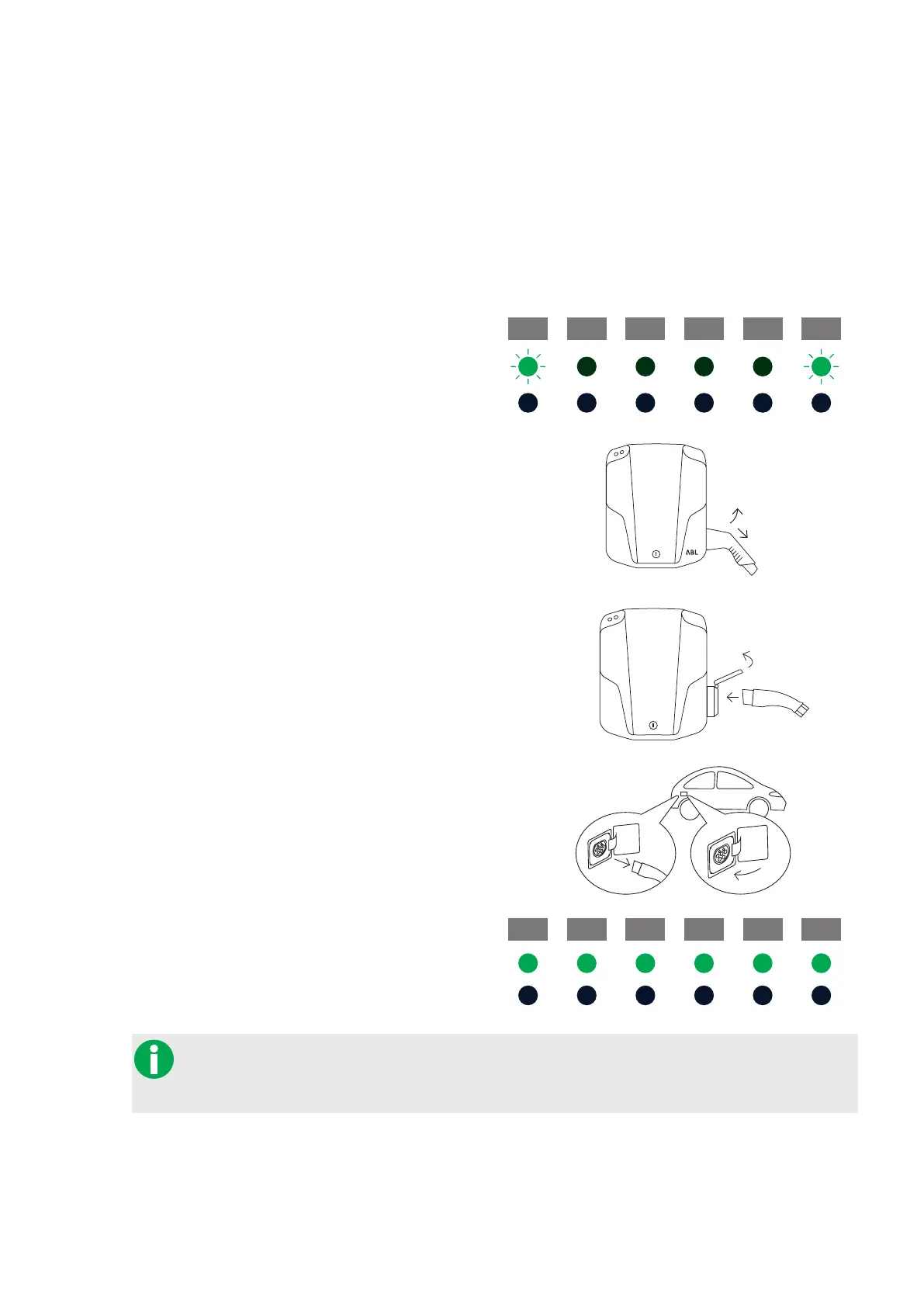

2 Check the LEDs on the wallbox:
y When the wallbox is ready for operation, the
green LED will flash every 5 seconds, while
the blue LED will be OFF.
1 sec 1 sec 1 sec 1 sec 1 sec 1 sec
3 Prepare the charging cable of the wallbox.
y Fixed cable variant Type 2
Slightly lift up the charging connector and pull
it downwards from its compartment.
y Socket variant Type 2
Open the charging socket flap and plug in the
charging connector.
4 Open the charging inlet at the vehicle and plug in
the charging connector.
5 Check the LEDs on the wallbox:
y If the wallbox is waiting for authorisation of
the charging procedure by the electric vehicle,
the green LED is ON while the blue LED is OFF.
1 sec 1 sec 1 sec 1 sec 1 sec 1 sec
The charging procedure will only start when
the vehicle has been connected
the vehicle's charging timer is activated
