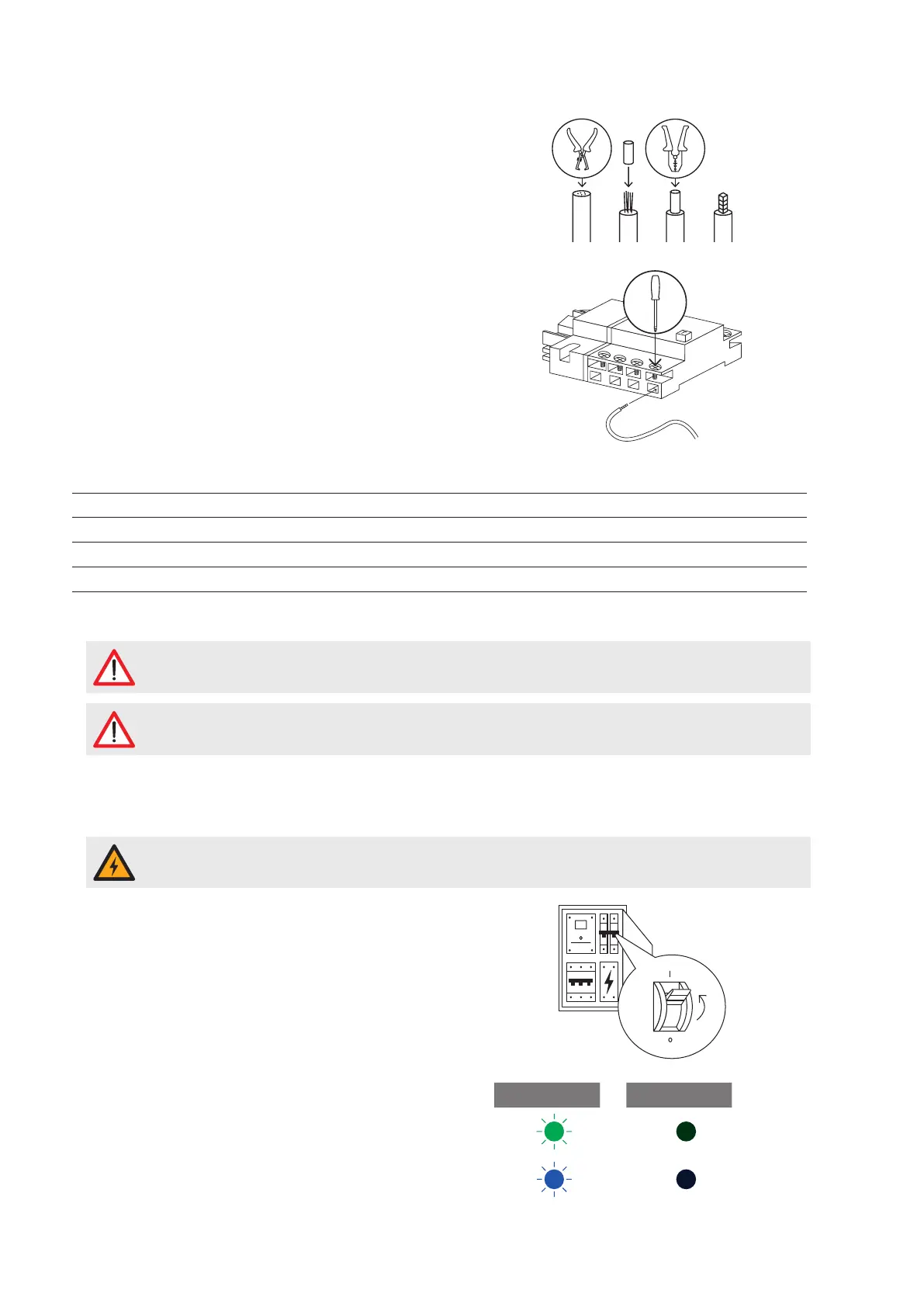

3 Using the wire stripper, strip the individual con-
ductors, fit end ferrules onto the wires and crimp
them on using the crimp tool.
4 Insert the individual conductors of the power
supply cable into the respective terminals of the
RCCB and tighten them using the screwdriver.
y Use the connection pattern below to allocate
the individual conductors.
Designation Conductor color Marks for Phase system
Phase 1 current-carrying conductor Brown L1 Single phase / 3-phase
Phase 2 current-carrying conductor Black L2 3-phase
Phase 3 current-carrying conductor Gray L3 3-phase
Neutral Blue N Single phase / 3-phase
Protective earth Green-Yellow PE Single phase / 3-phase
Please note that the colour-coding convention used above is not internationally standardised.
Please ensure that the conductors that are pre-fixed to the RCCB terminals remain attached correctly
after connecting the power supply cable.
Commissioning the wallbox
To commission the wallbox, the power supply cable must be connected to the electricity grid.
The following working steps must be carried out with the utmost care: There is a risk of electric shock if
conductive components are touched.
1 Switch on the MCB in the domestic power distri-
bution box.
y As soon as the wallbox is connected to the
electricity grid, it will initiate the start-up
procedure.
Both LEDs flash and then turn off.
