ABL WALLBOX eMH1 - Introduction to the Wallbox Emh1; Identifying Your Wallbox; Components Included with the Wallbox

| Introduction to the Wallbox eMH1 – Identifying your wallbox
6
Introduction to the Wallbox eMH1
The Wallbox eMH1 is available in model variants with different charging outputs, which are optionally equipped with
fixed charging cables with Type 2 charging connector, or with an integrated Type 2 charging socket. Further informa-
tion on technical data are available in the appendix from page 25.

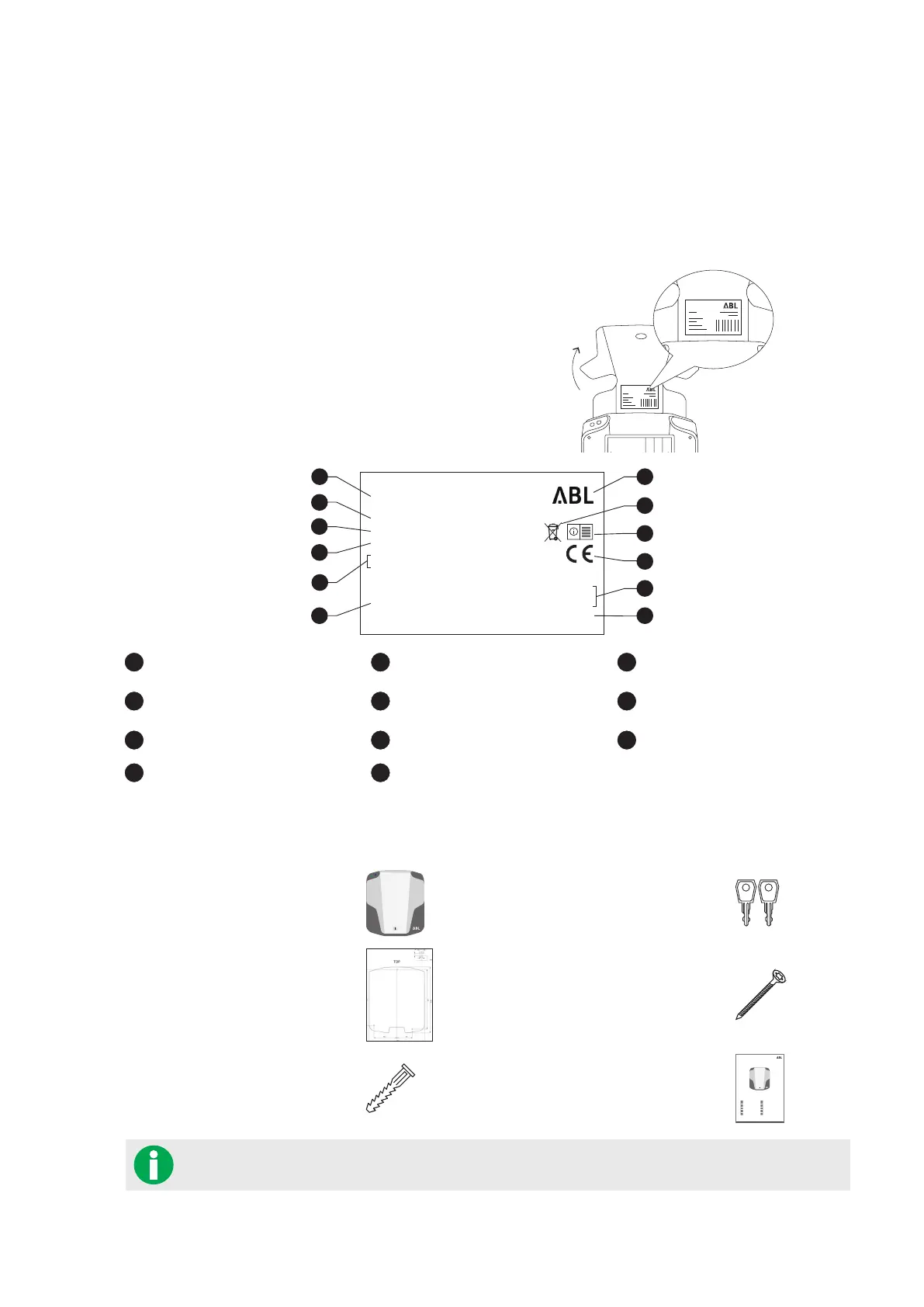

Identifying your wallbox
The model variant of the Wallbox eMH1 can be unambig-
uously identified on the rating plate located on the inside
of the housing cover. Before beginning with installation,
open the housing cover and check the rating plate for the
information listed below.
The following information is especially relevant:
 Model number
 External power supply
A
Model number
E
Standards
I
CE label
B
Power supply (voltage, fre-
quency, current)
F
Country of manufacture and
manufacturer
J
Barcode/serial number
C
Operating temperature
G
Disposal advice
K
Date printed
D
IP rating
H
'Read instructions' advice
Components included with the wallbox
The product is delivered including the following components:
 Wallbox eMH1, 1pc  Key, 2pcs
 Drilling template, 1pc
 T20 countersunk screw,
5×60mm, 3pcs
 Wall plugs 8×40mm, 3pcs
 Safety notices & quick start
guide (multilingual), 1pc
Artikelnummer: 0301800_a
Wallbox eMH1
DE
Sicherheitshinweise
Kurzanleitung
FR
Consignes de sécurité
Guide de prise en main
DK
Sikkerhedsanvisninger
Kort vejledning
IS
Öryggisleiðbeiningar
Stuttur leiðarvísir
EN
Safety information
Quick Start Guide
IT
Avvertenze di sicurezza
Brevi istruzioni
ES
Indicaciones de seguridad
Guía rápida
NO
Sikkerhetsanvisninger
Hurtigreferanse
FI
Turvallisuusohjeet
Pikaopas
SE
Säkerhetsanvisningar
Snabbguide
Check immediately after unpacking whether all components are included: should any components be
missing, please immediately contact the dealer from whom you purchased the wallbox.
