Charging procedure – Charging an electric vehicle |

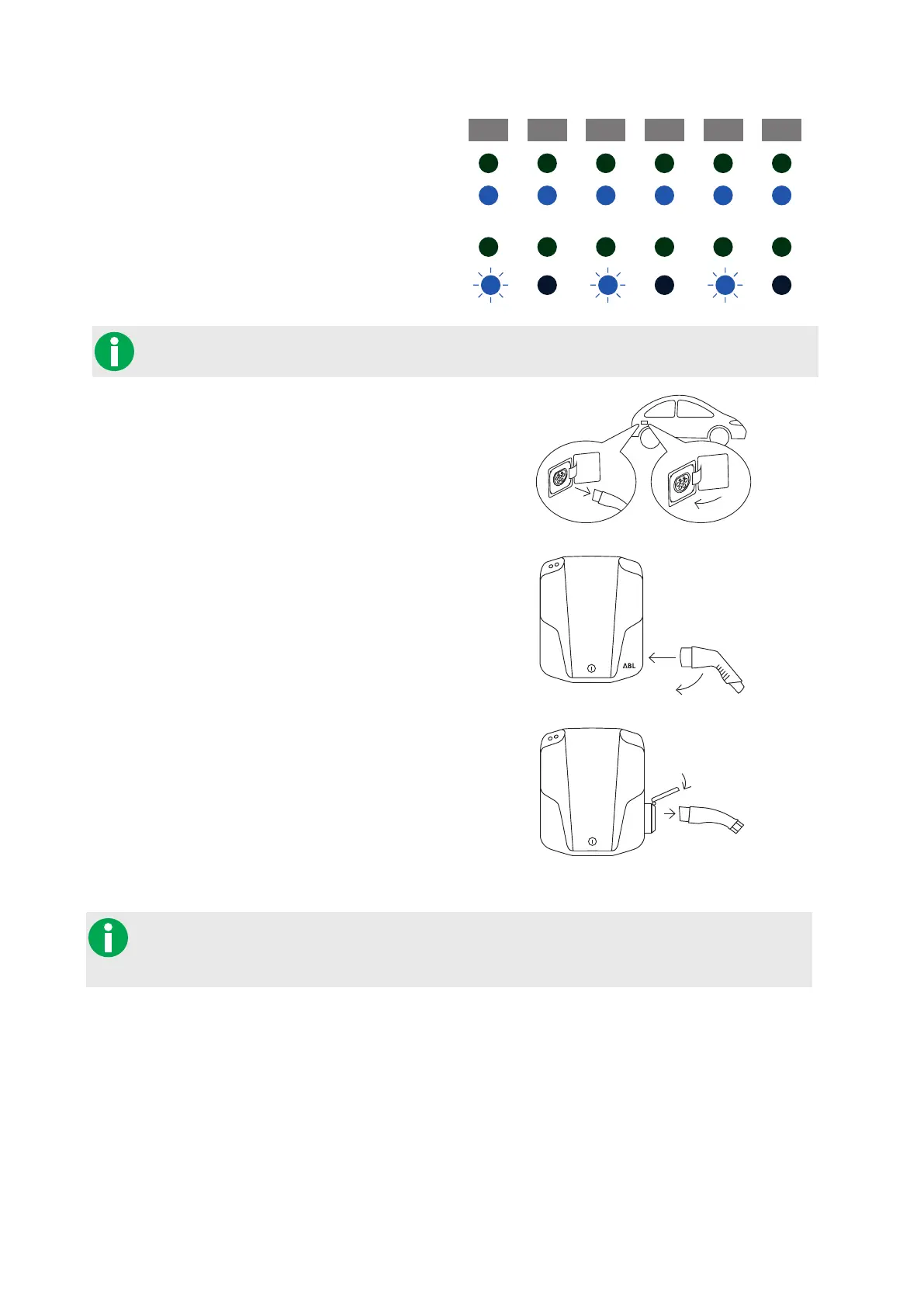

6 Check the LEDs on the wallbox:

y While the charging procedure is active, the

blue LED will be continuously ON and the

green LED will be OFF.

y When the charging procedure has been com-

pleted or interrupted, the blue LED will flash

every 2 seconds while the green LED will be

OFF.

1 sec 1 sec 1 sec 1 sec 1 sec 1 sec

The charging procedure can be interrupted manually at the vehicle. Otherwise, the charging procedure is

automatically terminated by the vehicle upon completion.

7 Unplug the charging connector from the electric

vehicle's charging inlet and close it.

8 Store the charging cable ready for the next

charging procedure.

y Fixed cable variant Type 2

Replace the charging connector in its storage

compartment.

y Socket variant Type 2

Unplug the charging connector from the

charging socket and store the charging cable:

the charging socket flap closes automatically.

This completes the charging procedure.

 Fixed cable variant: you can wind the charging cable closely around the wallbox to reduce trip

hazards.

 Socket variant: roll the charging cable up tightly and store it in the vehicle or near the wallbox.
