| Installation – Tools and accessories required
14
Ideally, the installation site should provide a ready connection
to the electricity grid. Otherwise, a separate power supply cable
must be installed.
In order to operate group installations, suitable data cables must
also be installed in the installation site (see also "Preparing and
fixing the wallbox in place" on page16 as well as "Data cable
connections" on page19).
Tools and accessories required

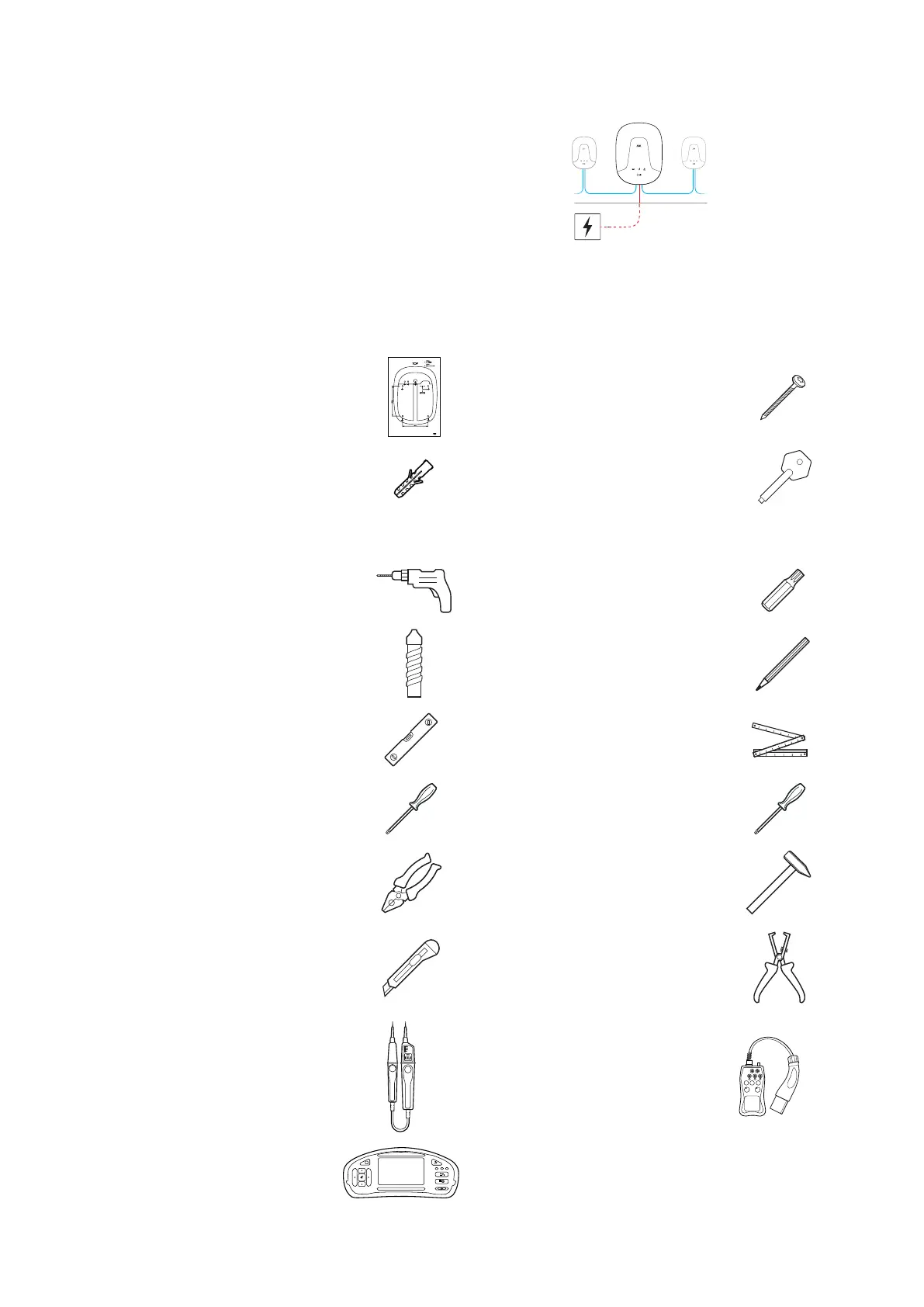

For mechanical installation, you will need the following components included with the wallbox:
Drilling template, 1pc
T20 panhead screws,
6×60mm, 4pcs
Wall plugs 8×40mm, 4pcs Housing cover key, 1pc
In addition, you will need the following tools:
Electric drill Bit (Torx T20)
8 mm ∅ drill bit suitable
for the respective mounting
surface
Pencil
Spirit level Tape measure
Screwdriver (Phillips head) Screwdriver (Torx)
Pliers Hammer
Utility knife Wire stripper
Voltage tester Vehicle simulation adapter
N PE
L1 L2 L3
Multi-purpose installation
tester
