Configuring the Wallbox eMH2 – Set-up via the Charge Point Administration application |
31
NOTE
Data cabling via LOMK218
All Wallboxes eMH2 with spring terminals can also be connected to a computer using the cable set LOMK218.
You can find further information on this topic in section "Data cabling via LOMK218" on page55.
Controller Wallbox eMH2 with E2I interface
(from mid-2021)

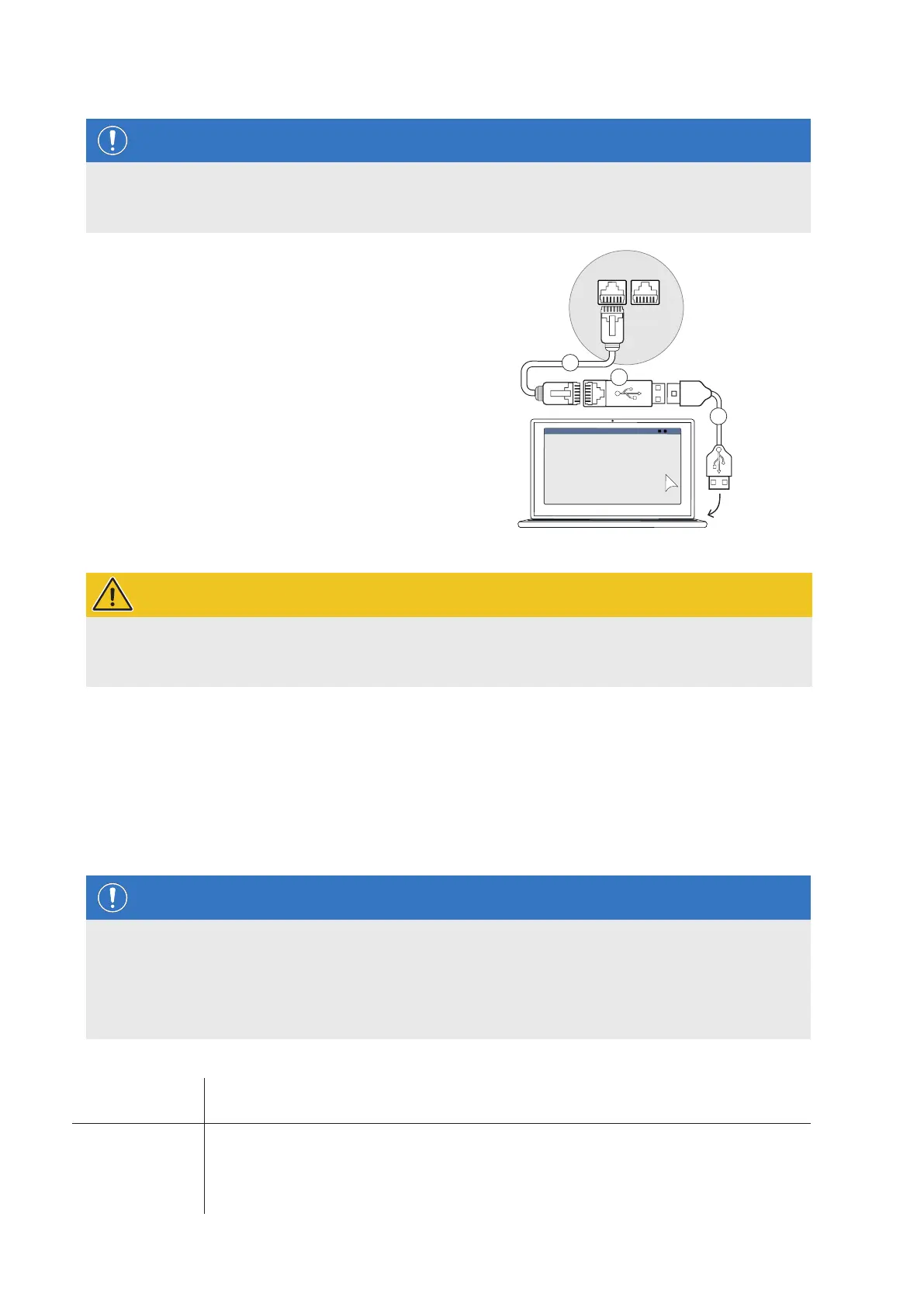

1 Open the housing cover of the Controller wallbox and
remove the electronics component cover as described
in section "Preparing and fixing the wallbox in place"
on page16.
2 Connect the patch cable5 to one of the RJ45 ports
of the E2I interface located to the left of the MCB and
RCCB.
3 Connect the USB extension cable1 to one of the
computer's USB ports.
4 Use the USB to RJ45 adapter2 to connect the patch
cable5 to the USB extension cable1.
The wallbox is now connected to the computer by cable.
ABL – Configuration Software
1
2
5
WARNING!
Data cabling using CONFCAB
Only use the cables and adapters contained in the CONFCAB kit to connect your Wallbox eMH2 to the computer.
Otherwise, faultless communication cannot be guaranteed.
You can now start setting up the wallboxes using the ABL Configuration Software . For this purpose, download the
current version of the software, and follow the instructions in the manual, which is embedded in the software and
also contained in the installation folder:
https://www.ablmobility.de/en/download-neue-configuration-software.php
Set-up via the Charge Point Administration application
After all Extender wallboxes have been configured, the entire Controller-Extender system can be set up for operation
using the Charge Point Administration online application.
NOTE
Updating the application
The working steps described below refer to version 1.7 of the Charge Point Administration application.
 Please check in advance which version is installed on your system and ensure that you update to version 1.7
or higher.
 The instructions included in the installation package describe step by step how to perform the update.
The application offers a role-based concept that restricts the editing of selected parameters.
 Owner
The Owner may view all information about the application and the installed charging stations,
perform updates and set up data communication in the system.
 Installer
The Installer makes fundamental changes to the system properties.
This person must therefore be a qualified electrician, who, on the basis of their specialist
training and experience, as well as their knowledge of the relevant regulations, can assess
and carry out the working steps described in this manual and recognise potential hazards.
