| Installation – Preparing and fixing the wallbox in place
16

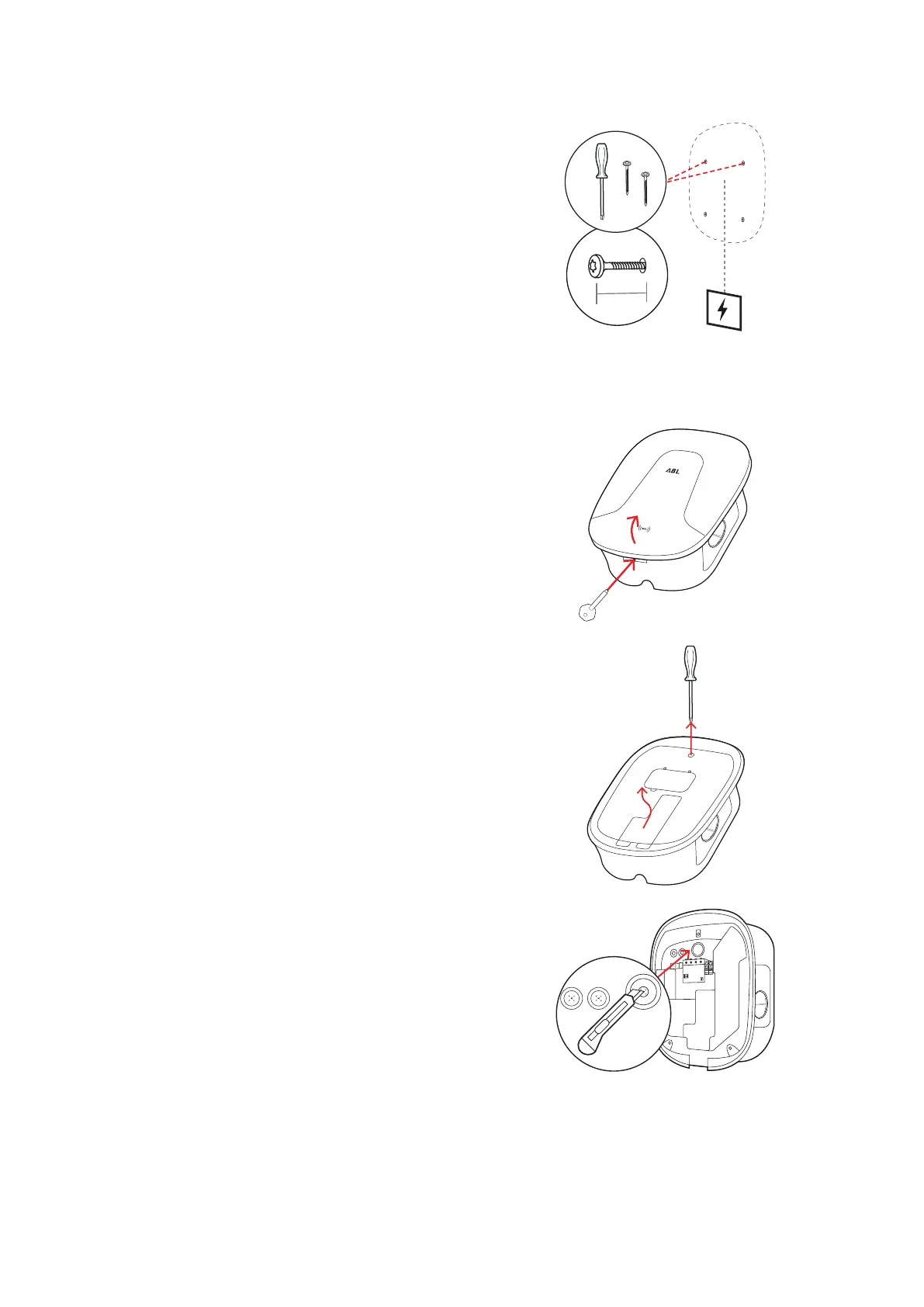

6 Insert two of the included panhead screws into the
two upper fixing points using the screwdriver (Torx)
or the electric drill and Torx bit.
y The distance between screw head and wall must
measure 4mm.
4 mm
Preparing and fixing the wallbox in place
Continue to prepare the wallbox:
7 Open the housing cover of the wallbox with the
housing cover key and put it aside.
8 Loosen the screw of the internal electronic compo-
nents cover using the screwdriver (Torx) and put it
aside.
y Keep the screw in a safe place.
9 Use the utility knife to cut an opening for the pow-
er supply cable into the large rubber grommet in the
housing base.
y For wiring up group installations, you must also
make cuts into the two smaller grommets for the
data cables (see "Data cable connections" on
page19).
