Configuring the Wallbox eMH2 – Completing the set-up |

Completing the set-up

After setting up communication with the backend, the group installation is complete.

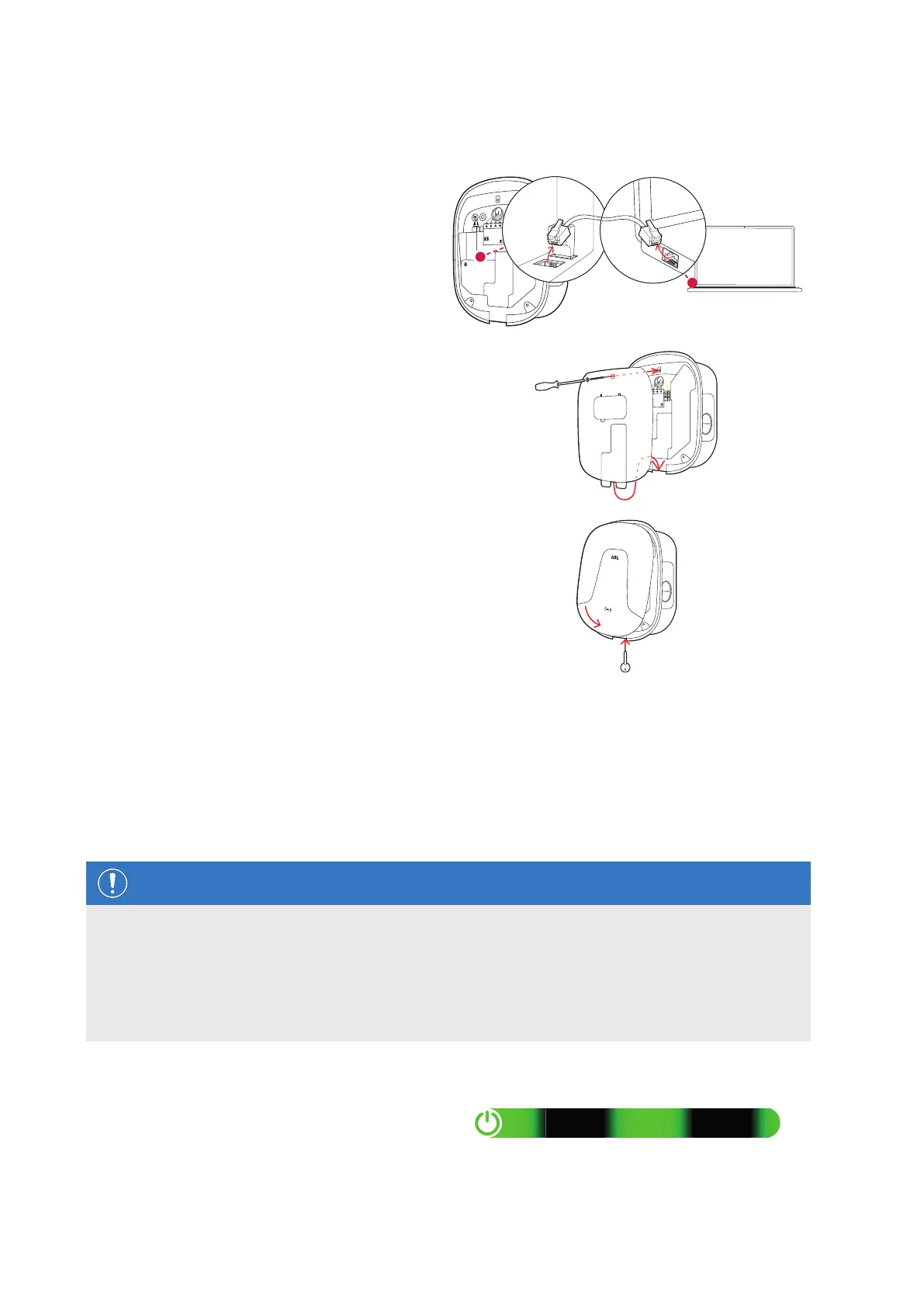

1 Close the Charge Point Administration applica-

tion via the browser window.

2 Disconnect the computer from the wallbox by un-

plugging the RJ45 data cable from the SBC of the

Controller charging station (and the computer).

3 Replace the electronic components cover onto the

housing base and fix it into place with its proper

screw.

4 Hook the housing cover onto the upper edge of the

housing base and lock it using the housing cover

key.

Manual RFID card administration

For all other Wallboxes eMH2 (except product bundles), the E017869 package of 5 ID tag cards is available, which

can be configured for use as a teach-in card (1 pc) and RFID user cards (4 pcs) using the ABL Configuration Soft-

ware.

Using the teach-in card, ID tag cards can be registered on the user list of the wallbox, and then used to authorise

charging procedures. In addition, the user list of the wallbox can be reset, and all previously registered ID tag cards

can be deleted using the teach-in card.

NOTE

Administering RFID cards via the ABL Configuration Software

Before use, you must set up one of the cards from the E017869 as a teach-in card using the ABL Configuration

Software.

 Setting up the ID tag cards from the accessory set E017869 is carried out in the Individual configuration

> Advanced configuration > Access control via RFID tab of the ABL Configuration Software, and is

described in the accompanying manual.

Proceed as follows to register an ID tag card manually at the wallbox:

1 Ensure that the wallbox is switched on and ready

for operation.

y When the wallbox is ready for operation, the

green LED pulsates.
