| Configuring the Wallbox eMH2 – Manual RFID card administration
40

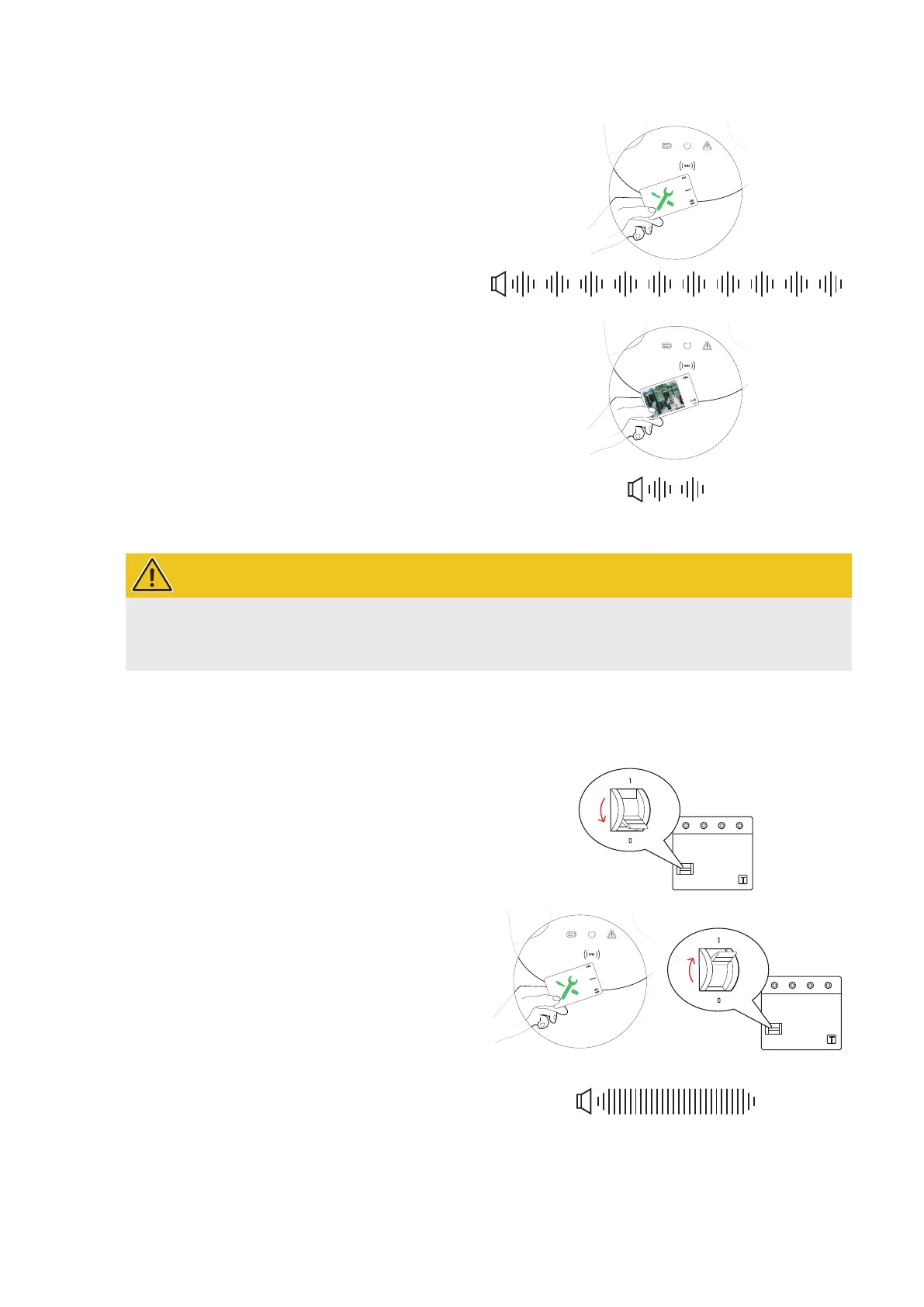

2 Hold the teach-in card in front of the RFID icon on
the housing cover.
y If the teach-in card is accepted, the Wallbox
eMH2 will emit 10 short acoustic signals.
y The teach-in card can now be removed.
3 Now, hold a not previously registered ID tag card in
front of the RFID icon on the housing cover within
10seconds.
y If the Wallbox eMH2 emits two short acoustic
signals, the ID tag card has been registered and
can be removed.
You can repeat steps 2 and 3 in order to register further ID tag cards on the wallbox's user list.
WARNING!
RFID module error message
If an ID card tag is already registered on the user list, or if no further cards can be registered in the memory of
the wallbox, the Wallbox eMH2 will emit one sustained acoustic signal (ca. 1 second long).
If required, you can reset the user list saved in the wallbox in order to prevent authorisation of previously registered
user ID cards.
Proceed as follows to reset the currently saved user list of a wallbox:
1 Disconnect the wallbox from the power supply.
y Flip the pivot lever of the internal RCCB or MCB
to the 0 position.
2 Hold the teach-in card in front of the RFID icon on
the housing cover and then reconnect the wallbox
to the power supply.
3 Hold the teach-in card in front of the RFID icon
while the wallbox emits one sustained acoustic sig-
nal (ca. 3seconds long).
y Then remove the teach-in card.
The wallbox's user list has now been deleted. To obtain authorisation via the RFID module, new ID tag cards must be
registered.
