Appendix – Drilling template |
57
Drilling template

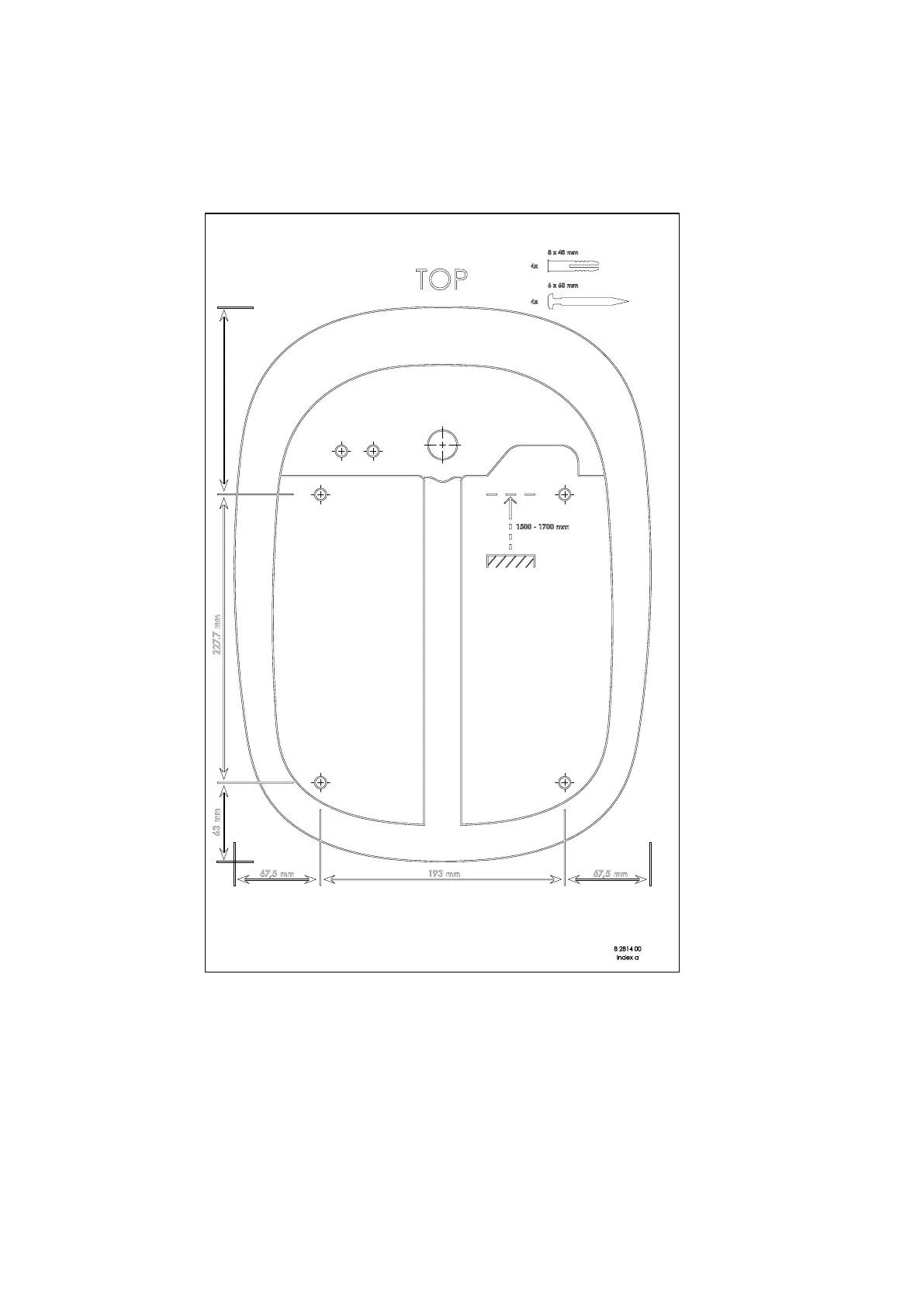

The Wallbox eMH2 comes with a drilling template (see illustration below) for marking the fixing points. Should the
drilling template have been lost, you can obtain the drilling dimensions from the illustration below.
193 mm
67,5 mm67,5 mm
63 mm 227.7 mm 146.3 mm
