Error resolution and maintenance – Testing the RCCB |

Testing the RCCB

To ensure the continuing safe operation of the wallbox, the function of the RCCB must be tested regularly according

to locally applicable regulations (e.g. every 6months in Germany): For this purpose, the RCCB has a push button with

which to initiate the test function.

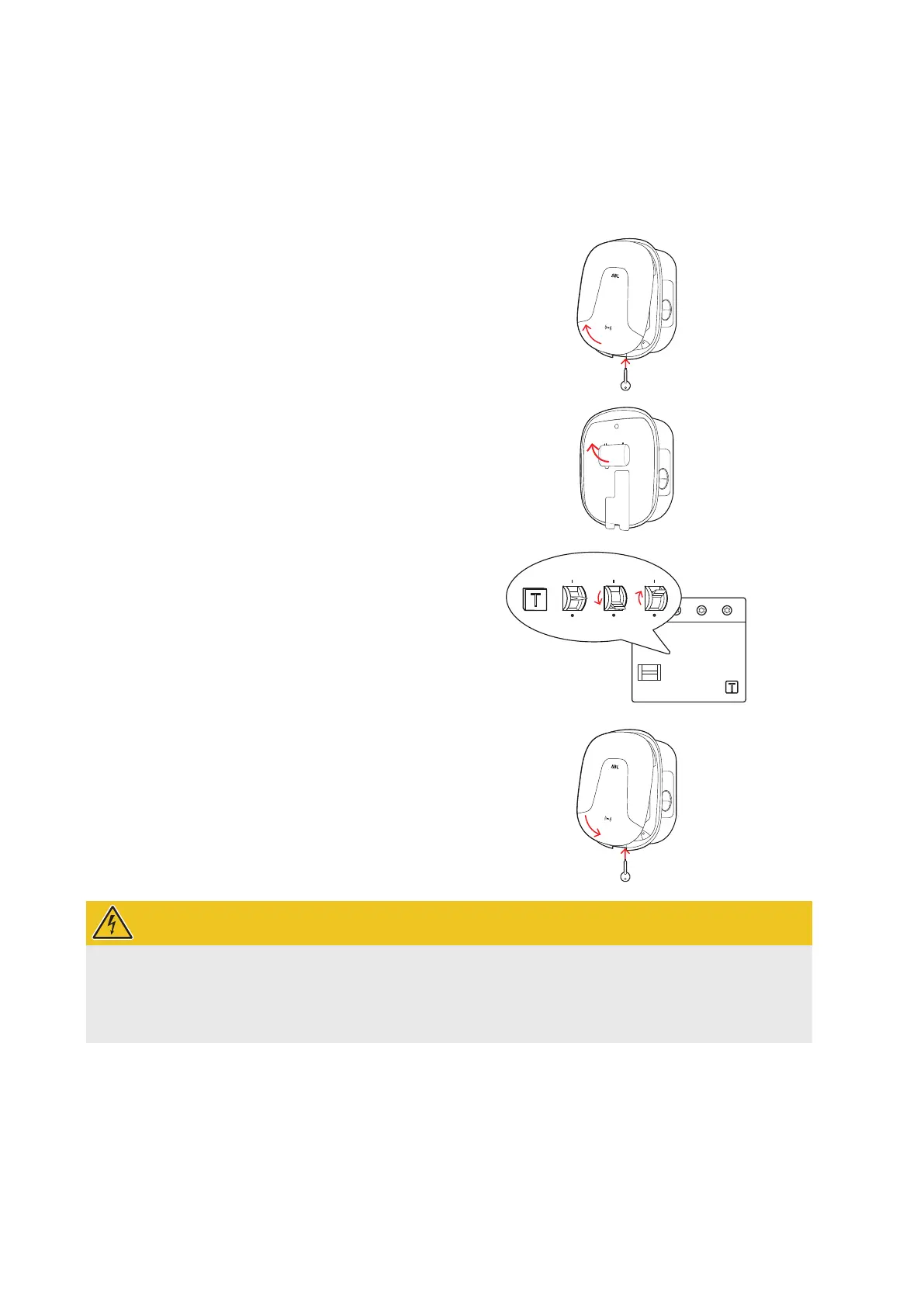

Proceed as follows to test the RCCB:

1 Open the housing cover of the wallbox with the

housing cover key and put it aside.

2 Open the access flap of the internal electronic com-

ponents cover.

3 Locate and press the push button engraved T or

marked Test.

y The RCCB must now trip and flick its pivot lever

into the centre position.

4 Now flip the pivot lever first to the 0 position and

then back to the I position.

5 Close the access flap, hook the housing cover onto

the upper edge of the housing base and lock it using

the housing cover key.

DANGER!

Dangerous electrical currents

Should the RCCB malfunction during testing, you must not continue to operate the wallbox under any circum-

stances!

 Contact a qualified specialist electrical contractor to have the error resolved.
