takIng Into operatIon and chargIng procedure

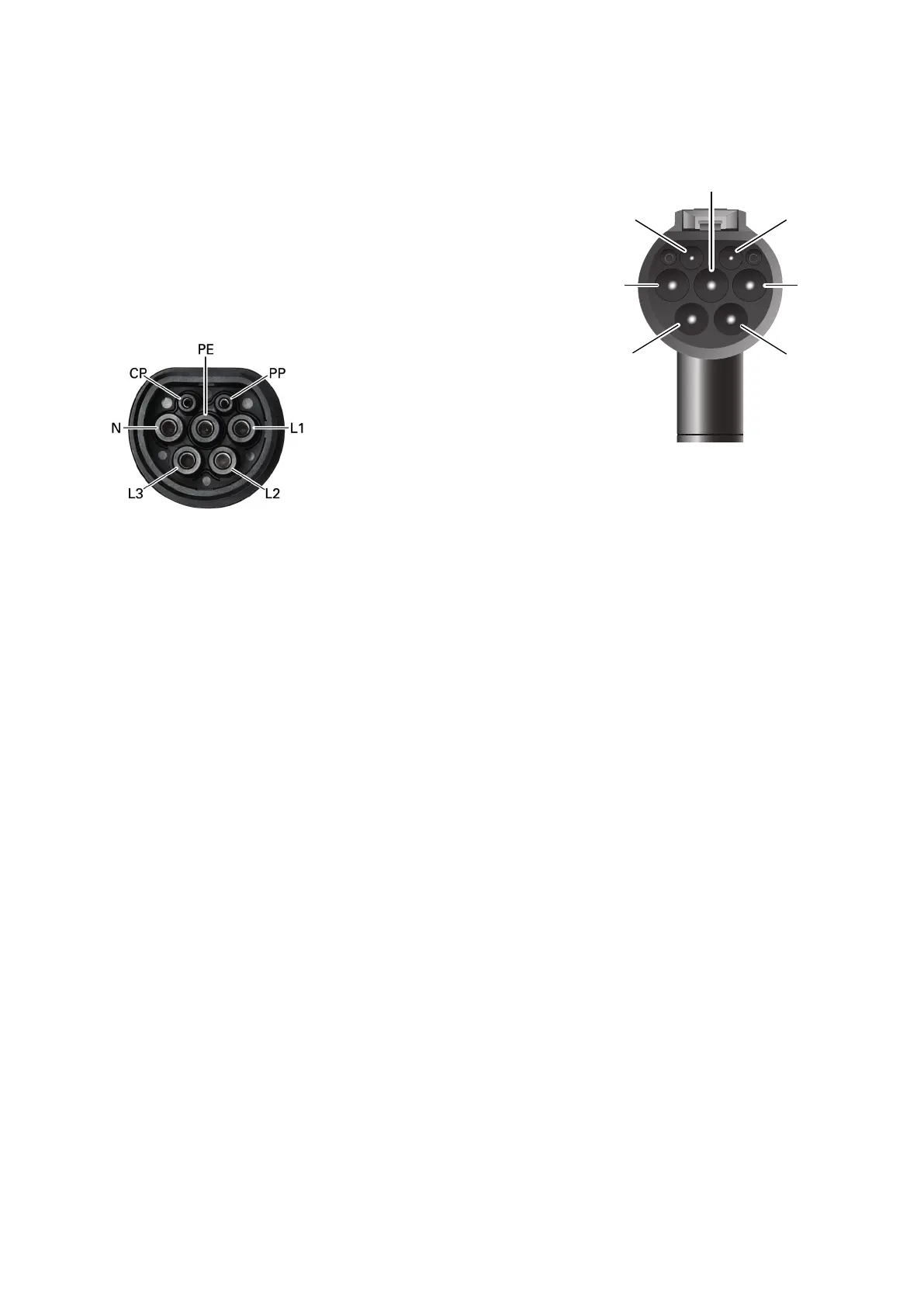

The charging connector or charging sockets of the eMH3

have three current-carrying contacts, a neutral conductor, a

PE protective earth conductor as well as two signaling con-

tacts (Control Pilot and Proximity Pilot), which ensure a se-

cure connection and therefore the safe operation of the

wallbox.

Charging sockets have an electromechanical locking mech-

anism that secures the charg-

ing plug in place as soon as the

charging cable is connected to

both the wallbox and the vehi-

cle. As long as the plug of the

external charging cable is not locked into place in the charg-

ing socket of the eMH3, the charging process cannot be

initiated and no voltage will be applied from the socket to

the charging cable via the current-carrying contacts.

Safety information for taking the wallbox into operation

Before you take the eMH3 wallbox into operation, you must observe the following

safety notices:

• Ensure that the eMH3 is connected to the domestic power supply according to the

instructions in this manual and the separately available installation manual.

• Ensure that the eMH3 is protected separately in your domestic power distribution

box by suitable miniature circuit breakers (MCB, C characteristic).

• Ensure that any integrated upstream residual current circuit breakers (RCCB, if pres-

ent) in the wallbox are switched on.

• Ensure that the eMH3 has been mechanically installed according to the instructions

in this manual: Check especially that access to the wallbox is unobstructed, that it is

not exposed to direct sunlight or rain and that the electric vehicle can be connected

without any strain or other encumbrance on the charging cable.

• Ensure that the housing cover of the eMH3 is always closed and locked during op-

eration.

• Ensure that the integrated or separately available charging cable is not twisted and

check that cable, connector and housing do not show any observable damage.

Operating instructions

• The separately available charging cables (all model variants except 3W2205) are ca.

4 meters long to offer a ﬂexible connection between wallbox and vehicle. In prac-

tice, it is advisable to remove the charging cable after each charging process.

CPPP
