takIng Into operatIon and chargIng procedure
17
Charging procedure
The eMH3 is engineered for the fastest possible charging of your vehicle according to
IEC 61851-1 Mode 3. The actual charging time depends on the battery fitted to your
vehicle as well as on the charge currently remaining in the vehicle: For these reasons
it is not possible to make a reliable prediction of the charging time. You will discover its
actual value in practice and derive your personal charging routine accordingly.
As described on the previous pages, eMH3 models have an integrated RFID module
for authorizing charging procedures, which is factory pre-set to 'deactivated': For more
information on activating the RFID module, see the installation manual for the eMH3.
If the RFID module has been activated, the RFID icon located in the upper part of the
housing cover is for authorization using a suitable ID tag access card (included).
Please follow the following steps to charge your vehicle:

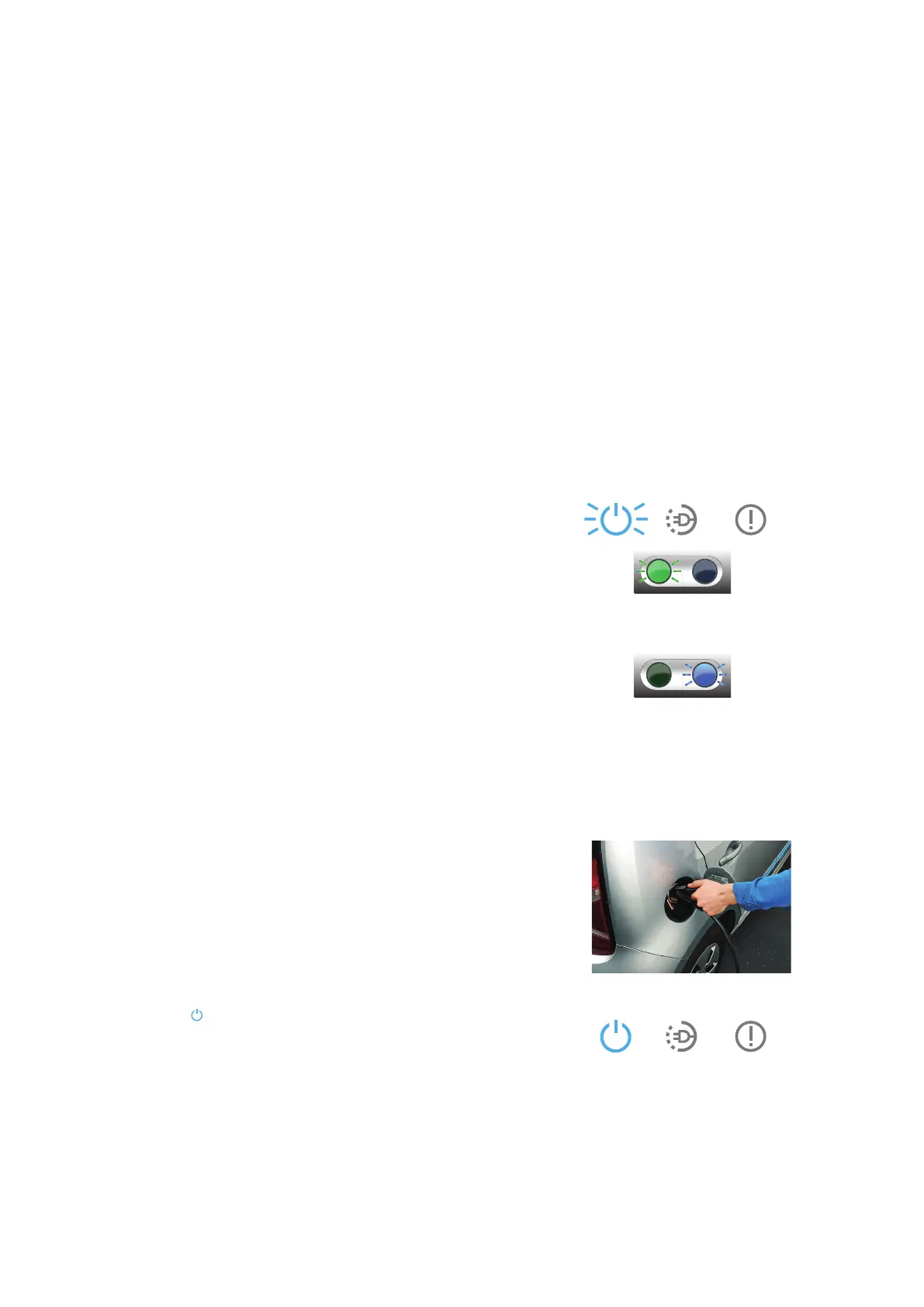

1. Check the LED indicators on the eMH3: When
the wallbox is ready for operation, the blue LED
charging unit indicator in the lower part of the
housing cover will flash, while the other LEDs
will be OFF.
The blue or green RFID module LED will flash
briefly every 5 seconds, while the other LED will
be OFF.
The vehicle may now be connected.
Green LED flashes every 5 sec., blue LED
is OFF
(access control disabled)
Green LED is OFF, blue LED flashes every 5
sec., (access control enabled)
2. Open the charging socket on the vehicle.
3. Remove the charging connector from the charging connector compartment (mod-
el 3W2205) or connect the separately available Mode 3 charging cable to one of
the charging sockets on the wallbox (all model variants with charging sockets).
4. Plug the charging connector of the charging ca-
ble (Type 2 or Type 1) into the vehicle’s charging
socket.
5. If the RFID module has been activated, the blue
LED is continuously ON when the vehicle is
connected and has been detected but the charg-
ing procedure has not yet been unblocked by via
RFID.
