ABL Wallbox eMH3 User Manual

takIng Into operatIon and chargIng procedure
15

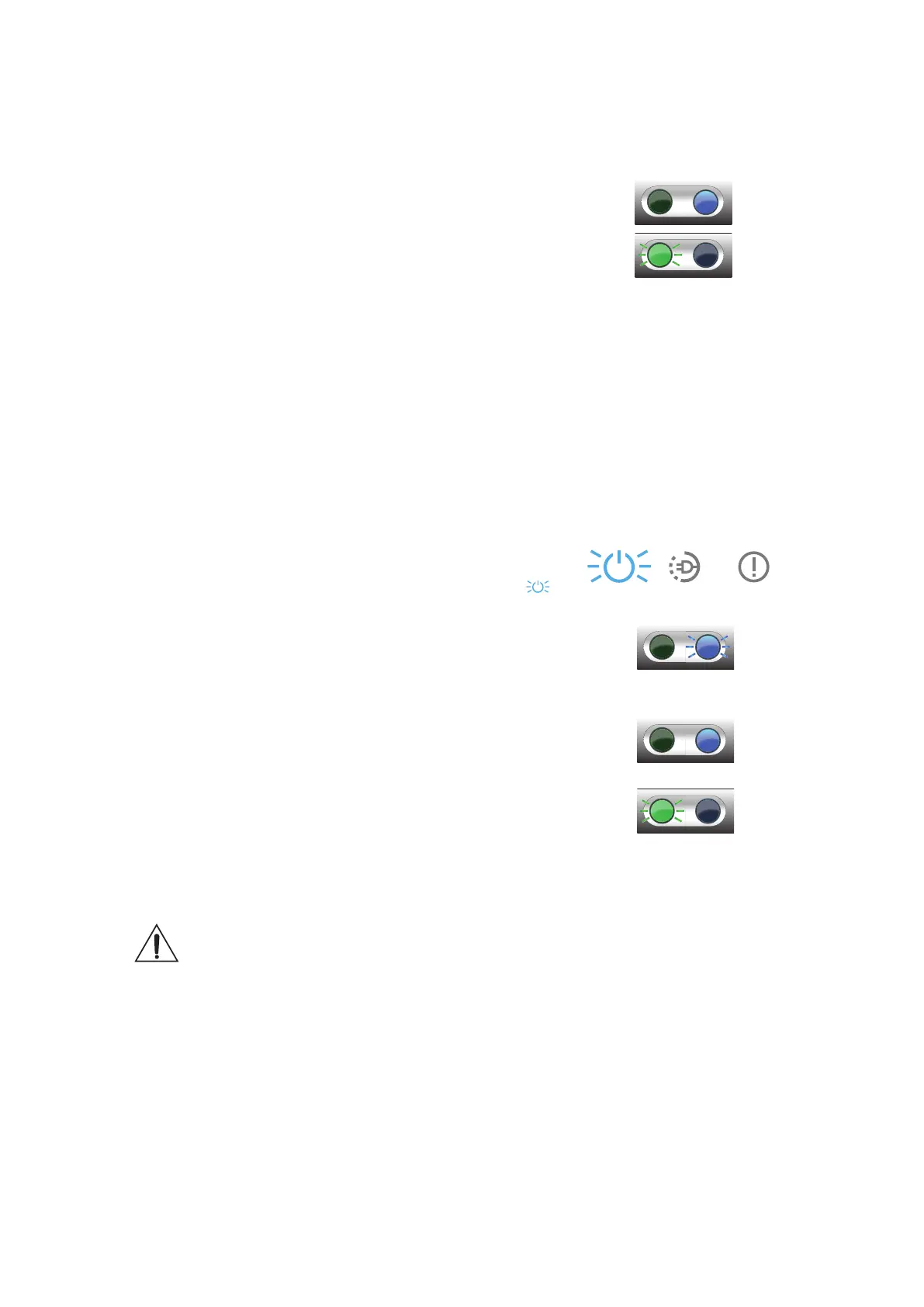

2. Place the Teach-In tag card in front of the RFID
module: The blue LED is ON.
3. When the green LED flashes twice, remove the
Teach-in card.
Green LED flashes twice, blue LED is OFF
Now the RFID module restarts. After restart, the charging function is reactivated.
Registering additional RFID cards
If the RFID module has been activated during or after installation (see installation
manual), you can register additional ID tag cards for your eMH3 wallbox in order to
extend the user group: You can obtain suitable MIFARE Ultralight® cards from your
local distributor. Proceed as follows to register an RFID access card on your eMH3:
1. Check the status of the eMH3 via the LEDs on
the lower part of the housing cover. When the
wallbox is ready for operation, the blue LED
will flash every 5 seconds.
Blue flashes every 5 seconds
2. Check the status of the RFID module via the
LEDs located on the upper part of the housing
cover: When access control has been activated,
the blue LED will flash every 5 seconds.
Green LED is OFF, blue LED flashes every 5
sec., (access control enabled)
3. Place the Teach-In tag card in front of the RFID
module: Remove the card when the blue LED is
ON.
Green LED is OFF, blue LED is ON
4. Now, place a not previously registered ID tag card
in front of the RFID module within 10 seconds:
The green LED now flashes once.
Green LED flashes once, blue LED is OFF
The ID tag card is now registered with the RFID module. Repeat this process to reg-
ister more ID tag cards with the RFID module.
WARNING!
If the ID tag card is already registered or no further cards can be registered
in the wallbox memory, both the green and the blue LED will flash continu-
ously.
Resetting RFID cards
If the RFID module has been activated during or after installation (see installation
manual), it may become necessary to reset RFID tag cards registered with the RFID
module (e.g. in order to program the RFID module with new access data using a dif-
ferent Teach-In card.

ABL Wallbox eMH3 Specifications

General

Model	eMH3
Manufacturer	ABL
Category	Automobile Battery Charger
Charging Power	22 kW
Number of Charging Points	1
Connector Type	Type 2
Installation	Wall-mounted
Communication	OCPP 1.6
IP Rating	IP54
Charging Current	32 A
Operating Temperature	-30°C to +50°C
Charging Power Options	Adjustable
Input Voltage	400 V
Output Voltage	400 V
